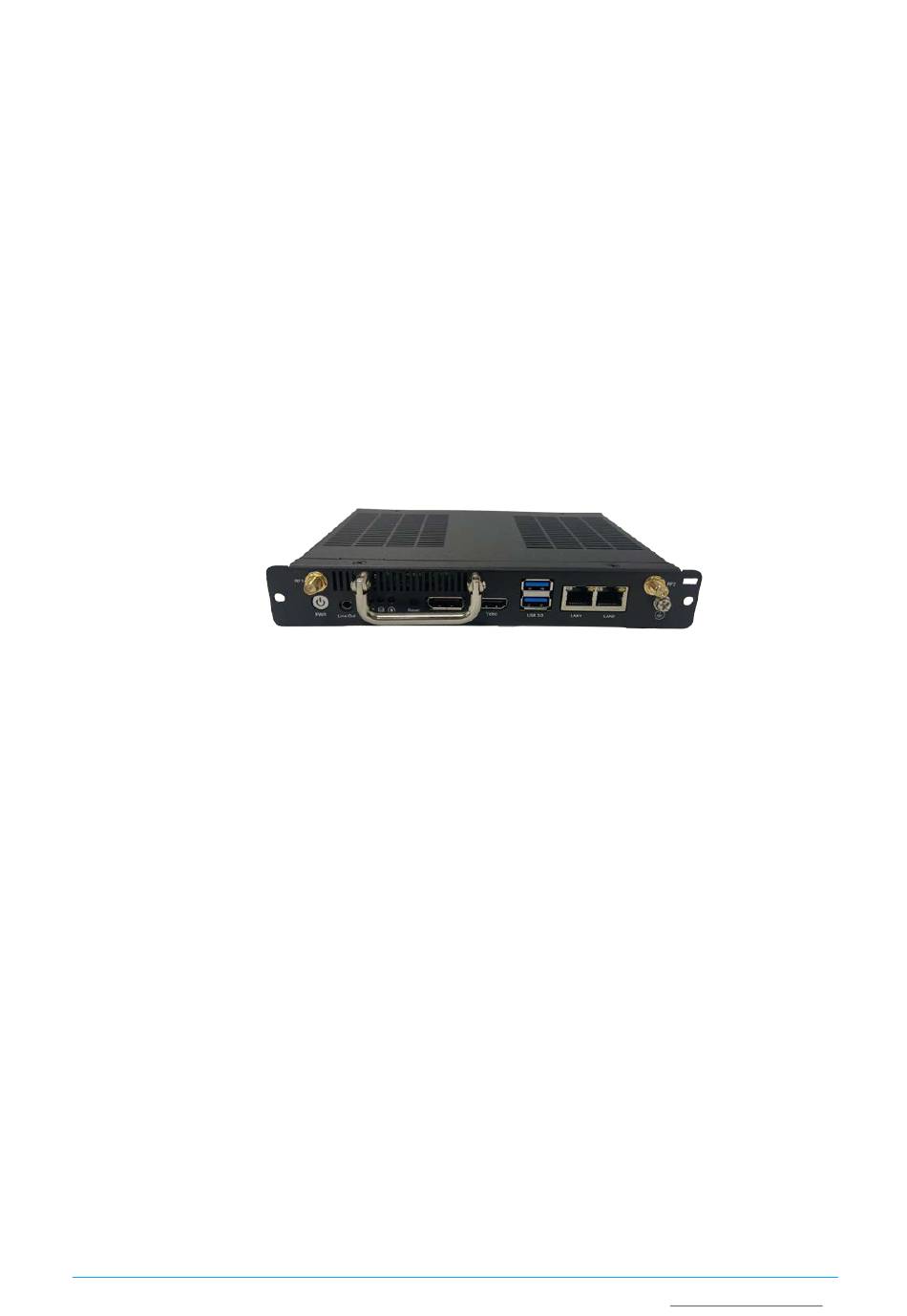

- Page 1 Vantron | Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions Oplayer357 OPS Player User Manual Version: 1.2 © Vantron Technology, Inc. All rights reserved. Oplayer357 | User Manual www.vantrontech.com...
- Page 2 World-leading provider of embedded/IoT products and solutions Revision History: Version Description Date V1.0 First release Oct. 23, 2022 Supplemented the pinout description of the V1.1 Jun. 9, 2023 JAE connector V1.2 Added description on the watchdog timer Oct. 18, 2023 Oplayer357 | User Manual www.vantrontech.com...
-
Page 3: Table Of Contents
Make a Bootable USB Drive for Windows 10 ......................29 4.3.3 System installation ......................30 Watchdog Timer CHAPTER 5 DISPOSAL AND WARRANTY ......................... 31 ........................32 Disposal ........................33 Warranty ................... 34 Appendix Regulatory Compliance Statement Oplayer357 | User Manual www.vantrontech.com... -
Page 4: Foreword
World-leading provider of embedded/IoT products and solutions Foreword Thank you for purchasing Oplayer357 OPS Player (“the Device” or “the Product”). This manual intends to provide guidance and assistance necessary on setting up, operating or maintaining the Product. Please read this manual and make sure you understand the structure and functionality of the Product before putting it into use. - Page 5 Please refer to the Appendix for Regulatory Compliance Statement. Symbology This manual uses the following signs to prompt users to pay special attention to relevant information. Caution for latent damage to system or harm to personnel Attention to important information or regulations Oplayer357 | User Manual www.vantrontech.com...
- Page 6 The use or placement of the operation tools shall comply with the code of practice of • such tools to avoid short circuit of the Product. • Cut off the power before inspection of the Product to avoid human injury or product damage. Oplayer357 | User Manual www.vantrontech.com...
- Page 7 • Clean with a damp cloth Do not try to clean exposed electronic components unless with a dust collector • Power off and contact Vantron technical support engineer in case of the following faults: The Product is damaged • •...
-
Page 8: Chapter 1 Introduction
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 1 INTRODUCTION Oplayer357 | User Manual www.vantrontech.com... -
Page 9: Product Overview
DisplayPort and HDMI that support 4K UHD output, 3.5mm line out jack, USB 3.0 ports and Ethernet jacks, allowing for flexible connectivity with different peripherals. Oplayer357 can be easily connected to an OPS compliant display via the JAE TX25 plug connector which offers DisplayPort, HDMI, USB 2.0, USB 3.0, audio (Line-out) and UART signals. -
Page 10: Terminology
1 x Oplayer357 adapter & power cord 1 x Qualified 2 x 4G LTE/Wi-Fi certificate antenna Actual accessories might vary slightly from the list above as the customer order might be different from the standard configuration options. Oplayer357 | User Manual www.vantrontech.com... -
Page 11: Specifications
Power via the OPS monitor (12V ~ 19V 3A) Dimensions 200mm x 120mm x 30mm Mechanical Heat dissipation Fan/Heat sink Temperature Operating: 0℃ ~ +35℃ Storage: -20℃ ~ +70℃ Environment Humidity Operating and storage: 10~85% RH (non-condensing) Condition Certification CE, FCC, CCC Oplayer357 | User Manual www.vantrontech.com... -
Page 12: Product Layout
2 x USB 3.0 A Storage 4G/Wi-Fi 4G/Wi-Fi indicator antenna antenna ON/OFF HDMI Reset button Line 2 x ETH Grounding Wireless screw indicator 1.6.2 Back view HRS FX18 JAE TX25 DC jack connector connector Oplayer357 | User Manual www.vantrontech.com... -
Page 13: Operating System
200mm x 120mm x 30mm (With mounting frame) 1.9 Power Supply Oplayer357 is designed to work with 12V ~ 36V DC power input via the power jack on the back of the device or powered by 12V ~ 19V DC from the docking display via the pluggable connector. -
Page 14: Chapter 2 Getting Started
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 2 GETTING STARTED Oplayer357 | User Manual www.vantrontech.com... -
Page 15: Device Installation
World-leading provider of embedded/IoT products and solutions 2.1 Device Installation Typically, Oplayer357 is used with an OPS compliant display to offer a digital signage solution for users with 4K UHD output. The following steps use Vantron TMC550 55-inch touchscreen monitor to illustrate how to install Oplayer357 to an OPS compliant display. -
Page 16: Using The Device
World-leading provider of embedded/IoT products and solutions 2.2 Using the Device Oplayer357 is also intended for independent use as a common industrial computer. To access the GUI of the device, follow the steps below to connect it to a mouse, keyboard and monitor. -
Page 17: Chapter 3 Harware Description
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 3 HARWARE DESCRIPTION Oplayer357 | User Manual www.vantrontech.com... -
Page 18: Jae Tx25 Connector
Specification: 2 x 40, 1.27mm, 1A, Male, 9mm H, Right Angle, WDT, THR, RoHS Pinout description: Signal Description I/O Type DDP_3N DisplayPort DDP_3P DisplayPort Ground DDP_2N DisplayPort DDP_2P DisplayPort Ground DDP_1N DisplayPort DDP_1P DisplayPort Ground DDP_0N DisplayPort DDP_0P DisplayPort Ground Oplayer357 | User Manual www.vantrontech.com... - Page 19 Ground +12V~+19V Power +12V~+19V Power +12V~+19V Power +12V~+19V Power +12V~+19V Power +12V~+19V Power +12V~+19V Power +12V~+19V Power RSVD Reserved RSVD Reserved RSVD Reserved RSVD Reserved RSVD Reserved RSVD Reserved RSVD Reserved RSVD Reserved RSVD Reserved Oplayer357 | User Manual www.vantrontech.com...
- Page 20 USB_PN2 USB_PP2 Ground USB_PN1 USB_PP1 Ground USB_PN0 USB_PP0 Ground AZ_LINEOUT_L Audio-Lch AZ_LINEOUT_R Audio-Rch Consumer Electronics Control PB_DET Pluggable Board Detect PS_ON# Pluggable Signal ON PWR_STATUS Power Good OUT (OC) Ground Ground Ground Ground Ground Ground Oplayer357 | User Manual www.vantrontech.com...
-
Page 21: Hrs Fx18 Connector
PCIe PCIE-RXP1 PCIe Ground Ground PCIE-RXN2 PCIe PCIE-RXP2 PCIe Ground Ground PCIE-RXN3 PCIe PCIE-RXP3 PCIe Ground Ground PCIE_CLK_N PCIe CLK PCIE_CLK_P PCIe CLK Ground I2C1_CLK I2C Clock I2C1_DATA1 I2C Data Ground DDP1_AUXN DisplayPort1 DDP1_AUXP DisplayPort1 Oplayer357 | User Manual www.vantrontech.com... - Page 22 Ground PCIE-TXN3 PCIe PCIE-TXP3 PCIe Ground I2C_CLK_LAN I2C/SMBus CLK I2C_DATA_LAN I2C/SMBus Data LAN_DISABLE PHY Status SLEEP_S3 PHY Status PCIe_RST PCIe Reset GPIO GPIO Ground DDP1_3N DisplayPort1 DDP1_3P DisplayPort1 Ground DDP1_2N DisplayPort1 DDP1_2P DisplayPort1 DDP1_HPD DisplayPort1 Oplayer357 | User Manual www.vantrontech.com...
-
Page 23: Power Jack
World-leading provider of embedded/IoT products and solutions Power jack Oplayer357 is designed to work with 12V ~ 36V DC power input via the power jack on the back of the device or powered by 12V~19V DC from the docking display via the pluggable connector. -
Page 24: Hdmi (Video)
Ethernet MDI2- Signal L2_MDI_3P Ethernet MDI3+ Signal L2_MDI_3N Ethernet MDI3- Signal HDMI (Video) Oplayer357 offers an HDMI 1.4 port (Type-A) with resolution up to 4096 x 2160 @30Hz for delivering high-definition video and high-resolution audio. Pinout description: Signal Type Description... - Page 25 World-leading provider of embedded/IoT products and solutions Ground VCC_HDMI HDMI POWER +5V HDMI_HPD HDMI HOT PLUG DETECTION Oplayer357 offers a DP 1.4 port with resolution up to 4096 x 2160 @60Hz for delivering high-definition video and high-resolution audio. Pinout description: Signal Type Description...
-
Page 26: Usb 3.0
Oplayer357 provides a reset button for rebooting the device without using the ON/OFF button. Specification: 7.3mm, 6.25mm H, WDT, SMT, RoHS 3.11 Line out Oplayer357 provides a line out jack on the front panel for connecting an earphone or amplifier. Oplayer357 | User Manual www.vantrontech.com... -
Page 27: Led Indicators
Turns solid green when there is wireless connection. 3.13 Grounding screw The grounding screw on the front panel allows users to attach a ground wire to it to protect the device from potential electrical damage. Oplayer357 | User Manual www.vantrontech.com... -
Page 28: Chapter 4 Software Setup
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 4 SOFTWARE SETUP Oplayer357 | User Manual www.vantrontech.com... -
Page 29: Bios Introduction
Security: System security settings where users can set the administrator and user • passwords, manage the passwords, etc. • Boot: System boot options Exit: BIOS load or exit options with or without changes saved • Oplayer357 | User Manual www.vantrontech.com... -
Page 30: Selecting A Boot Option
UEFI SanDisk xxxx is a specific boot entry associated with the SanDisk device. This option allows you to boot the device from this bootable device. Please refer to 4.3.2 Making a Bootable USB Drive for Window 10 for the details of making a bootable USB device. Oplayer357 | User Manual www.vantrontech.com... -
Page 31: Installing Windows 10 System
Installing Windows 10 System 4.3.1 Prerequisites • A USB drive with capacity no less than 8GB, preferably supporting USB 3.0 • Software release package of Oplayer357 A program for making the bootable device: rufus-xxx .exe (available in the release • package) •... -
Page 32: System Installation
3. Press F7 during the boot process to enter the BIOS boot manager menu; 4. Select the bootable USB drive you created for Windows system and press ENTER; 5. Wait for the installation of Windows on Oplayer357. Oplayer357 | User Manual... -
Page 33: Watchdog Timer
TestF8180xWdt located in \4 Sw- Tests\WDT\TestF8180xWdt.zip. Before running the program, please install the following drivers. 1. Fintek IO driver (directory: \3 Sw-Driver\F8180x) 2. Vs2015 runtime library (directory: \4 Sw-Tests\VC_redist.x64(vs2015~2022).exe) Oplayer357 | User Manual www.vantrontech.com... -
Page 34: Chapter 5 Disposal And Warranty
Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions CHAPTER 5 DISPOSAL AND WARRANTY Oplayer357 | User Manual www.vantrontech.com... -
Page 35: Disposal
& electronic waste recycling/disposal center. Proper disposal of this sort of waste helps avoid harm and adverse effect upon surroundings and people’s health. Please contact local organizations or recycling/disposal center for more recycling/disposal methods of related products. Oplayer357 | User Manual www.vantrontech.com... -
Page 36: Warranty
CUSTOMER’s location and no Product so inspected shall be returned to VANTRON unless the cause for the rejection or defect is determined to be the responsibility of VANTRON. VANTRON shall in turn provide the CUSTOMER turnaround shipment on defective Product within fourteen (14) working days upon its receipt at VANTRON. -
Page 37: Appendix Regulatory Compliance Statement
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate this equipment. Oplayer357 | User Manual www.vantrontech.com...
