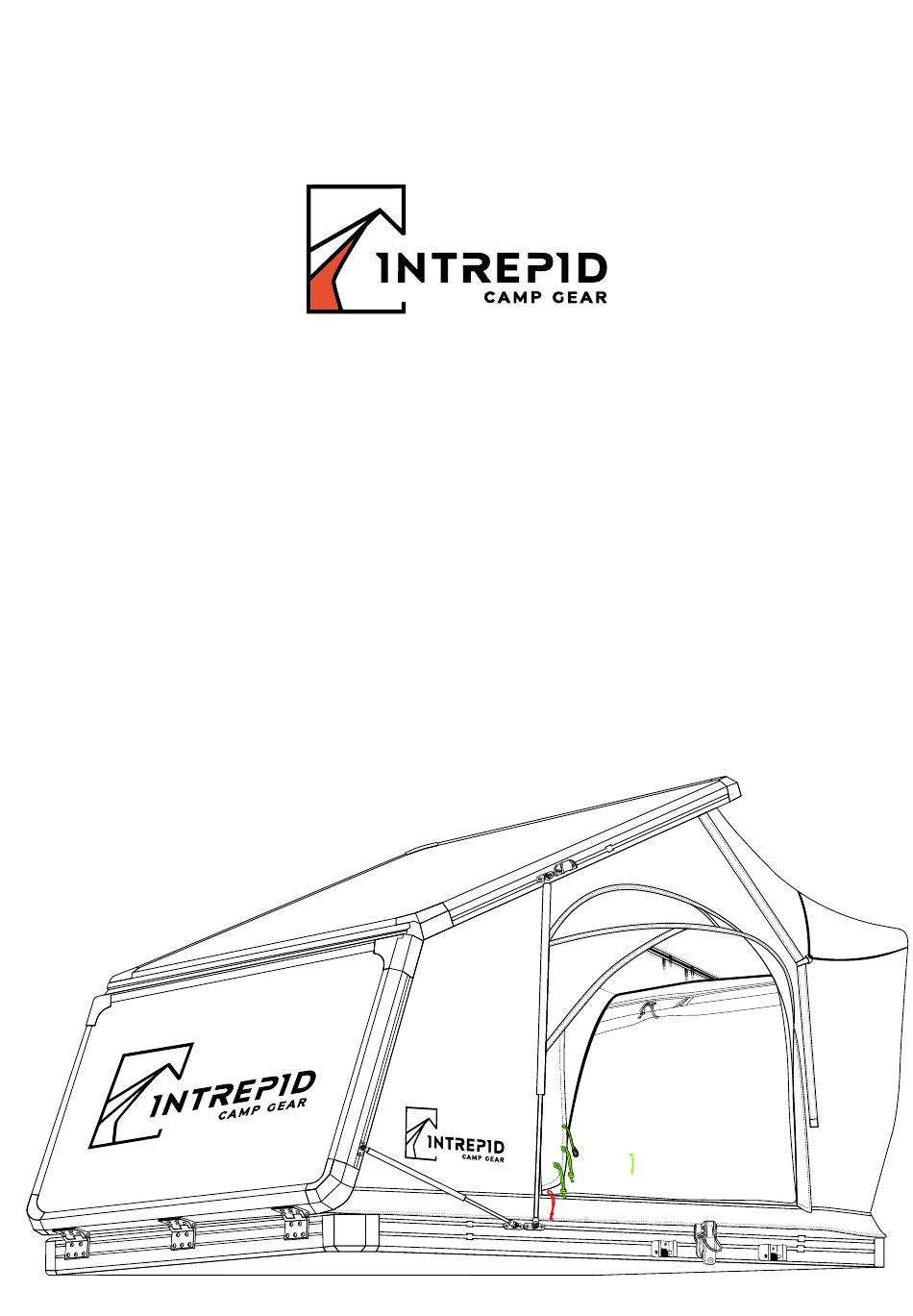

- Page 1 USER MANUAL GEO 2.5 RTT...
- Page 2 NEVER OPERATE THE TENT NEAR AN OPEN FLAMER OR HEAT SOURCE At all times, take precautions that there are no flames, or other heat sources, near the tent fabric or mattress. Neither the tent nor the mattress are fire retardant. NEVER USE ANY PRODUCT THAT BURNS FUEL IN THE TENT Deadly fumes produced by stoves, lanterns, grill,...
-
Page 3: Table Of Contents
TABLE OF CONTENTS DIMENSION AND SPECS........HARDWARE COMPONENTS........CROSSBAR OR PLATFORM SETUP......TENT COMPONENTS..........TENT INSTALLATION..........MOUNTING HARDWARE PREPARATION....INSTALLING RAIL COMPONENTS......HOW TO OPEN THE GEO 2.5........SETUP INSIDE THE TENT........HOW TO CLOSED THE GEO 2.5......TENT CARE AND SAFETY........We are not perfect, but we strive to be the best. -
Page 4: Dimension And Specs
DIMENSIONS AND SPECS INTERIOR DIMENSIONS EXTERIOR DIMENSIONS 51.1” 57.9” (130cm) (147cm) 88.5” 86.5” (220cm) (225cm) 51.1” 57.9” (130cm) (147cm) 55.1” 53” (140cm) (135cm) 7,1” (18cm) -
Page 5: Setup Inside The Tent
Note: Heavy-duty crossbars should be used when adding extra attachments on top. Weight Tent: 67.9kg (frame & fabric, excluding all detachables) Condensation mat + Mattress: 7kg Ladder: 7.5kg Interior Dimension L x W x H: 86.5" x 53" x 51.1" (220cm x 135cm x 130cm) Exterior Dimension L x W x H: 88.5"... -
Page 6: Hardware Components
HARDWARE COMPONENTS Your Geo 2.5 comes with attached latches, a ladder, and a mounting kit with: 1. Tent 2. Vehicle connection brackets 3. Ladder bracket x 6 sets x 1 set Stainless steel lock plates (1 set equipped on side door) Other Parts included 4. -
Page 7: Crossbar Or Platform Setup
CROSSBAR OR PLATFORM ADJUSTING THE CROSSBARS Manufacturer recommendation: distance between crossbar should be 36" (91cm) minimum for more stability while driving. This distance is also recommended between mounting points on platform racks. Distance = D PLATFORM RACKS: Any additional accessories on Platform racks can also be used, crossbar should have a vertical... -
Page 8: Tent Components
TENT COMPONENTS Crossbar (option) Main/Sub gas spring Main hinge Stargaze window Air ventilation Front door: Triple-panel Top gasket Closing string Side doors: Dual-panel Locking latch Ladder bracket Rain & Sun shade... -
Page 9: Tent Installation
TENT INSTALLATION max. Parallel with the crossbar. Front slightly down (down force). Wind Back side down (drag force). Parallel with the vehicle's body. Check balance from front & back side. -
Page 10: Mounting Hardware Preparation
HARDWARE PREPARATION Prepare 4 bottom locking sets to assemble (2 extra or optional sets). Insert x4 M8 bolts into the C tube Adjust x2 M8 bolts on the 2 sides at the bottom of tent. of the cross bar as the picture shows. 5 - 15 Mark Insert the lock plate to the M8 bolts. -
Page 11: Installing Rail Components
INSTALLING RAIL COMPONENTS We recommend installing your ladder hooks and handle on INSTALL THE HANDLE your vehicle after it is mounted, and the handle should be placed in front of the main door (balanced push-up force). STEP 1 Insert x2 M6 T-Nuts into the groove of the top frame. - Page 12 INSTALLING RAIL COMPONENTS Hook the ladder to the bracket properly and adjust the INSTALL THE LADDER angle so it is stable, and the lock is securely engaged (be sure to adjust height and angle, then lock). STEP 1 First button: Locked for hook fixation (all-time lock/ screwed from side for safety).
-
Page 13: How To Open The Geo 2.5
HOW TO OPEN THE GEO 2.5 STEP 1 Push up gently, and the gas spring slowly lifts the tent into its final position (giving some time for air intake). STEP 2 STEP 3 A strong and quick lift up will damage the frame and hinge. - Page 14 HOW TO MANAGE GEOMETRIC DOOR MULTIPLE DOOR-OPENING WAYS, FOR EXAMPLE: 1. Completely open. 2. Full open (don't need to fold the door). 3. Half top opening (ventilation) 4. Half side opening for snowing season. for raining season.
- Page 15 SETUP INSIDE THE TENT The two mesh pockets included: zip up and tuck the door fabric inside, then zip down. The tent has two small holes on each of its two sides, through which a charging cord can be entered. When not in use, block with the included foam.
- Page 16 SETUP INSIDE THE TENT The tent is equipped with a loop in the middle and several O-rings inside, intended for light fixtures or lanterns. Put up the ventilation support bars - Should fold before closing otherwise it will dent on TPU window.
-
Page 17: How To Closed The Geo 2.5
HOW TO CLOSE THE GEO 2.5 Leave the bottom zipper puller (red) close 50%, which prevent water inside when heavy rain. LIME 100% closed Close before folding 1 per side door 2 for front door 2 ventilation support bar... - Page 18 HOW TO CLOSE THE GEO 2.5 1. Holder 2. Support bar Top ventilation support bar - Should fold before closing otherwise it will dent on TPU window STEP 1 Remove the door frame support bar, and drop it back after you close both side windows.
- Page 19 The inner connector (2 elastic band system) helps the skin to fold neatly when you close the tent. You can wrap it and store it in the pocket when not in use. Grab the string and pull to fold the tent. It is recommended that you not close it too quickly, so the inner air has enough time to out.
- Page 20 When it's nearly closed, pull the puller inside and tuck in the skin from three sides, then put the string inside the tent. Check the gap Check the gap Check the gap Check the gap Check the gap Check the gap After tent is closed, be sure to lock latches on both sides of the tent and check side gaps (water penetration path) on both sides.
-
Page 21: Tent Care And Safety
TENT CARE AND SAFETY TENT CARE While it is not possible to make a tent that is 100% waterproof, the GEO 2.5 RTT is designed to achieve maximum water resistance. We suggest the following precautionary measures to aid in this. - Page 22 https://intrepidcampgear.com/...
