Rev 2.0
Failure to follow installation instructions may affect warranty coverage.
1. Do not modify the Communications Cable, which connects the Switch Panel and Power Module.
•
Why? The SP9100 uses specialty communication protocol that can be interrupted and malfunction if the
cable is altered in any way. For a custom length cable, please contact our Sales Department. For more
information, see Section 5.
2. The Light Blue Ignition Wire needs to be tapped into a 12V switched source.
•
Why? When the Light Blue Ignition Wire senses 12V, the panel backlighting illuminates, and Ignition Input
switches are operational. To override the need for the Light Blue Ignition Wire, program switches to be
Battery Input. For more information, see Section 3.3.
3. Connect the Black Ground Wire directly to the negative terminal of the battery.
•
Why? The negative terminal of the battery is the best ground source. A poor ground source can cause
abnormal behavior. For more information, see Section 3.2.
4. Do not connect any other power feeds to the stud on the Power Module.
•
Why? The Power Module is not designed to support other equipment, beyond those that are powered by the
output wires. For more information, see Section 4.
5. Mount the Power Module in a vertical position, with the connectors facing outward, not upward.
•
Why? This allows water to run off, and not collect on the top of the connector, or face of the module.
Pooling water can cause corrosion over time. For more information, see Section 2.
SP9100 8 Switch Programmable Switch Panel Power System
KEY INSTALLATION POINTS

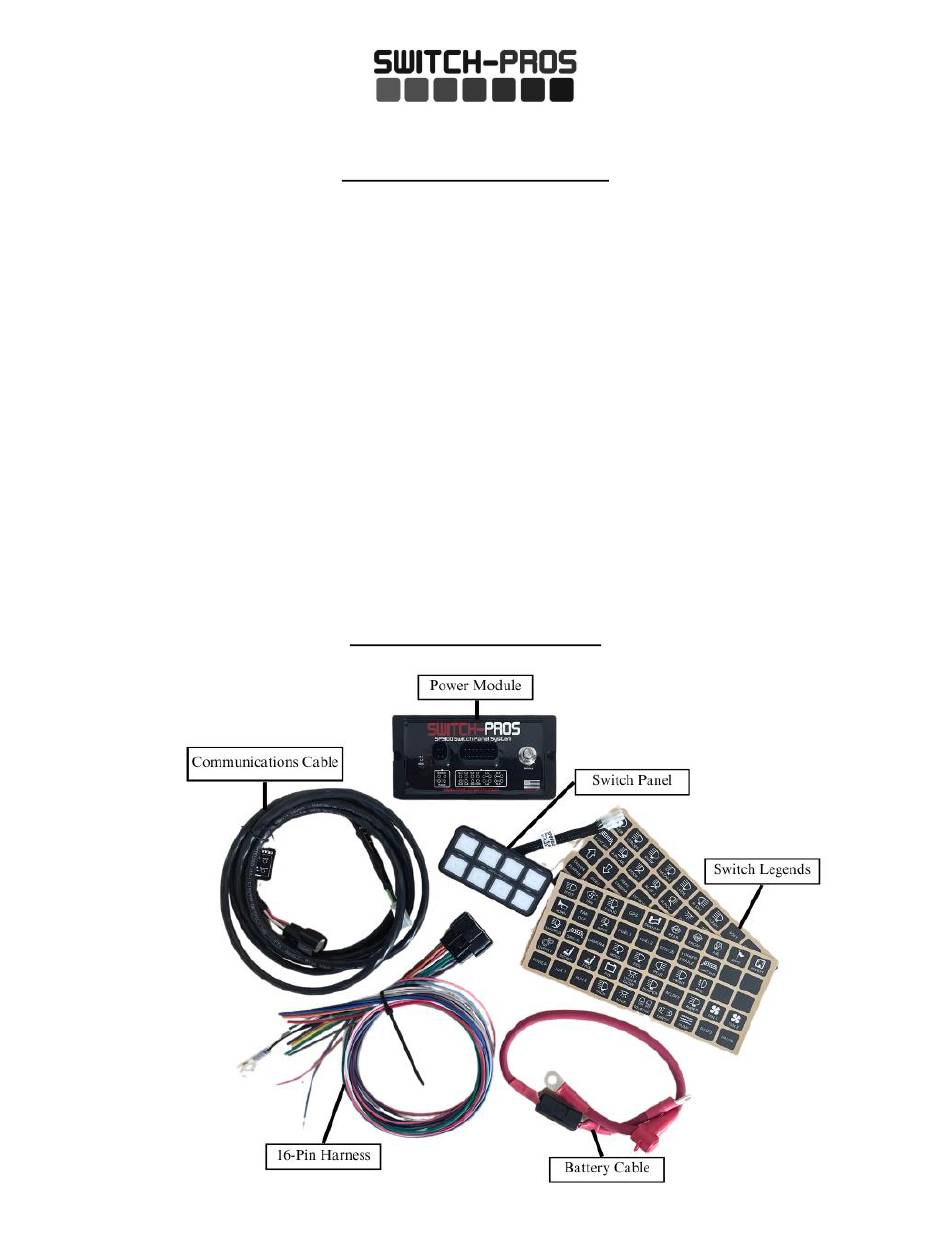

GET TO KNOW THE PARTS
1
Jan. 2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP9100 and is the answer not in the manual?

Questions and answers

Related Manuals for Switch-Pros SP9100

Summary of Contents for Switch-Pros SP9100

  • Page 1 1. Do not modify the Communications Cable, which connects the Switch Panel and Power Module. • Why? The SP9100 uses specialty communication protocol that can be interrupted and malfunction if the cable is altered in any way. For a custom length cable, please contact our Sales Department. For more information, see Section 5.

  • Page 2: Installation

    Rev 2.0 Jan. 2024 SP9100 SPECIFICATIONS Power Module: Switch Panel: Size: 6.0” x 3.0” x 0.6” Size: 4.0” x 2.0” x 0.365” Height with Connectors: 1.48” Enclosure Material: Anodized Aluminum Height with Connectors Plugged in and Wires: 2.8” Switch Panel Overlay and Legends Material:...
  • Page 3 Rev 2.0 Jan. 2024 2. Power Module 2.1 Mounting Guidelines • Mount within 2’ of the vehicle’s battery, as that is the standard length of the Battery Cable. • Mount in a vertical position, with the connectors facing outward, rather than upward, so water cannot accumulate on the connector seals.
  • Page 4 Power Module, will illuminate. • Pink Trigger 1 Wire – This wire allows an external source to trigger multiple Switch-Pros outputs. o Tap this wire into an external trigger, such as a high beam signal, reverse light signal, dome light signal, temperature gauge, etc.
  • Page 5 Rev 2.0 Jan. 2024 o Up to 4 outputs can be programmed to come on with the trigger. ▪ Note: Outputs programmed to be turned on with the External Trigger can still be turned on and off through the Switch Panel. ▪...
  • Page 6 • Note: Do not alter the length of the cable. If you need a custom length, please contact our Sales Department at Sales@Switch-Pros.com or 949-581-2991. • To feed the Communications Cable through a tight space, it may be necessary to remove the black 4-pin connector.
  • Page 7 Be sure you are within +/- 50 ft of your Switch Panel. • Click “Scan for Local Devices” → A white box will pop up, and the name of Switch-Pros panel(s) in range will appear. o If the app does not show your panel and you are within range, follow the steps below.
  • Page 8 Enter text or select the icon to appear in the App’s switch buttons. 7.4 Set Panel Name • This is the name of your SP9100, which will appear in the list of nearby devices, when “Scan for Local Devices” is pressed in the App. o Default is “SWCHPRO”...
  • Page 9 Rev 2.0 Jan. 2024 indicator will start to flicker rapidly, indicating the active dimming, and the output will dim from 100% to 50% to 10% repeatedly. The switch LED indicator flicker rate will also decrease, indicating the level of dimming. When the desired dimmed level is achieved, releasing the switch will lock in the dimming level.
  • Page 10 Note: This does not remove the Bluetooth password. 7.16 Dual System Connection • Enabling this function allows Bluetooth connection to 2 Switch-Pros systems at once. o Note: Once enabled, exit out of Settings and click “Panel 2”, in the virtual panel, to connect to another unit.
  • Page 11 Rev 2.0 Jan. 2024 8.5 Restore to Default Values • Disconnect the Communications Cable, either at the back of the Switch Panel or at the Power Module, then hold down Switch 7 while plugging it back in. Continue holding Switch 7 until the Switch Panel finishes running through the backlighting colors Red, Green, Blue and White.
  • Page 12 Rev 2.0 Jan. 2024...
