Sunex Mac Tools MB195UC Assembly Instructions

ASSEMBLY INSTRUCTIONS
Due to the weight of this cart we recommend that
two people work together on the assembly. This cart weighs
approximately 200 lbs, please use caution during assembly.
Step 1: Locate the key tied to the bottom shelf. Using the
key, open the sliding top and remove the caster box
from the bottom drawer. Once removed, make sure all
drawers are completely closed and the inside lever is
in the locked position. Close the sliding top and lock.
Step 2: Lay out a work surface using the protective foam
provided. Once this surface is secure, gently turn the
cart onto its back.

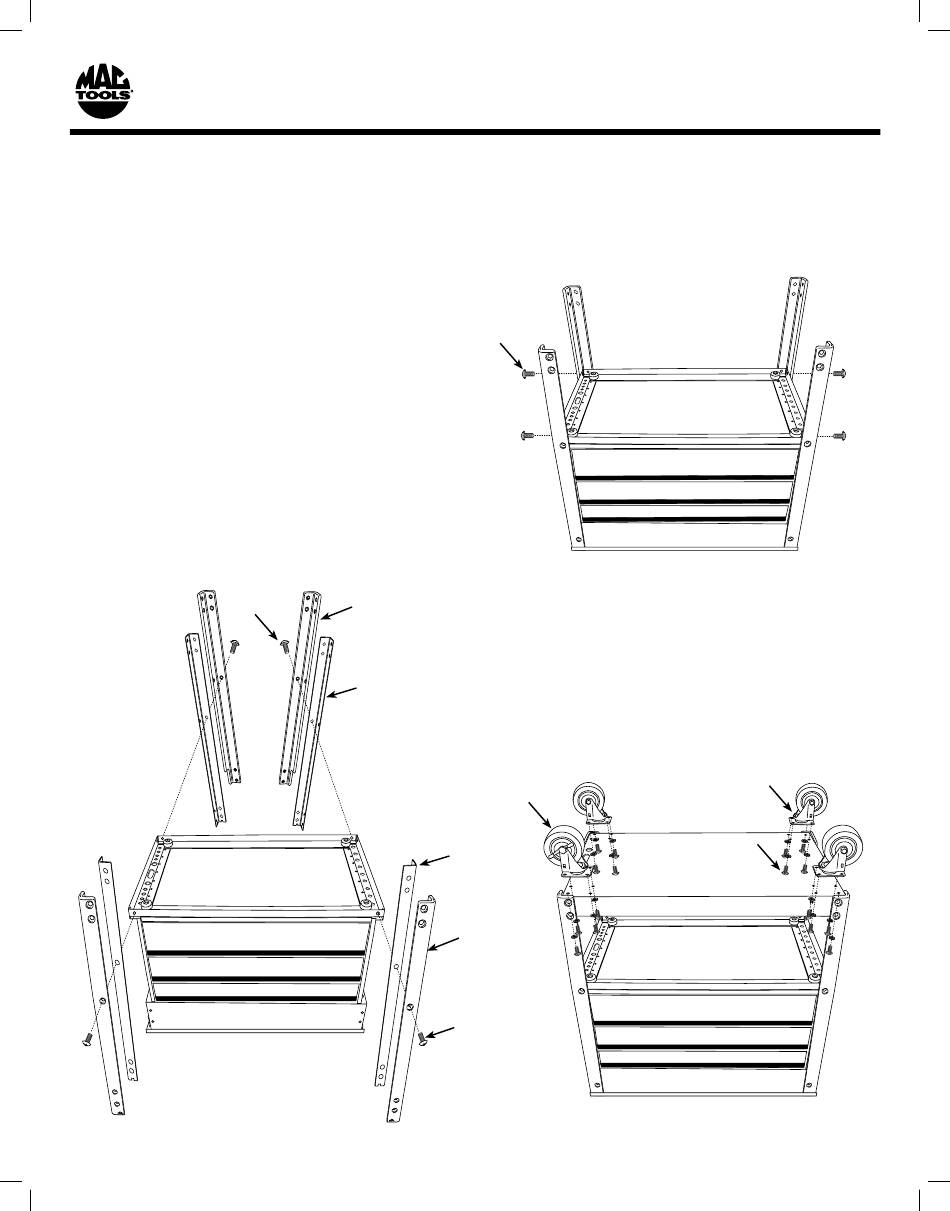

Step 3: (Before assembling the legs, remove the cable tie
holding the bumper in place.) Insert the front leg
(Part #7), labeled FL or FR. Then place the front
bumper (Part # 13) over the leg, aligning the center
bolt holes. With holes aligned, insert Torx bolt (Part
#1a) and finger tighten.
Step 4: Install back leg (Part #7) labeled BL or BR and bumper
(Part #13), following the same procedure as above.
mB195UC-BL /-BK / -OR / -GR / -NG / -PP/ -YE
MB195UC_Manual_051307.indd 1
13
1a
7
MB195UC, -Bk, -BL, -GR, -NG, -OR, -PP, -YE
3 Drawer Deluxe Utility Cart
Step 5: Repeat steps 3 & 4 to mount the legs on the
opposite side.
1a
Step 6: mounting casters: Put the four casters in place. The
two locking casters (Part #10) should be on one side
of the cart, and the two non locking casters (Part #9)
should be on the other (left or right side, Not front
or back). Using the 16 bolts (Part #8), washers, and
lock washers (located in separate caster bag), com-
pletely tighten the casters to the bottom tray, using
a 14mm socket or 14mm combination wrench for the
bolt head. (Note: Bolt head, washer and lock washer
should be on the inside of the bottom shelf.)
9
7
13
1a
1
10
8
