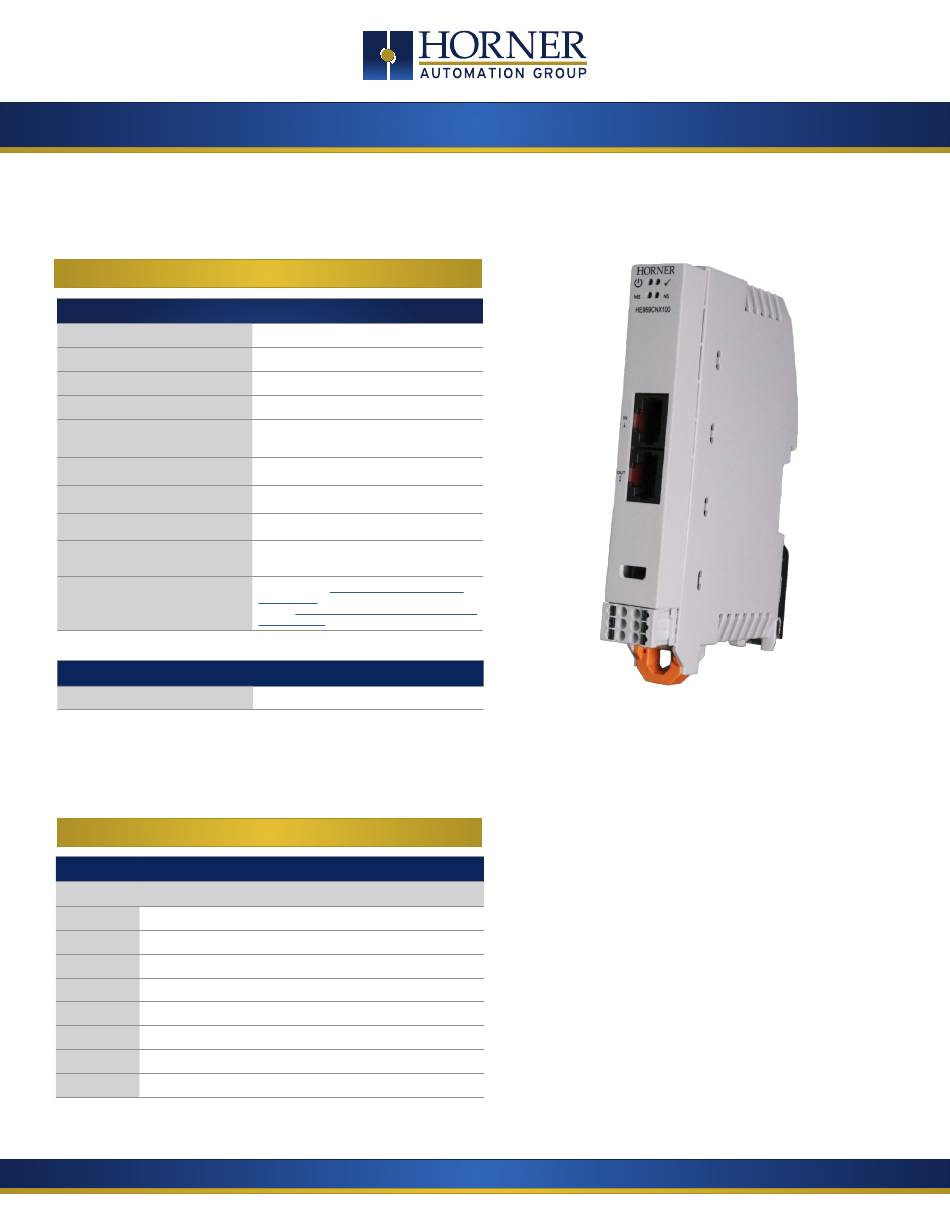

OCS-I/O - CSCAN COMMUNICATION BASE
MAN1500_R01_HE959CNX100_DS
1 TECHNICAL SPECIFICATIONS
1.1 General Specifications
Required Power (Steady State)
Required Power (Inrush)
Primary Power Range
Relative Humidity
Port Wiring
(power)
Operating Air Temperature
Storage Air Temperature
Weight
Dimensions
Certifications
(UL/CE)
NOTE: Max of 7 Modules per base
1.2 Connectivity
CAN Protocols
2
CAN PINOUT TABLE
CAN Pin Assignments
PIN
SIGNAL
1
CAN_H
2
CAN_L
3
GND
4
Reserved
5
Reserved
6
CAN_SHLD
7
GND
8
VIN Passthrough
Please visit our website for a complete listing and to learn more about certified Horner Automation products.
This document is the property of Horner Automation Group, and is subject to change.
630mA @24VDC (<15W @ 24V)
24A @ 30 μs
10-30VDC
5-95% non-condensing
16-24 AWG / 0.2-1.4mm²
-40°C (-40°F) to 60°C (140°F)
-40°C (-40°F) to 85°C (185°F)
87g (3.05 oz)
76.5mm x 124.5mm x 19mm
3" x 4.9" x 0.75"
North America:
https://hornerautomation.com/
certifications/
Europe:
https://www.hornerautomation.eu/support/
certifications-2/
CsCAN - IN and OUT
DESCRIPTION
CAN Data High
CAN Data Low
Ground
Do Not Connect
Do Not Connect
Shield
Ground
Do Not Connect
