Summary of Contents for CDA CRI621

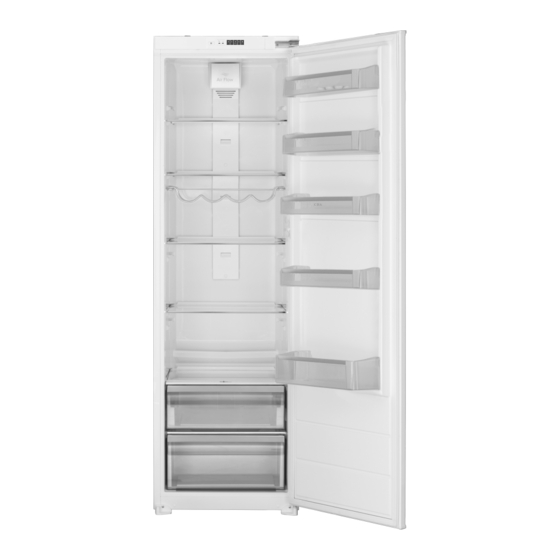

- Page 1 CRI621 Integrated refrigerator Installation, use and maintenance www.cda.co.uk...
- Page 2 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
- Page 3 This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Electrical safety (LVD) and Electromagnetic interference compatibility (EMC). Parts intended to come into contact with food conform to 1935/2004/EC. This refrigeration appliance is intended for use as a built-in appliance. IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.
-
Page 4: Important Safety Warnings
Important safety warnings • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • This appliance is intended to be used in household and similar applications such as: 1. Staff kitchen areas in shops, offices and other working environments 2. - Page 5 • When placing, moving, lifting the appliance, do not hold the door handles, do not pull the condenser at the rear part of the refrigerator and do not touch the compressor unit. • When transporting, moving or positioning the fridge do not tilt it by more than 40°...
- Page 6 • When performing activities, such as cleaning, maintenance or moving, the appliance must be completely disconnected from power supply (by pulling the plug out from the socket) • This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to...
- Page 7 frozen food, storing or making ice-cream and making ice cubes • One-, two- and three-star compartments are not suitable for the freezing of fresh food Note: please store different foods according to the compartments or target storage temperature of your purchased products. •...
- Page 8 WARNING: Do not damage the refrigerant circuit. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Page 9 Controls Fridge temperature set button Super cooling symbol (Super cooling LED) Alarm symbol (Alarm LED) Fridge adjusted temperature indicator When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests. Adjusting the temperature The initial temperature of the setting display is 5 °C, this can be adjusted using the following steps.
- Page 10 Alarm symbol (Alarm LED) In case of a problem within the fridge, the alarm led will release red light. Super cooling mode The super cooling mode can be used to cool huge quantities of food, cool food quickly and store seasonal food for a long time. •...
- Page 11 “Alarm LED” may light on the display because the product may be hot. The “Alarm LED” will turn off when the product reaches normal temperature. Additional information on the temperature • The temperature inside the appliance is influenced by many factors.
- Page 12 Storage The products should be placed on plates, in containers or packed in food wrap. Distribute them evenly over the shelves. • If the food contacts the rear wall, it may cause frosting or wetting of the products. • Do not put dishes with hot food into the fridge. •...
- Page 13 • Select the right temperature: 6 to 8°C in your refrigerator. • When on holiday, turn up the temperature in your fridge. • Only open your fridge when necessary. It helps if you know what food each contains and where it is located. Return food to the fridge as soon as possible after you have used it so that it does not warm up too much.
-
Page 14: Care And Cleaning
Care and cleaning Always disconnect the appliance from the power supply before any cleaning or maintenance. Never clean the product’s casing or plastic parts using solvents or strong, abrasive detergents (e.g. washing powders or creams)! Use mild liquid detergents and soft cloths only. Do not use sponges. External surfaces made of plastic should be cleaned with a microfiber cloth, otherwise irreversible micro scratches will appear. - Page 15 • Make sure the water used for cleaning does not flow into the evaporation container through the discharge opening. • The whole appliance, except for the door gasket must be cleaned with a mild cleaning detergent. The door gasket should be cleaned with water and wiped dry.
-
Page 16: Troubleshooting
Troubleshooting If you have any problems with your appliance, you should check the troubleshooting prior to calling CDA Customer Care, to prevent unnecessary service calls and potential cost. CDA Customer Care Phone: 01949 862 012 Email: customer.care@cda.co.uk Certain sounds can be heard during normal use of the refrigerator, which do not affect its correct operation. - Page 17 Issue Possible cause Remedies The electric circuit is • Check whether the plug is properly appliance disrupted inserted into the socket does not • Check whether the power cable of work the appliance is not damaged • Check whether there is voltage in the socket, by plugging another appliance, e.g.
- Page 18 Issue Possible cause Remedies Incorrect setting of the Reset the knob to a higher adjustment knob position The ambient temperature The appliance is adapted to is higher or lower than the operation in the climate range climate range from table with from table with technical technical specification specification...
-
Page 19: Installation
Installation This refrigeration appliance is intended for use as a built-in appliance. Installation before using the appliance for the first time • Take the product out of the package, remove the scotch tape protecting the door and the equipment. Any remaining adhesive stains may be removed with a mild washing agent. - Page 20 WARNING: Keep ventilation openings, in the appliance enclosure or in the built - in structure, clear of obstruction Minimum distances from the heat sources • from the electric gas and other ovens - 30 mm • from oil or coal fired ovens - 300 mm •...
-
Page 22: Mains Connection
Mains connection Prior to connection, it is recommended to set the temperature control knob to an “OFF” or other position that disconnects the appliance from the power supply (See page with the control description). • This appliance should be connected to AC 220-240V 50Hz supply socket. -
Page 23: Warranty And Service
Warranty and service The manufacturer shall not be held liable for any damage caused by improper use of the product. • Repairs carried out by unqualified persons may seriously endanger the appliance user • Pursuant to Commission Regulation (EU) 2019/2019, The minimum availability period for spare parts necessary to repair the appliance is 7 or 10 years depending on the type and purpose of the spare part... - Page 24 Notes...
- Page 25 The Customer Care Department on or email co.uk For more information please contact: The Sales Department on 01949 862 010 or email sales@cda.co.uk Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY 01949 862 012 01949 862 003 customer.care@cda.co.uk...
