N CONTROLS PLC
MECHA
KEEP THIS GUIDE FOR FUTURE REFERENCE
This information is designed to help suitably qualified
personnel install and operate Mechan Safety Switch
equipment.
Before using this product, read this guide thoroughly along
with any relevant European and/or National standards e.g.
Machinery Directive 89/392/EEC and it's amendments,
Provision and Use of Work Equipment Regulations.
Further information can be obtained from
Mechan Controls
Description

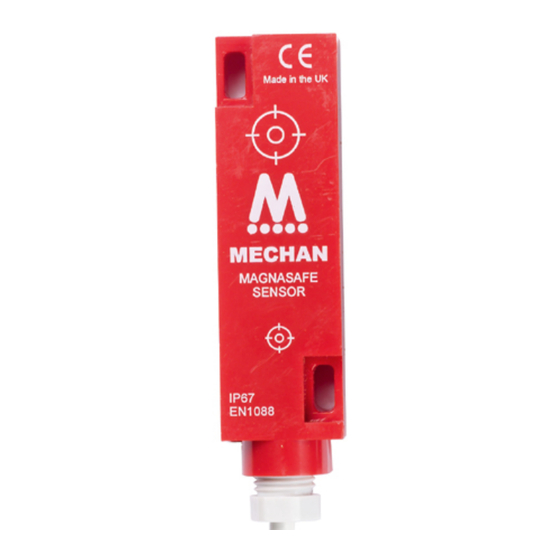

MAGNASAFE MS1 safety switches are magnetically
operated non-contact safety switch for use in machine
guarding applications.
The non-contact operation makes the MS1 easy to install
and tolerant to misalignment, providing a simple and reliable
solution to machine guard interlocking.
The MS1 is manufactured in a robust ABS housing, and both
switch and actuator are fully sealed to IP67 and suitable for
use in wet or dusty environments
With correct installation, the MS1 safety switches comply
with the guidelines given in EN1088.
Operation
When the MS1 safety switch and actuator are within the
specified operating range (See table on page 3 for switching
distances), the Safety Contacts will be closed and the
Auxiliary Contact will be open.
When the actuator moves out of the operating range, the
Safety Contacts will open and the Auxiliary Contact will
close for indication.
The MS1 safety switch and actuator are designed to
approach each other from most angles. When the switch is
closed the targets on the printed face of the switch must be
aligned.
Applications
Machine guards where door locking is not required.
Food and Beverage packing/filling systems
Diary
Pharmaceutical
Paper Industry
Can Forming and Filling, (Aluminum, Steel, Plastic)
Semiconductor Manufacture/Assembly.
UK OFFICE
5 CAULSIDE DRIVE, ANTRIM, NORTHERN IRELAND, BT41 2DU
TEL: +44 (0) 28 9448 1800,
www.concretespares.co.uk
Listed
Approvals
CE
UL
EUROPEAN DIRECTIVES
Machinery Directive 98/37/EC
Low Voltage Directive 73/23/EC
Electromagnetic Compatibility Directive 89/336/EC
EUROPEAN STANDARDS
EN292
EN 60204 Safety of Machinery
EN 954-1
EN 1088
EN
60947-5-3
Declaration of Conformity
A Declaration of Conformity may be obtained from Mechan
Controls PLC, Tel +44(0)1695 722264
or from the Mechan Web Site at www.mechancontrols.co.uk
PNEUTROL INTERNATIONAL LIMITED
sales@pneutrol.com

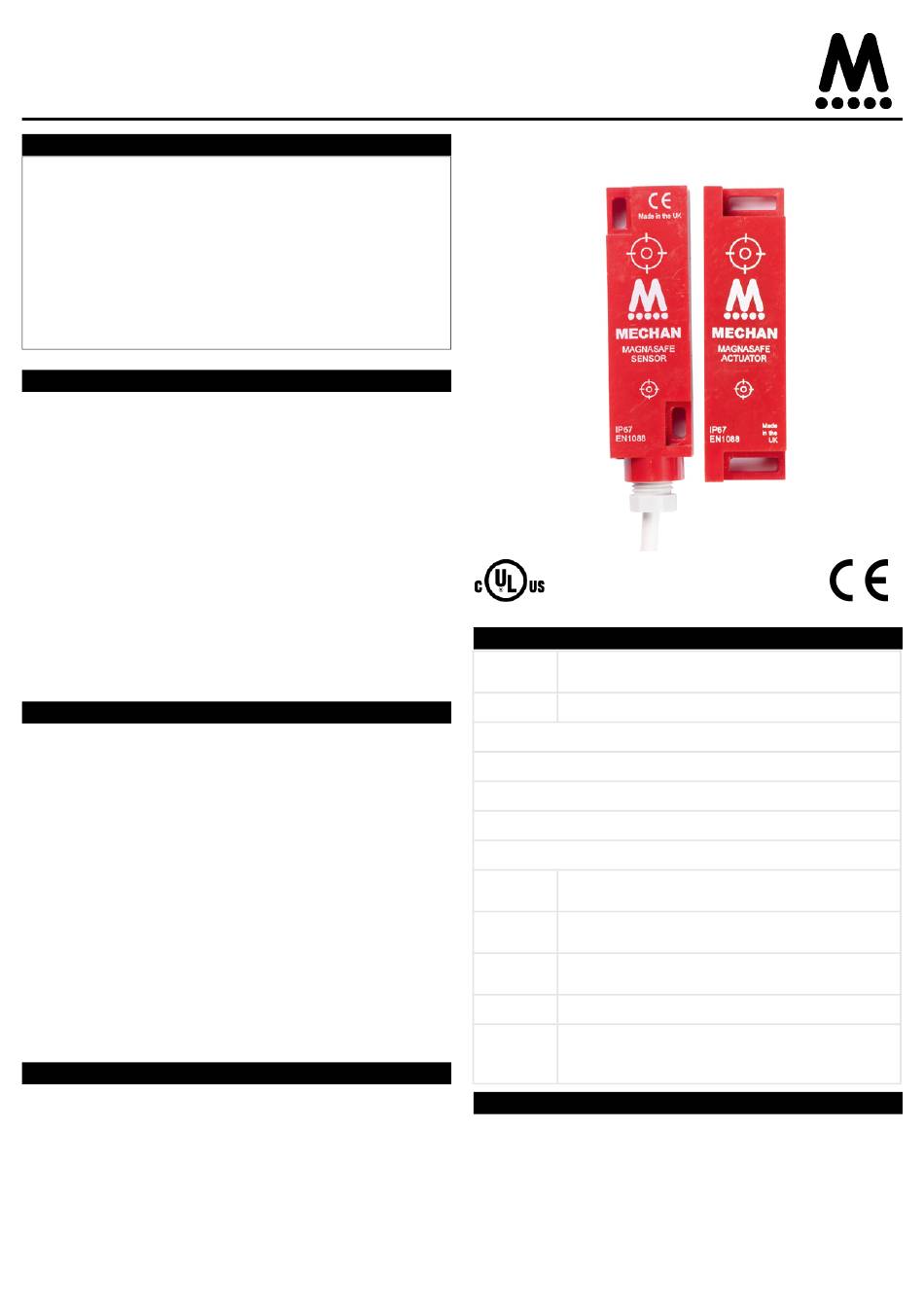

MS1 Safety Switch
Installation Guide
Complies with the relevant sections of the CE
marking directive.
UL 508, Industrial Control Equipment
Safety of Machinery
Basic concepts, general principles for design.
Electrical equipment of machines.
Safety of Machinery
Safety related parts of controls systems
Interlocking devices associated with guards.
Safety of Machinery
Specification for low voltage switchgear and
control gear.
EUROPEAN OFFICE
UNIT 6, SAINT ANTHONY'S BUSINESS PARK, DUBLIN, IRELAND, D22 VW95
TEL: +353 (0) 1 4373653,
www.concretespares.ie
