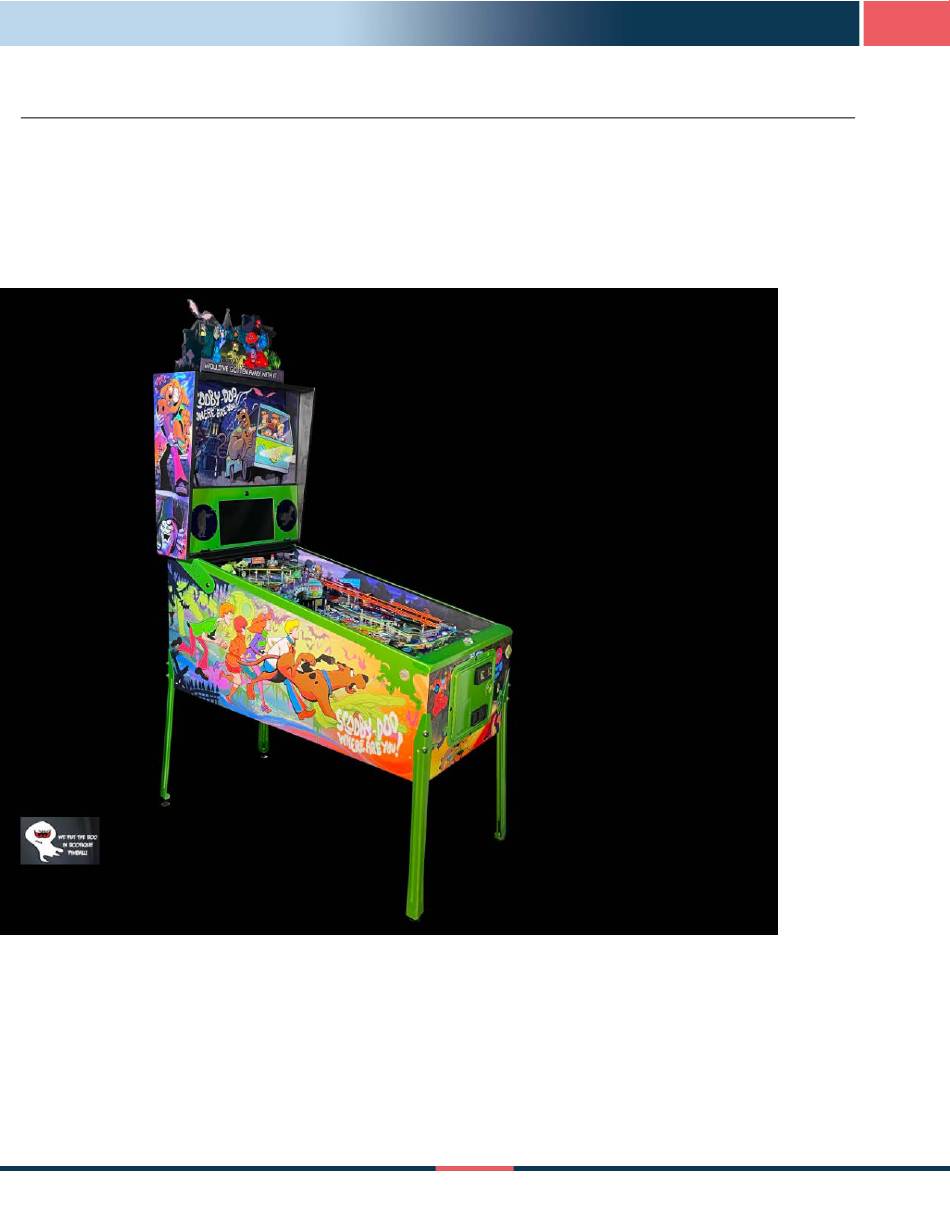

- Page 1 Spooky Pinball Presents: Scooby Doo...
-
Page 2: Table Of Contents
Chapter 1. Game Assembly and Setup ............3 Software Update Instructions .............. 5 Updating the Scooby Doo Base Image ..........6 Maintaining Your Pinball Machine ............6 Chapter 2. Game Menu System ..............7 COILS ...................7 SWITCHES / OPTOS .............7 LIGHTS ................7... - Page 3 Populated Warden Board .............52 Warden Board Fuse Locations ..........53 Chapter 4. Diagnose a Bad MOSFET on the Warden Board ......55 Scooby Doo Coil Chart ................57 Upper Playfield Removal ..............57 Chapter 5. Scooby Doo Switch Chart ............59 Scooby Doo Coil Chart ............... 61...
-
Page 4: Chapter 1 Game Assembly And Setup
Setup without topper (h x w x d) - 75 x 29 x 55 in 3/8 OD Parts List 3/16 in Need to report a code bug in Scooby Doo? You can send an Qty. Part (s) email directly to DJ@spookypinball.com with the subject Set of coin door keys “Code Bug”... - Page 5 Game Assembly and Setup Rubber Rings may release with force. DO NOT CUT THE PLASTIC STRAP JUST YET! After the strap is free, you can lift the back box into position. Be mindful to make sure none of the wiring A With some assistance, lay the machine flat on the gets pinched while lifting the back box.
-
Page 6: Software Update Instructions
Allow the game to you can adjust this to your liking. fully boot into attract mode, otherwise the game will revert back to the previous code version the next time it turns on. Spooky Pinball... -
Page 7: Updating The Scooby Doo Base Image
It should automatically start. 5. You’ll see “Clonezilla” and it will take a fair while doing Need to report a code bug in Scooby Doo? You can send an things, so please be patient. Finally you’ll see a reboot email directly to DJ@spookypinball.com with the subject... -
Page 8: Chapter 2 Game Menu System
COIN VALUE v.RIGHT COIN VALUE LIGHTS vi.RESET CREDITS INDIVIDUAL LED TEST vii.ADD CREDIT TURN ON / OFF ALL LEDS ATTRACT TURN ON / OFF UPPER SPOTLIGHTS i.ATTRACT MODE (ON / OFF) TURN ON / OFF LOWER SPOTLIGHTS Spooky Pinball... - Page 9 CHANCE TO MATCH (%) TRAP DOOR BALL SAVE (ON / OFF) BALLS PER GAME (1-3) Need to report a code bug in Scooby Doo? You can send an email directly to DJ@spookypinball.com with the subject TILT WARNINGS (0-10) “Code Bug”...
-
Page 10: Cabinet Components
Chapter 3 Layouts and Schematics Cabinet Components Cabinet Switch Expander Shaker Motor Small Power Supply Amplifier Large Power Supply Service Outlet Power Splitter Board Tilt Bob Subwoofer Spooky Pinball... -
Page 11: Head Breakdown
Action Button/Light Power Switch/Fuse Cover 1.0.1 Head Breakdown Display Display Driver Board Knocker Speaker Back Box Lights Speaker LED Kit Topper /Speaker/Flipper LED Driver Board Computer Knocker/Shaker Expan- sion Board... -
Page 12: Apron
Apron Lockbar Receiver Screw the brass screws in to tighten the lockbar; unscrew to loosen. Spooky Pinball... -
Page 13: Playfield Underside
Playfield Underside Back Triple Drop Left VUK Trap Door Reset Warden Assembly Trap door Knock Magnet Left Flipper Trough Left Sling Auto Launcher Front Triple Drop... -
Page 14: Coin Door Inside
Right Flipper Right Sling Right Upper Sling Opto Board A Scooby Barrel Servo Opto Board B Right VUK Subway Coin Door Inside Spooky Pinball... -
Page 15: Mystery Machine (Mm) Mechanism
Mystery Machine (MM) Mechanism MM Opto 1 MM Opto 2 MM Opto 3 MM Opto 4 Eject Coil MM Exit... -
Page 16: Lcd Display
(VSDISPLAY Power Adapter, AC 100-240V Input to 12V DC,2A Output ,Power Supply, US Plug , Fit SC24W-1202000U jhd- ap024u-120200ba-a , Fit for All Types of VSDISPLAY LCD Controller Board) Goes into Standby Mode When No Input Signal Standby Mode power usage <1W. Spooky Pinball... -
Page 17: Large Power Supply
Large Power Supply Small Power Supply... -
Page 18: Shaker Motor
= Medium Shake ● One weight at 180 degree angle from the other counterweight = Low Shake 3. After you have made the adjustments, ensure the hex screws are good and tight. 4. Replace the protective cover. Spooky Pinball... -
Page 19: Hh-0009 Serial Rgb Led Layout
HH-0009 Serial RGB LED Layout HH-0009 Serial RGB LED Schematic HH-0014 GPIO Expander Layout... -
Page 20: Hh-0014 Gpio Expander Schematic
HH-0014 GPIO Expander Schematic HH-0014B GPIO Expander Layout Spooky Pinball... -
Page 21: Hh-0014B Gpio Expander Schematic
HH-0014B GPIO Expander Schematic... -
Page 22: Hh-0015 Scooby Location Bar Layout
HH-0015 Scooby Location Bar Layout Spooky Pinball... -
Page 23: Hh-0015 Scooby Location Bar Schematic
HH-0015 Scooby Location Bar Schematic... -
Page 24: Hh-0016 Scooby Left Orbit Layout
HH-0016 Scooby Left Orbit Layout Spooky Pinball... -
Page 25: Hh-0016 Scooby Left Orbit Schematic
HH-0016 Scooby Left Orbit Schematic... -
Page 26: Hh-0017 Scooby Right Orbit Layout
HH-0017 Scooby Right Orbit Layout Spooky Pinball... -
Page 27: Hh-0017 Scooby Right Orbit Schematic
HH-0017 Scooby Right Orbit Schematic... -
Page 28: Hh-0018 Scooby Center Led Panel Layout
HH-0018 Scooby Center LED Panel Layout Spooky Pinball... -
Page 29: Hh-0018 Scooby Center Led Panel Schematic
HH-0018 Scooby Center LED Panel Schematic... -
Page 30: Hh-0020 Led Harness Converter Layout
HH-0020 LED Harness Converter Layout HH-0020 LED Harness Converter Schematic HH-0022 Trough Opto-To-Switch Converter Layout Spooky Pinball... -
Page 31: Hh-0022 Trough Opto-To-Switch Converter Schematic
HH-0022 Trough Opto-To-Switch Converter Schematic HH-0023 Drop Bank LED Panel Layout... -
Page 32: Hh-0023 Drop Bank Led Panel Schematic
HH-0023 Drop Bank LED Panel Schematic Spooky Pinball... -
Page 33: Hh-0024 Scooby Upper Middle Led Panel Layout
HH-0024 Scooby Upper Middle LED Panel Layout... -
Page 34: Hh-0024 Scooby Upper Middle Led Panel Schematic
HH-0024 Scooby Upper Middle LED Panel Schematic Spooky Pinball... -
Page 35: Hh-0025 Scooby Left Cutler Footprint Layout
HH-0025 Scooby Left Cutler Footprint Layout HH-0025 Scooby Left Cutler Footprint Schematic... -
Page 36: Hh-0026 Scooby Right Cutler Footprint Layout
HH-0026 Scooby Right Cutler Footprint Layout HH-0026 Scooby Right Cutler Footprint Schematic Spooky Pinball... -
Page 37: Hh-0027 Scooby Upper Center Led Panel Layout
HH-0027 Scooby Upper Center LED Panel Layout HH-0027 Scooby Upper Center LED Panel Schematic... -
Page 38: Hh-0028 Scooby Upper Right Arrows Layout
HH-0028 Scooby Upper Right Arrows Layout Spooky Pinball... -
Page 39: Hh-0028 Scooby Upper Right Arrows Schematic
HH-0028 Scooby Upper Right Arrows Schematic HH-0029 Upper Outlane Arrows Layout... -
Page 40: Hh-0029 Upper Outlane Arrows Schematic
HH-0029 Upper Outlane Arrows Schematic HH-0030 Scooby Trap Door Layout Spooky Pinball... -
Page 41: Hh-0030 Scooby Trap Door Schematic
HH-0030 Scooby Trap Door Schematic HH-0031 Scooby Left Outlane Layout... -
Page 42: Hh-0031 Scooby Left Outlane Schematic
HH-0031 Scooby Left Outlane Schematic HH-0032 Scooby Right Outlane Layout Spooky Pinball... -
Page 43: Hh-0032 Scooby Right Outlane Schematic
HH-0032 Scooby Right Outlane Schematic HH-0034 Drop Bank Power Splitter Layout HH-0034 Drop Bank Power Splitter Schematic... -
Page 44: Hh-0000 Warden Root
HH-0000 Warden Root Spooky Pinball... -
Page 45: Hh-0000 Warden Inputs
HH-0000 Warden Inputs... -
Page 46: Hh-0000 Warden Uc
HH-0000 Warden uC Spooky Pinball... -
Page 47: Hh-0000 Warden Power
HH-0000 Warden Power... -
Page 48: Hh-0000 Warden Pwm Outputs
HH-0000 Warden PWM Outputs Spooky Pinball... -
Page 49: Hh-0000 Warden Led Out
HH-0000 Warden LED Out... -
Page 50: Hh-0000 Warden 48V0 Transistors
HH-0000 Warden 48V0 Transistors Spooky Pinball... -
Page 51: Hh-0000 Warden Aux Transistors
HH-0000 Warden AUX Transistors... -
Page 52: Hh-0000 Warden Rev 6 Diagram
HH-0000 Warden Rev 6 Diagram Spooky Pinball... -
Page 53: Populated Warden Board
Populated Warden Board... -
Page 54: Warden Board Fuse Locations
Warden Board Fuse Locations Need to report a code bug in Scooby Doo? You can send an email directly to DJ@spookypinball.com with the subject “Code Bug” Spooky Pinball... - Page 55 Scooby Doo’s Warden Board: Figure 4-1. Main Warden Board Connectors ● Multimeter with an ohms setting (preferably set to 20k) ● Scooby Doo Chart for reference (see table near end of document) ● Wire snips ● Insulating tape YOU ARE WORKING WITH SENSITIVE ELECTRONIC MATERIALS.
-
Page 56: Chapter 4. Diagnose A Bad Mosfet On The Warden Board
Diagnose a Bad MOSFET on the Warden Board 3. To test the MOSFETs, identify the Q8-Q30 MOSFETs A functioning MOSFET should display no on the main Warden board. resistance reading. If there is any reading, it indicates a faulty component. Test all Figure 4-2. - Page 57 Scooby Doo Coil Chart 6. To test the device, power on the machine. It should Spooky Support for Parts now function properly, except for the cutout coil that Option #1: Email service@spookypinball.com caused the issue. Option #2: If you don’t receive a reply within 2 business days, call Spooky Support (815-541-4940) to get the parts 7.
-
Page 58: Scooby Doo Coil Chart
18. Feed disconnected wires up through lower playfield cutout and you should be free! Need to report a code bug in Scooby Doo? You can send an email directly to DJ@spookypinball.com with the subject “Code Bug”... - Page 59 Scooby Doo Switch Chart Chapter 5 Switch and Coil Charts Scooby Doo Switch Chart Switch Banks Switch Bank 1 Switch Bank 2 Switch Bank 3 Left Spinner Grey NONE Grey Trough 1 Grey Right Spinner White Trap Door White White...
-
Page 60: Chapter 5. Scooby Doo Switch Chart
Scooby Doo Switch Chart Switch Banks Switch Bank 1 Switch Bank 2 Switch Bank 3 Left Outer Orbit Yellow Mystery Machine 2 Yellow Left Lock Orange Orange Mystery Machine Exit Ground Ground Black Ground Ground Black Cabinet Cabinet NONE NONE... -
Page 61: Scooby Doo Coil Chart
Note: Ensure safety precautions are taken, and the machine is disconnected from power during this process. Seek pro- fessional assistance if you are not comfortable or experienced in working with electronic components. Need to report a code bug in Scooby Doo? You can send an email directly to DJ@spookypinball.com with the subject “Code Bug”...
