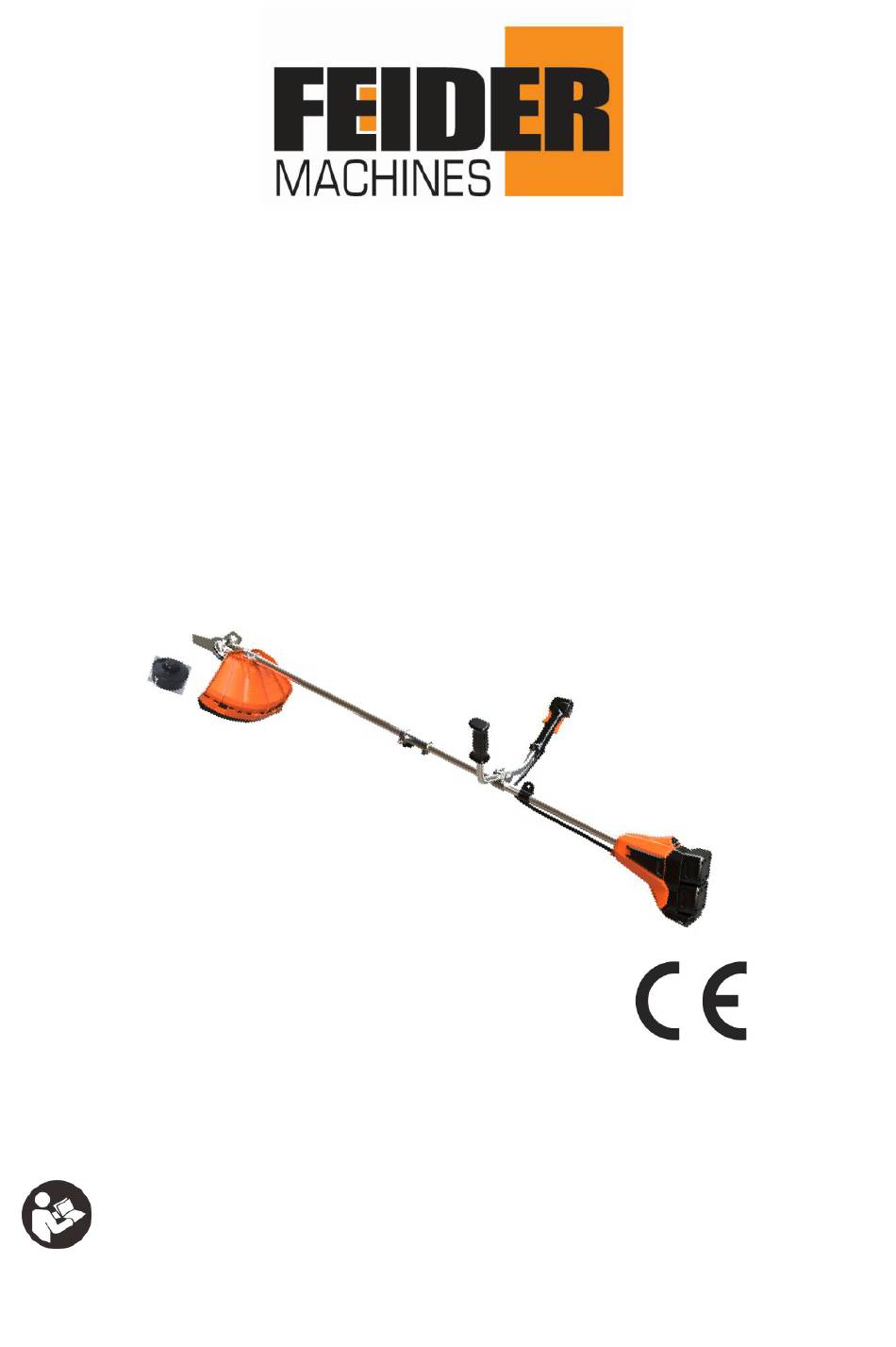

- Page 1 Cordless Brushcutter FDBEN220V ORIGINAL INSTRUCTION MANUAL BUILDER SAS 32, rue Aristide Bergès -ZI 31270 Cugnaux –France IMPORTANT: Please read the instruction manual before using.
-
Page 2: Operation
1. SAFETY WARNINGS IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE Safe operating practices Training a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine. b) Never allow children or people unfamiliar with these instructions to use the machine. - Page 3 b) Avoid using the machine in bad weather conditions especially when there is a risk of lightning. c) Use the machine only in daylight or good artificial light. d) Never operate the machine with damaged guards or shields or without guards or shields in place.
- Page 4 b) Use only the manufacturer’s recommended replacement parts and accessories. c) Inspect and maintain the machine regularly. Have machine repaired only authorized repairer. d) When not in use, store the machine out of the reach of children. - Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the...
- Page 5 - Do not to touch moving hazardous parts before the machine is stopped and the moving hazardous parts have come to a complete stop. - Always wear substantial footwear and long trousers while operating the machine. - Stay alert, watch what you are doing and use common sense when operating a power tool.
- Page 6 cutting attachment is installed correctly and securely fastened before each use. - Use only accessories recommended by manufacturer. Non-recommended accessories cause injuries accidents. Contact your dealer or our service agent. - Always use the harness provided when operating the tool. - Cover the blade with the blade protector before storing...
- Page 7 In case of damages or ageing, bring the tool to our agent service for inspection and reparation. - Check the tool for loose fasteners. Tighten safely loose fasteners. - Never operate the machine with defective guards or shields, or without safety devices.
- Page 8 - Cover the blade with the blade protector before storing unit during transportation in order to avoid damage or injury. - For transportation, secure the machine against movement or falling to prevent injury to persons or damage to the machine. - Use only original manufacturer’s replacement parts, accessories and attachments.
-
Page 9: Residual Risk
INSTRUCTIONS FOR CHARGER - This charger can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 10 arise in use and the operator should pay special attention to avoid the following: - Injury caused by vibration. Always use the right tool for the job, use designated handles and restrict working time and exposure. - Exposure to noise can cause hearing injury.
- Page 11 and forestry use. The product is not allowed to be used for cutting or chopping hedges, shrubs, bushes, flowers and compost. Symbols Read the instruction manual Warning symbol Do not expose the tool to rain or humidity Wear hearing protection and ocular protection and a helmet People must kept away from the work area...
- Page 12 Guarantee sound power level Do not use saw blade Be aware of blade thrust Wear protection gloves Wear protective and non-skid shoes Remove the battery before maintenance and repairs. Read the instructions size of the cutting blade...
- Page 13 Size of the cutting line Do not cutting the cutting mains – risk of injuries...
- Page 14 PRODUCT Battery cartridge Hanger Lock-off lever Switch trigger Handle Protector (cutting tool guard) Cutting tool Main power button Speed indicator Shoulder straps Technical data...
- Page 15 Machine mass Max.4.5 kg/4.4kg cutting attachments Blade: Ø255 x 1,4 mm (3 teethes blade) (type, diameter for Lawn trimmer: Ø420mm, PA6 1,5 mm (nylon blades), wire) Voltage (2x20V d.c.) Charger Model: FFC20U /NOT included Input:220-240Vac, 50/60Hz, 0,6A Output: 20 Vd.c., 2A Battery Battery Li-on /NOT included...
- Page 16 Sound power level Lawn trimmer - Lwa: 96 dB(A) Brushcutter Lwa: 96 dB(A)
- Page 17 3. FUNCTIONAL DESCRIPTION Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Failure to switch off and remove the battery cartridge may result in serious personal injury from accidental start-up. Installing or removing battery cartridge 1.
- Page 18 all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely. Always install the battery cartridge fully until the red indicator cannot be seen.
- Page 19 If the product does not operate even when the switches are operated, remove the batteries from the tool and charge the batteries. e. Remaining battery capacity indication 1. Check button 2.Battery indicator Press the check button to make the battery indicators show the remaining battery capacities.
- Page 20 Charge the battery g. Power switch action Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF” position when released. Operating a tool with a switch that does not actuate properly can lead to loss of control and serious personal injury.
- Page 21 To prevent the switch trigger from being accidentally pulled, a lock-off lever is provided. To start the tool, grasp the rear handle (the lock-off lever is released by the grasp) and then pull the switch trigger. To stop the tool, release the switch trigger. NOTE: The tool is automatically turned off after the tool is left one minute without any operations.
- Page 22 NOTE: If the nylon cord does not feed out while bumping the head, rewind/replace the nylon cord by following the procedures described under “Maintenance”. 4. ASSEMBLY Always be sure that the tool is switched off and battery cartridge is removed before carrying out any work on the tool.
- Page 23 b. Installing the guard Observe the applicable safety standards and use only the combination of tools/protective devices shown in the diagram. Always use original blade / nylon grass head -The blade must be fully polished without cracks or breakage. If the blade hits a rock during operation, immediately turn off the engine and inspect the blade.
- Page 24 -If the nylon cutter hits the stone during operation, immediately turn off the engine and check the nylon cutter. NOTE: For personal safety and in order to comply with accident prevention regulations, appropriate protective devices should always be installed. It is forbidden to operate the equipment without the guards installed.
- Page 25 When using a nylon cutter or blade, the protective device (4) should be loaded into the protective device (1) Installing blade/nylon cutter The blade or nylon grass head can be easily replaced by first turning the device upside down. -Insert the hex wrench into the hole in the gearbox and turn the washer (3) with a hex wrench until it locks.
- Page 26 Install the blade onto the shank so that the rail of the shims (3) engages the shaft hole in the blade. Install the clamp washer (2) and secure the insert with the nut/spring washer (1). [Tightening torque: 13-23N-m] Tighten Loose hex wrench...
- Page 27 Note: Gloves should be worn throughout the operation of the blade. Note: The nuts (and spring washers) that hold the blades are consumables. If the spring washer is worn or deformed, replace the nut. Note: When installing a nylon cutter, it is not necessary to use the blade presser (2) and the nut (1).
- Page 28 - Screw the nylon cutter onto the shaft. - Make sure the blade rotates counter clockwise. 5. Operating a. Correct operation of the tool Special care must be taken at all times to control the tool. Do not bias the tool towards itself or the work area. Failure to carefully control the machine may result in serious injury to the tool operator or nearby personnel.
- Page 29 Fixed shoulder strap 1.Shoulder strap 2.Hanger - Hang the shoulder strap on your left shoulder. Make sure it does not...
-
Page 30: Maintenance
fall off easily when pulled. Hang the tool as shown. d. Adjust the position of hanger and shoulder strap - To change the position of the hanger, use the included wrench to loosen the set screw on the hanger and then move the hanger. 6. - Page 31 Take off cover from housing, pressing two latches which are slotted section oppositely on side of housing. 1.80-100mm...
- Page 32 Hook the middle of the new nylon cord to the notch located at the center of the spool between the 2 channels provided for the nylon cord. Wind both ends firmly around the spool in the direction marked on the head for right hand direction indicated by RH. Wind all but about 100 mm of the cords, leaving the ends temporarily...
- Page 33 hooked through a notch on the side of the spool. Mount the spool on the cover so that the grooves and protrusions on the spool match up with those on the cover. Now, unhook the ends of the cord from their temporary position and feed the cords through the eyelets to come out of the cover.
- Page 34 7. TROUBLE SHOOTING Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask BUILDER Authorized Service Centers, always using BUILDER replacement parts for repairs.
- Page 35 8. Warranty We guarantee this product for 2 full years. The warranty period for this item starts on the day of purchase. You can prove the date of purchase by sending us the original receipt. We insure over the entire warranty period:...
- Page 36 • Free repair of possible malfunctions. • Free replacement of damaged parts. • Including the free service of our specialized personnel (i.e. free assembly by our technicians) Provided that the damage is not due to improper use of the device. To help you with your product, we invite you to use this link or call us on +33 (0)9 70 75 30 30: https://services.swap-europe.com/contact...
- Page 37 ZI, 32, rue Aristide Bergès – 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machine: Cordless Brushcutter FDBEN220V Serial No: 20191234619-20191234818 The people name holding the technical file：Mr Olivier Patriarca Have been designed in compliance with the following standards: EN ISO 11806-1:2011;...
