Feider Machines FDBEN220V-1 Original Instruction Manual

Cordless brushcutter
Hide thumbs

Advertisement

Table of Contents

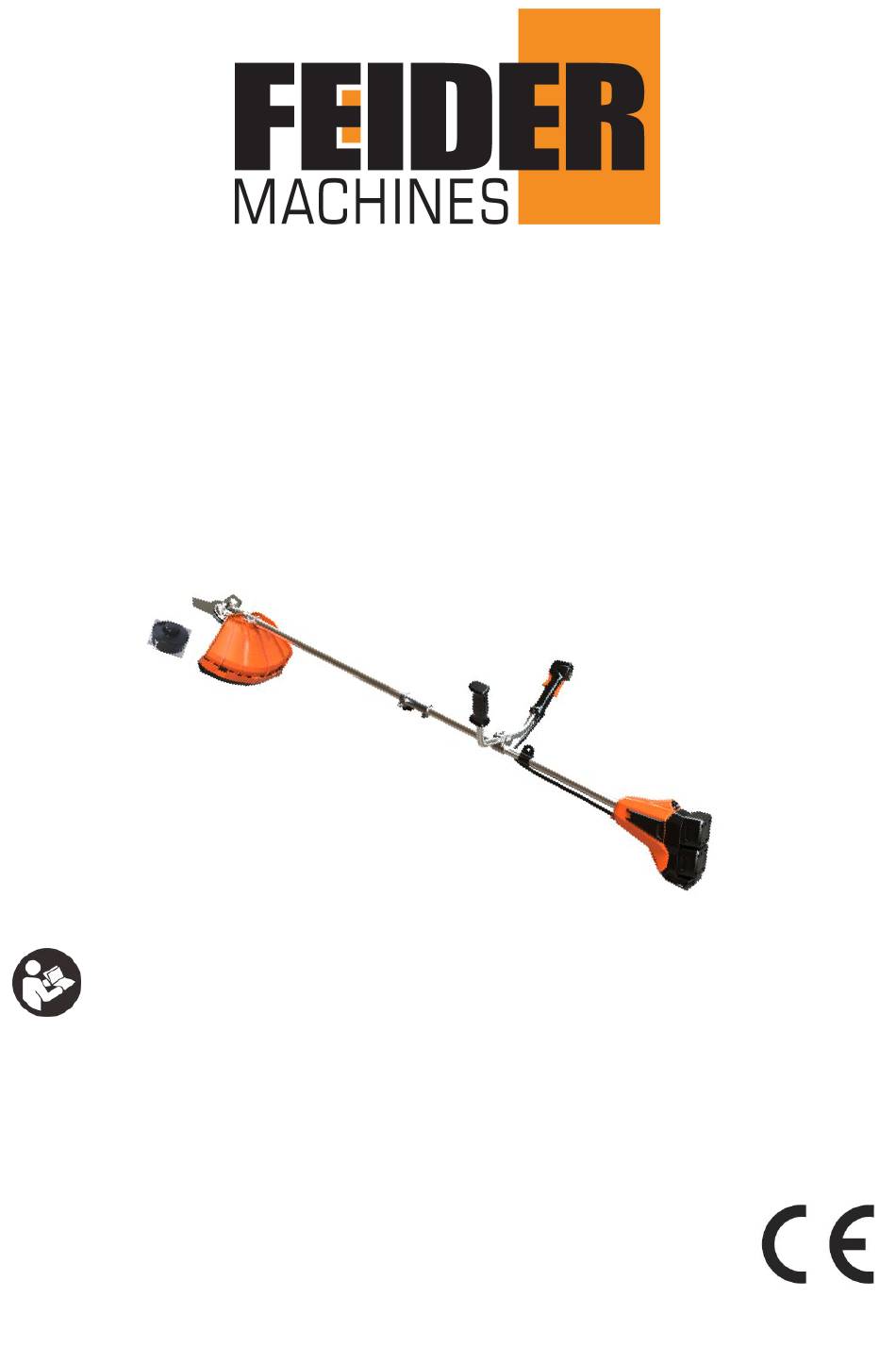

Cordless Brushcutter
FDBEN220V-1
ORIGINAL INSTRUCTION MANUAL
IMPORTANT: Please read the instruction manual before
using.
BUILDER SAS
32, rue Aristide Bergès -ZI 31270 Cugnaux –France
MADE IN PRC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDBEN220V-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Feider Machines FDBEN220V-1

Summary of Contents for Feider Machines FDBEN220V-1

  • Page 1 Cordless Brushcutter FDBEN220V-1 ORIGINAL INSTRUCTION MANUAL IMPORTANT: Please read the instruction manual before using. BUILDER SAS 32, rue Aristide Bergès -ZI 31270 Cugnaux –France MADE IN PRC...
  • Page 2 1. SAFETY WARNINGS IMPORTANT READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE Safe operating practices Training a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine. b) Never allow children or people unfamiliar with these instructions to use the machine.
  • Page 3 b) Avoid using the machine in bad weather conditions especially when there is a risk of lightning. c) Use the machine only in daylight or good artificial light. d) Never operate the machine with damaged guards or shields or without guards or shields in place.
  • Page 4 b) Use only the manufacturer’s recommended replacement parts and accessories. c) Inspect and maintain the machine regularly. Have machine repaired only authorized repairer. d) When not in use, store the machine out of the reach of children. - Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the...
  • Page 5 - Do not to touch moving hazardous parts before the machine is stopped and the moving hazardous parts have come to a complete stop. - Always wear substantial footwear and long trousers while operating the machine. - Stay alert, watch what you are doing and use common sense when operating a power tool.
  • Page 6 cutting attachment is installed correctly and securely fastened before each use. - Use only accessories recommended by manufacturer. Non-recommended accessories cause injuries accidents. Contact your dealer or our service agent. - Always use the harness provided when operating the tool. - Cover the blade with the blade protector before storing...
  • Page 7 In case of damages or ageing, bring the tool to our agent service for inspection and reparation. - Check the tool for loose fasteners. Tighten safely loose fasteners. - Never operate the machine with defective guards or shields, or without safety devices.
  • Page 8 - Cover the blade with the blade protector before storing unit during transportation in order to avoid damage or injury. - For transportation, secure the machine against movement or falling to prevent injury to persons or damage to the machine. - Use only original manufacturer’s replacement parts, accessories and attachments.

  • Page 9: Residual Risk

    INSTRUCTIONS FOR CHARGER - This charger can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 10 - Injury caused by vibration. Always use the right tool for the job, use designated handles and restrict working time and exposure. - Exposure to noise can cause hearing injury. Wear ear protection and limit exposure. - Kickback can occur when using the brushcutter.
  • Page 11 Symbols Read the instruction manual Warning symbol Do not expose the tool to rain or humidity Wear hearing protection and ocular protection and a helmet People must kept away from the work area Bystanders shall be at least 15 m from the operating area Guarantee sound power level...
  • Page 12 Do not use saw blade Be aware of blade thrust Wear protection gloves Wear protective and non-skid shoes Remove the battery before maintenance and repairs. Read the instructions size of the cutting blade Size of the cutting line Do not cutting the cutting mains – risk of injuries...
  • Page 13 2. PRODUCT Battery cartridge Hanger Lock-off lever Switch trigger Handle Protector (cutting tool guard) Cutting tool Main power button Speed indicator Shoulder straps...
  • Page 14 Technical data Machine mass Max. 6.46kg cutting attachments Blade: Ø255 x 1,5 mm (3 teethes blade) (type, diameter for Lawn trimmer: Ø380mm, PA6 1,6 mm blades), (nylon wire) Voltage (2x20V d.c.) Charger Model: FFC20U /NOT included Input:220-240Vac, 50/60Hz, 0,6A max Output: 20 Vd.c., 2A Battery Battery Li-on...

  • Page 15: Functional Description

    Informations The total declared vibration value was measured using a standard test method and can be used to compare one tool with another. The total declared vibration value can also be used in a preliminary exposure estimate. Warning The emission of vibration during actual use of the machine tool may differ from the total declared value depending on how the tool is used.
  • Page 16 The battery pack can become a little warm during the charging. This is normal. If the battery pack fails to charge, check: Voltage at the power socket  Whether there is good contact at the charging contacts.  Whether the battery pack is warm or not, The battery protection ...
  • Page 17 1 LED is lit: The battery will be empty soon, please recharge the battery. Charger indicator Indicator Explanations and actions status Ready for use The charger is connected to the mains and is ready for use; there is no battery pack in the charger. Charging The charger is charging the battery pack in charge mode.
  • Page 18 Installing or removing battery cartridge 1. Button 2. Battery cartridge Always switch off the tool before installing or removing of the battery cartridge. • Hold the tool and the battery cartridge firmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridge firmly may cause them to slip off your hands and result in damage to the tool and battery cartridge and a personal injury.
  • Page 19 • Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly. NOTE: The tool does not work with only one battery cartridge. Tool / battery protection system The tool is equipped with a tool/battery protection system. This system automatically cuts off power to the motor to extend tool and battery life.
  • Page 20 1. Check button 2.Battery indicator Press the check button to make the battery indicators show the remaining battery capacities. The battery indicators correspond to each battery. Power switch action Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF”...
  • Page 21 Press and hold the main power button for some seconds to turn on the tool. To turn off the tool, press and hold the main power button again. 1. Lock-off lever 2. Switch trigger To prevent the switch trigger from being accidentally pulled, a lock-off lever is provided.
  • Page 22 The nylon cutting head is a dual string trimmer head provided with a bump & feed mechanism. To cause the nylon cord to feed out, the cutting head should be bumped against the ground while rotating. NOTE: If the nylon cord does not feed out while bumping the head, rewind/replace the nylon cord by following the procedures described under “Maintenance”.
  • Page 23 -Place the handle on the handle frame. When facing the tool, the lever must be on the right side. -Attach the handle end to the handle frame and attach the clip to it. Use four bolts to loosen it for adjustment. -Adjust the handle angle and tighten all bolts evenly with a hex wrench.
  • Page 24 -The blade must be fully polished without cracks or breakage. If the blade hits a rock during operation, immediately turn off the engine and inspect the blade. -Grind or replace the blade every three hours of operation. -If the nylon cutter hits the stone during operation, immediately turn off the engine and check the nylon cutter.
  • Page 25 When using a nylon cutter or blade, the protective device (4) should be loaded into the protective device (1) Installing blade/nylon cutter The blade or nylon grass head can be easily replaced by first turning the device upside down. -Insert the hex wrench into the hole in the gearbox and turn the washer (3) with a hex wrench until it locks.
  • Page 26 Install the blade onto the shank so that the rail of the shims (3) engages the shaft hole in the blade. Install the clamp washer (2) and secure the insert with the nut/spring washer (1). [Tightening torque: 13-23N-m] Tighten Loose hex wrench Note: Gloves should be worn throughout the operation of the blade.
  • Page 27 Note: The nuts (and spring washers) that hold the blades are consumables. If the spring washer is worn or deformed, replace the nut. Note: When installing a nylon cutter, it is not necessary to use the blade presser (2) and the nut (1). The nylon cutter should be located above the gasket (3).
  • Page 28 - Make sure the blade rotates counter clockwise. 5. Operating a. Correct operation of the tool Special care must be taken at all times to control the tool. Do not bias the tool towards itself or the work area. Failure to carefully control the machine may result in serious injury to the tool operator or nearby personnel.
  • Page 29 Fixed shoulder strap 1.Shoulder strap 2.Hanger - Hang the shoulder strap on your left shoulder. Make sure it does not fall off easily when pulled. Hang the tool as shown.

  • Page 30: Maintenance

    d. Adjust the position of hanger and shoulder strap - To change the position of the hanger, use the included wrench to loosen the set screw on the hanger and then move the hanger. 6. MAINTENANCE Always be sure that the tool is switched off and battery cartridge is removed before attempting to perform inspection or maintenance on the tool.
  • Page 31 Take off cover from housing, pressing two latches which are slotted section oppositely on side of housing. 1.80-100mm Hook the middle of the new nylon cord to the notch located at the center of the spool between the 2 channels provided for the nylon cord.
  • Page 32 Wind both ends firmly around the spool in the direction marked on the head for right hand direction indicated by RH. Wind all but about 100 mm of the cords, leaving the ends temporarily hooked through a notch on the side of the spool. Mount the spool on the cover so that the grooves and protrusions on the spool match up with those on the cover.
  • Page 33 Align the protrusion on the underside of the cover with the slots of the eyelets. Then push the cover firmly onto the housing to secure it. Make sure the latches fully spread in the cover.

  • Page 34: Troubleshooting

    7. TROUBLE SHOOTING Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask BUILDER Authorized Service Centers, always using BUILDER replacement parts for repairs.
  • Page 35 8. DISPOSAL Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection points provided for this purpose.

  • Page 36: Declaration Of Conformity

    ZI, 32, rue Aristide Bergès – 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machine: Cordless Brushcutter FDBEN220V-1 Serial No: 20210751755-20210752054 The people name holding the technical file：Mr Olivier Patriarca Have been designed in compliance with the following standards: EN ISO 11806-1:2011;...

  • Page 37: Warranty

    10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor.

  • Page 38: Product Failure

    11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 39: Warranty Exclusions

    12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
