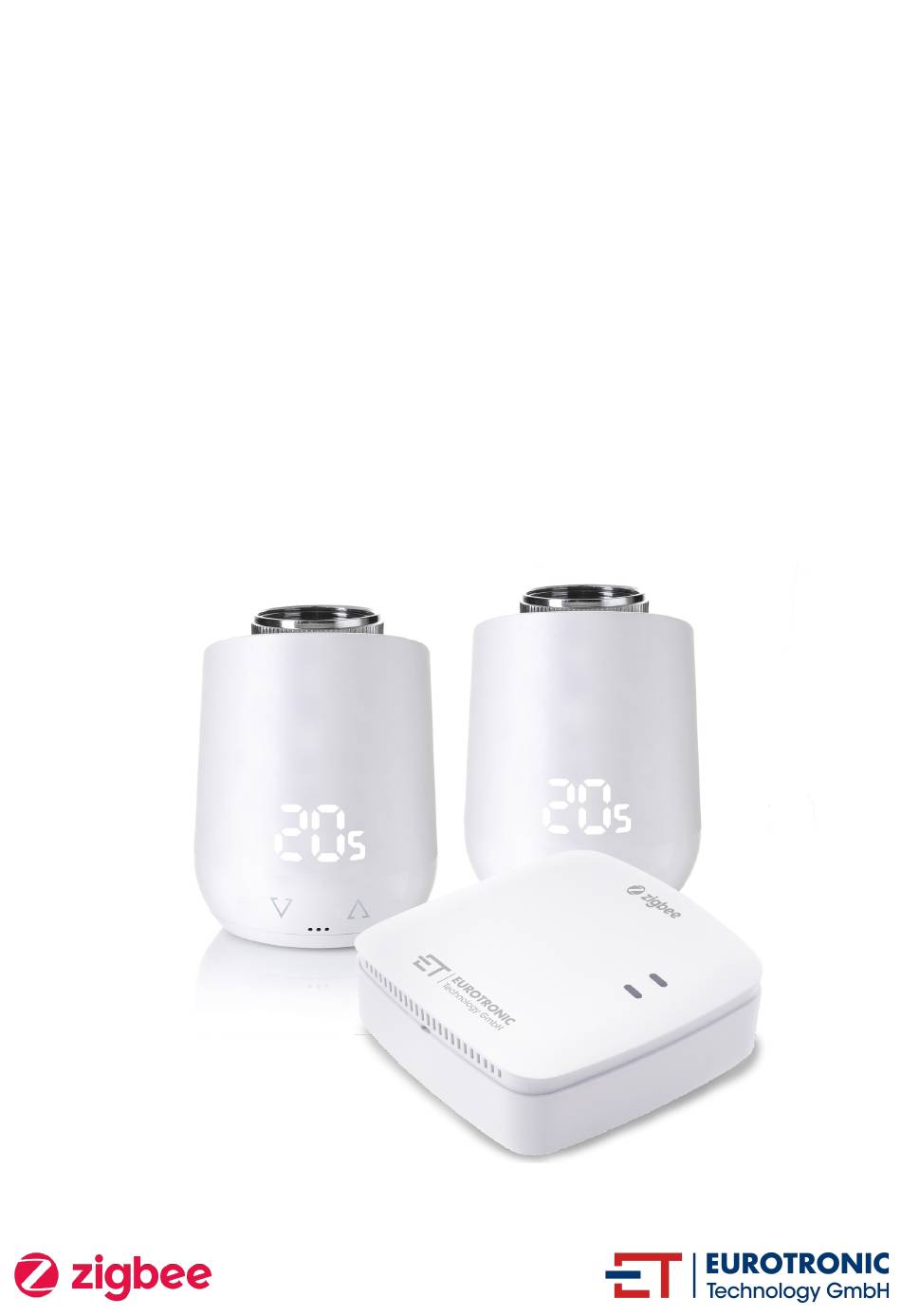

Energy-Saving Controller
Comet ZigBee -Starter Set-
OPERATING INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Comet ZigBee -Starter Set and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eurotronic Comet ZigBee -Starter Set

Summary of Contents for Eurotronic Comet ZigBee -Starter Set

  • Page 1 Energy-Saving Controller Comet ZigBee -Starter Set- OPERATING INSTRUCTIONS...
  • Page 2 Comet ZigBee -Starter Set- LEGAL NOTICE Operating Instructions Energy-Saving Controller Comet ZigBee - Starter Set - Manufacturer Status 2024.04 Version 1.0 / EN EUROtronic Technology GmbH Südweg 1 36396 Steinau-Ulmbach Germany www.eurotronic.org Publisher Ingenieurbüro FORMAT GmbH Ebertstraße 80 26382 Wilhelmshaven Germany www.format-docu.de...

  • Page 3: Table Of Contents

    Comet ZigBee -Starter Set- CONTENTS This operating manual provides assistance for starting up and using the Comet ZigBee and ET Home Link gateway. Read this operating manual carefully and thoroughly before you start to use the Comet ZigBee and ET Home Link gateway. Keep this operating manual in a safe place and hand over all documents when passing the equipment on to third parties.
  • Page 4 Comet ZigBee -Starter Set- Further Functions of the Comet ZigBee ........... . 55 Disconnecting the ZigBee Connection .

  • Page 5: Safety Information

    Comet ZigBee -Starter Set- Safety Information SAFETY INFORMATION In addition to the safety information in these operating instructions, all other available sources must also be observed. The areas of use defined in the written explanations of the intended use must be observed.

  • Page 6: Warnings

    Comet ZigBee -Starter Set- Safety Information WARNINGS When operating the Comet ZigBee and its components, risks may arise that can be avoided by observing the following warnings. WARNING! Danger of electric shock! Improper handling of the product can lead to injuries.
  • Page 7 Comet ZigBee -Starter Set- Safety Information CAUTION! Risk of injury through exploding or leaking batteries! Improper handling of batteries can lead to an explosion. Only use batteries of the type specified. Î Never attempt to charge non-rechargeable batteries. Î Switch the device off and remove the batteries if the device will not be used for a longer period.
  • Page 8 Only use the Comet ZigBee and ET Home Link gateway in a dry, dust-free environment. Î IMPORTANT! Material damage and malfunction possible! Damaged components and/or malfunctions prevent the Comet ZigBee and ET Home Link gateway from working properly. If material damage and/or malfunctions occur, contact the Customer Service of Eurotronic Î Technology GmbH.

  • Page 9: Scope Of Delivery

    Material damage and malfunction possible! Damaged components and/or malfunctions prevent the Comet ZigBee and Gateway ET Home Link from working properly. If material damage and/or malfunctions occur, contact the Customer Service of Eurotronic Î Technology GmbH. *When using the RAV adapter, the RAV pin is required to extend the valve plunger.

  • Page 10: Overview

    Overview OVERVIEW Thank you for choosing a product from EUROtronic Technology GmbH. Your Comet ZigBee is an ener- gy-saving controller for radiators equipped with the ZigBee wireless standard providing modern, simple operation. It is connected to your ET Home Link gateway and automatically regulates your room tempera- ture according to your specifications and is configurable, either directly on the thermostat or conveniently with a smartphone via the ET HomeLink app.

  • Page 11: Controls And Display Elements

    Comet ZigBee -Starter Set- Controls and Display Elements CONTROLS AND DISPLAY ELEMENTS The following section describes the operating and display elements on the Comet ZigBee and ET Home Link gateway. Wi-Fi Zigbee Union nut Wi-Fi LED + button (increase temperature)

  • Page 12: Operating Elements

    Comet ZigBee -Starter Set- Controls and Display Elements OPERATING ELEMENTS COMET ZIGBEE Button Action Function Press briefly Lower the temperature by 0.5 °C. Lower the temperature by 0.5 °C, then lower the Press and keep pressed temperature by 0.5 °C every 0.5 sec. until the lowest temperature is reached or the button is released.

  • Page 13: Comet Zigbee Display Elements

    Comet ZigBee -Starter Set- Controls and Display Elements COMET ZIGBEE DISPLAY ELEMENTS Symbol Designation Function Indicates a communication connection or a pairing process. If the Radio symbol symbol is not displayed, there is no radio communication. Pairing mode Indicates pairing mode is active in order to connect the device with (inclusion) a gateway.

  • Page 14: Home Link Gateway Display Elements

    Comet ZigBee -Starter Set- Controls and Display Elements ET HOME LINK GATEWAY DISPLAY ELEMENTS WI-FI LED Status Colour Function Configuration mode is active. The gateway can be Configuration mode Flashes green/yellow added to the app. Flashes green/yellow 2× Establishing a connection The gateway is connecting to the server.

  • Page 15: Zigbee Led

    Comet ZigBee -Starter Set- Controls and Display Elements ZIGBEE LED Status Colour Function Flashes yellow/green, The gateway searches for ZigBee devices which Search briefly, every 2 seconds are available. Flashes green/yellow Establishing a connection The ZigBee network is being established.

  • Page 16: Putting Into Operation

    Comet ZigBee -Starter Set- Putting into Operation PUTTING INTO OPERATION The following preparations must be completed prior to assembly: Install the ET HomeLink app on your smartphone. • • Connect your ET Home Link gateway to the app. • Connect your Comet ZigBee to your gateway.

  • Page 17: Installing The Et Homelink App

    Comet ZigBee. Open the app on your smartphone and follow the instructions. Create a new user account to use the app. Please note that existing user accounts from Eurotronic Smart Living 2.0 are not compatible. The main view, My Home, appears on the screen.

  • Page 18: Connect The Gateway With The App

    Comet ZigBee -Starter Set- Putting into Operation CONNECT THE GATEWAY WITH THE APP The following sections describe how to add your ET Home Link gateway to the app. 5.2.1 ADDING THE GATEWAY Tap on the button to add a new device.

  • Page 19: Selecting Network

    Comet ZigBee -Starter Set- Putting into Operation 5.2.2 SELECTING NETWORK The WiFi network to which your smartphone is connected is automatically displayed. If necessary, you can integrate the ET Home Link gateway in another Wi-Fi network. To do this, close the app and con- nect your smartphone to the required Wi-Fi network.

  • Page 20: Connecting The Gateway To The Power Supply

    Comet ZigBee -Starter Set- Putting into Operation 5.2.3 CONNECTING THE GATEWAY TO THE POWER SUPPLY Connect the ET Home Link gateway to a suitable power socket using the micro-USB cable and an appropriate USB power adapter, as illustrated. INFORMATION No USB power adapter is contained in the package supplied. Use an appropriate USB power adapter...

  • Page 21: Configuring Your Gateway

    Comet ZigBee -Starter Set- Putting into Operation 5.2.4 CONFIGURING YOUR GATEWAY The ET Home Link gateway is now automatically in Configuration mode. When Configuration mode is acti- vated, the ZigBee LED lights up green/yellow continuously and the Wi-Fi LED flashes green/yellow.
  • Page 22 Comet ZigBee -Starter Set- Putting into Operation Tap on the Configuration mode required: NFC, continue with Section Configuration with NFC on Page 23 WiFi, continue with Section Configuration using Wi-Fi on Page 25...
  • Page 23 Comet ZigBee -Starter Set- Putting into Operation CONFIGURATION WITH NFC After selecting the NFC option, follow the subsequent instructions. The NFC function ("Near Field Commu- nication") enables compatible devices nearby to exchange data with each other by implementing wireless communication.
  • Page 24 Comet ZigBee -Starter Set- Putting into Operation Wait until the configuration process has been completed. When the configuration process has been completed, tap on the Next button.
  • Page 25 Comet ZigBee -Starter Set- Putting into Operation CONFIGURATION USING WI-FI After selecting the Wi-Fi option, follow the subsequent instructions. The process differs according to the operating system (Android, iOS) used on your smartphone. The follow- ing instructions describe the procedure for Android.
  • Page 26 Comet ZigBee -Starter Set- Putting into Operation Tap the Next button. Wait until the configuration process has been completed. When the configuration process has been completed, tap on the Next button.

  • Page 27: Concluding Configuration Of The Gateway

    Comet ZigBee -Starter Set- Putting into Operation 5.2.5 CONCLUDING CONFIGURATION OF THE GATEWAY Assign an unambiguous name for the ET Home Link gateway. The name appears in the app. Tap the Save button. You have completed configuration of the ET Home Link gateway successfully. During the next step, Î...

  • Page 28: Connecting The Comet Zigbee

    Comet ZigBee -Starter Set- Putting into Operation CONNECTING THE COMET ZIGBEE The following sections describe how to add your Comet ZigBee to the gateway and the app. 5.3.1 ADDING THE COMET ZIGBEE Ensure that the following conditions are fulfilled: •...
  • Page 29 Comet ZigBee -Starter Set- Putting into Operation Tap on the Add Comet ZigBee button. Then follow the steps displayed in the setup wizard to set up your Comet ZigBee for initial operation. INFORMATION If any errors occur (e.g. C1), press the - button or + button to confirm the error message and repeat the process.

  • Page 30: Inserting Batteries

    Comet ZigBee -Starter Set- Putting into Operation 5.3.2 INSERTING BATTERIES Open the battery compartment cover. Insert the batteries provided as shown. Pay attention to the correct polarity and do not use rechargeable batteries! Close the battery compartment cover. The battery compartment cover audibly clicks into place.

  • Page 31: Configuring The Comet Zigbee

    Comet ZigBee -Starter Set- Putting into Operation 5.3.3 CONFIGURING THE COMET ZIGBEE PA appears in the display of the Comet ZigBee and the radio symbol flashes. A countdown indicator ap- pears in the display. Tap the Next button. INFORMATION If any errors occur (e.g. C1), press the - button or + button to confirm the error message and repeat...

  • Page 32: Selecting The Gateway

    Comet ZigBee -Starter Set- Putting into Operation 5.3.4 SELECTING THE GATEWAY Tap on the required gateway (e.g. ET Home Link). Tap on the Scan button to add the Comet ZigBee to the gateway selected. A corresponding message appears when the process is successful.
  • Page 33 Comet ZigBee -Starter Set- Putting into Operation INFORMATION If any errors occur (e.g. C1), press the - button or + button to confirm the error message and repeat the process. When Ad appears in the display, install the Comet ZigBee on the radiator (see  Section 5.3.5 In-...

  • Page 34: Installing On Rddiator

    Putting into Operation 5.3.5 INSTALLING ON RADIATOR When Ad appears in the display, install the Comet ZigBee on the radiator required. The Comet ZigBee can be installed on all known valve bodies (see adapter list at www.eurotronic.org/ service/faq). CAUTION!: Burns caused by hot radiator valve! Touching can cause burns to the hand.
  • Page 35 Comet ZigBee -Starter Set- Putting into Operation Position your Comet ZigBee on the radiator and turn the union nut clockwise. You have successfully installed your Comet ZigBee. Î Following installation, start the adaptation, see  Section 5.3.6 Adaptation on Page 36.

  • Page 36: Adaptation

    Comet ZigBee -Starter Set- Putting into Operation 5.3.6 ADAPTATION After successful installation, your Comet ZigBee can begin with the adaptation. The condition is that Ad is shown in the display of your Comet ZigBee. To start the adaptation, simultaneously press and hold the + button and - button on the Comet ZigBee for approx.

  • Page 37: Naming And Assigning Comet Zigbee

    Comet ZigBee -Starter Set- Putting into Operation 5.3.7 NAMING AND ASSIGNING COMET ZIGBEE After successful installation and adaptation, you can assign the Comet ZigBee a name in the app and assign the Comet ZigBee to a room. Enter a name for your Comet ZigBee in the input field.
  • Page 38 Comet ZigBee -Starter Set- Putting into Operation Select a symbol for the room. Enter a name for the room. Tap the Save button. You have named your Comet ZigBee and assigned it to a room successfully. Î Your Comet ZigBee is now fully configured and ready to use.

  • Page 39: Operation And Functions

    Comet ZigBee -Starter Set- Operation and functions OPERATION AND FUNCTIONS When the device has been installed and started up successfully, you can define further settings in the ET HomeLink app. From the start screen, you have access to the menu bar and all the rooms that have been configured.
  • Page 40 Comet ZigBee -Starter Set- Operation and functions The following functions are available in the menu bar: • Start screen (My Home) • Gateways, see  Section 6.1 Operating the ET Home Link Gateway on Page 41 • Heating plans, see  Section 6.2.3 Heating profile on Page 47 •...

  • Page 41: Operating The Et Home Link Gateway

    Comet ZigBee -Starter Set- Operation and functions OPERATING THE ET HOME LINK GATEWAY You can operate your ET Home Link gateway via the ET HomeLink app. Tap on the Gateway menu option. Tap on the tile of the ET Home Link gateway to open a detail view of the device with further informa- tion.
  • Page 42 Comet ZigBee -Starter Set- Operation and functions Tap on the Edit button in order to edit details of the ET Home Link gateway. Tap on the Delete button to delete the ET Home Link gateway from the app. INFORMATION If you delete the ET Home Link gateway from the app, all the Comet ZigBees connected via the app (and other devices connected) are also deleted from the app.

  • Page 43: Operating The Comet Zigbee

    Comet ZigBee -Starter Set- Operation and functions OPERATING THE COMET ZIGBEE You can operate your Comet ZigBee via the ET HomeLink app. Tap on the Home menu option. Tap on the Menu button. An additional menu appears. Î Tap on the Edit button to edit the name of the room.

  • Page 44: Setting Temperature In A Room

    Comet ZigBee -Starter Set- Operation and functions 6.2.1 SETTING TEMPERATURE IN A ROOM You can set the temperature for each room individually. After selecting a room, set the desired tempera- ture for the room or radiator. Tap on the desired room (e.g. office).
  • Page 45 Comet ZigBee -Starter Set- Operation and functions Make additional settings: Heating profile off: The menu displays all Comet ZigBees that are The stored heating profile is not active. assigned to the current room. You can define Heating profile on: further settings for the selected Comet ZigBee, The stored heating profile is active.

  • Page 46: Device Settings

    Comet ZigBee -Starter Set- Operation and functions 6.2.2 DEVICE SETTINGS In the menu of a room (see  Section 6.2.1 Setting temperature in a room on Page 44.) you have access to all the Comet ZigBees assigned to the room. You have access to further settings and information...

  • Page 47: Heating Profile

    Comet ZigBee -Starter Set- Operation and functions 6.2.3 HEATING PROFILE In the Heating profile menu, you set heating blocks with heating times for different days. You can set the temperature individually for each heating time. CREATING A HEATING PLAN Tap on the Heating plans menu option.
  • Page 48 Comet ZigBee -Starter Set- Operation and functions Tap on one or more rooms for which the heating profile is to apply. Tap the Next button. Enter a designation for the heating profile in the input field. Tap the Next button.
  • Page 49 Comet ZigBee -Starter Set- Operation and functions EDITING OR DELETING A HEATING PLAN Option: Tap on the Menu button. An additional menu appears. Î Tap on the Edit button to edit the details of the heating plan. Tap on the Delete button to delete the heating plan.
  • Page 50 Comet ZigBee -Starter Set- Operation and functions Set the target temperature for the selected Add a new heating time. switching point. Delete the selected heating time. Set the starting time of the selected heating time. Save the settings. Select the period of the current heating block.

  • Page 51: Absence Plan

    Comet ZigBee -Starter Set- Operation and functions 6.2.4 ABSENCE PLAN Use the Away menu to define a holiday plan for a period of absence. You can set the temperature individ- ually for each switching point. Tap on the Away button.
  • Page 52 Comet ZigBee -Starter Set- Operation and functions Enter a name for the absence plan in the input field. Tap the Next button. Select a symbol for the absence plan. Tap the Save button.
  • Page 53 Comet ZigBee -Starter Set- Operation and functions Option: Tap on the Menu button. An additional menu appears. Î Tap on the Edit button to edit the details of the absence plan. Tap on the Delete button to delete the absence plan.
  • Page 54 Comet ZigBee -Starter Set- Operation and functions Overview of which rooms should be assigned Save the settings. to the holiday plan. Activate/Deactivate the holiday plan. Set the Away temperature for the period of absence. INFORMATION Note that the settings are only transferred to the corresponding Comet ZigBee, and thus activated, by tapping on the Save button.

  • Page 55: Further Functions Of The Comet Zigbee

    Comet ZigBee -Starter Set- Operation and functions FURTHER FUNCTIONS OF THE COMET ZIGBEE MANUAL OPERATION It is possible to change the temperature manually using the buttons on the Comet ZigBee. The temper- ature range is between 8 - 28 °C. the temperature is increased or reduced beyond the limits, the Comet ZigBee switches to Boost mode of Off mode.

  • Page 56: Disconnecting The Zigbee Connection

    Comet ZigBee -Starter Set- Operation and functions DISCONNECTING THE ZIGBEE CONNECTION It may become necessary to disconnect the connection between the Comet ZigBee and ET Home Link gateway. Ensure that the following condition is fulfilled: • The batteries have been inserted in the Comet ZigBee.
  • Page 57 Comet ZigBee -Starter Set- Operation and functions Tap on the Delete button. The connection to the ET Home Link gateway is disconnected. Î PA appears in the display of the Comet ZigBee. Î INFORMATION If Er appears in the display, repeat the process.

  • Page 58: Resetting The Default Factory Settings

    Comet ZigBee -Starter Set- Operation and functions RESETTING THE DEFAULT FACTORY SETTINGS INFORMATION Please note that the devices continue to be listed in the ET HomeLink app after resetting the default factory settings but no connection is possible. Remove the devices from the app manually.

  • Page 59: Disassembly

    Comet ZigBee -Starter Set- Disassembly DISASSEMBLY If necessary, you can disassemble the Comet ZigBee from the radiator valve. Ensure that the following conditions are fulfilled: • The batteries have been inserted in the Comet ZigBee. • The connection to the ZigBee controller has been disconnected, see  Section 6.4 Disconnecting the ZigBee Connection on Page 56.

  • Page 60: Troubleshooting

    Comet ZigBee -Starter Set- Troubleshooting TROUBLESHOOTING Problems can arise with the Comet ZigBee. The following information will help you clear any errors. INFORMATION The list below describes errors in the Comet ZigBee. In the case of errors with the ET Home Link gateway, observe the information on the control lamps, see ...
  • Page 61 Comet ZigBee -Starter Set- Troubleshooting Problem Cause Remedy The batteries are weak. • Change the batteries.

  • Page 62: Cleaning And Storage

    Comet ZigBee -Starter Set- Cleaning and Storage CLEANING AND STORAGE Switch the Comet ZigBee off and remove the batteries if you will not be using your Comet ZigBee for a longer period of time. Disconnect the ET Home Link gateway from the power supply if you will not be using the ET Home Link gateway for a longer period of time.

  • Page 63: Appendix

    Comet ZigBee -Starter Set- Appendix 10 APPENDIX The following sections contain information on technical data, customer service and other legal informa- tion. 10.1 TECHNICAL DATA The list below contains technical data concerning the ET Home Link gateway: Designation ET Home Link gateway...
  • Page 64 Comet ZigBee -Starter Set- Appendix The list below contains technical data concerning the Comet ZigBee: Designation Comet ZigBee 700227 Article number Supply voltage 2 × batteries, 1.5 V AA/LR6 Threaded connection M30 × 1.5 mm Method of operation Type 1 Dimensions 62 ×...

  • Page 65: Adapter Overview

    Comet ZigBee -Starter Set- Appendix 10.2 ADAPTER OVERVIEW The following overview contains information about the valves and the required adapters. The adapters for Danfoss RAV, Danfoss RA and Danfoss RAVL are included with your Comet ZigBee. When using the Danfoss RAV adapter, the RAV pin must be inserted on the valve plunger.
  • Page 66 Comet ZigBee -Starter Set- Appendix INFORMATION Remove the connecting pieces of the plastic adapters (see illustration) before using one of the adapt- ers included. Use the screw and nut enclosed when using the Danfoss RAV and Danfoss RA adapters. CAUTION!: Danger of being cut! The adapters supplied and the plunger extension are connected by plastic bars.

  • Page 67: Support And Contact

    Comet ZigBee -Starter Set- Appendix 10.3 SUPPORT AND CONTACT You can contact us for technical support. We look forward to assisting you with your enquiry: Phone: +49-(0)-6667-91847-0 E-mail: support@eurotronic.org EUROtronic Technology GmbH Customer service: Südweg 1 36396 Steinau-Ulmbach Germany 10.4 DISPOSAL...

  • Page 68: Personal Data

    RAV and RAVL. The device combinations can be viewed at our website (https:/ /eurotronic.org/service/faq). If you operate the Comet ZigBees with third-party valves/adapters that are not listed, the reliability of the functions must be ensured by the user. EUROtronic does not provide warranty service in these cases.

  • Page 69: Manufacturer

    Comet ZigBee -Starter Set- Appendix 10.8 MANUFACTURER EUROtronic Technology GmbH Südweg 1 36396 Steinau-Ulmbach Germany +49 (0) 6667 91847- 0 support@eurotronic.org www.eurotronic.org...
  • Page 70 EUROtronic Technology GmbH Südweg 1 | 36396 Steinau-Ulmbach | Germany www.eurotronic.org...
