COOKOUT

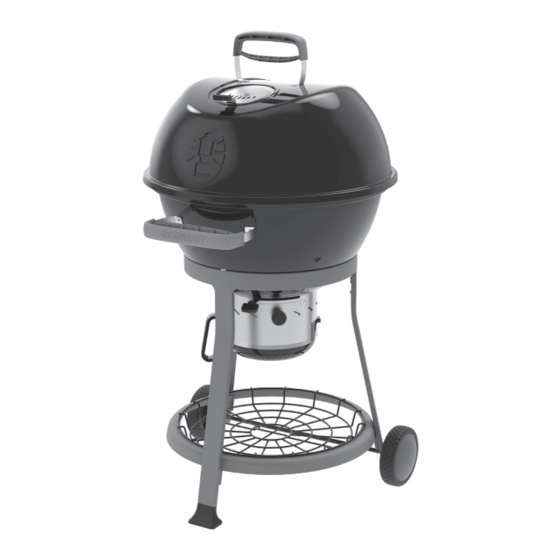

22.5" CHARC OA L KE T T LE
ASSEMBLY INSTRUCTIONS & USER MANUAL
CO-600CG (C30504) Charcoal
LIMITED 2-YEAR WARRANTY
Read and save manual for future reference.
Assemble your grill immediately. Missing or damaged parts
should be claimed within 30 days of purchase.
For product inquiries, parts, warranty and troubleshooting support,
please call 1-800-249-2506.
www.colemanbbqs.com
Manual Revision #: 2023.12.16 MK
Serial # __________________________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COOKOUT CO-600CG and is the answer not in the manual?

Questions and answers

Related Manuals for Coleman COOKOUT CO-600CG

Summary of Contents for Coleman COOKOUT CO-600CG

  • Page 1 COOKOUT 22.5” CHARC OA L KE T T LE ASSEMBLY INSTRUCTIONS & USER MANUAL CO-600CG (C30504) Charcoal LIMITED 2-YEAR WARRANTY Read and save manual for future reference. Assemble your grill immediately. Missing or damaged parts should be claimed within 30 days of purchase. For product inquiries, parts, warranty and troubleshooting support, please call 1-800-249-2506.
  • Page 2 COOKOUT™ 22.5” CHARCOAL KETTLE STOP DO NOT return this product to the store. IF YOU NEED HELP OR PARTS, CALL THE COLEMAN® HOTLINE: 1-800-249-2506 HOURS: 9AM-7PM EST Mon-Fri, CLOSED Saturday and Sunday Assemble your COOKOUT™ CHARCOAL KETTLE immediately. Missing or damaged parts must be claimed within 30 days of purchase.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Danger Safe Usage Lighting Instructions Operating Instructions Putting Out the Fire Ash Removal Maintanence and Storage Cooking Tips Hardware Pack Parts List Exploded Diagram Assembly Instructions Warranty & Service...

  • Page 4: Danger

    DANGER • Burning charcoal gives off carbon monoxide. Do not burn charcoal inside homes, garages, tents, vehicles or any enclosed areas. • Keep children and pets away from the charcoal kettle when operating. • Never leave the charcoal kettle unattended while in use. •...

  • Page 5: Lighting Instructions

    LIGHTING INSTRUCTIONS We recommend using a chimney charcoal starter, electric charcoal starter, lighting cubes or newspaper to light charcoal. DO NOT USE LIGHTER FLUID. WARNING For proper air flow, remove accumulated ashes from the ash catcher, only after the coals are fully extinguished.
  • Page 6 LIGHTING INSTRUCTIONS USING LIGHTER CUBES OR CRUMBLED NEWSPAPER FOR LIGHTING 1. Place either lighter cubes (which are non-toxic, odorless and tasteless) or crumpled newspaper into the center of the Charcoal grate. 2. Pile the charcoal briquettes into a pyramid shape directly over the lighter cubes or newspaper. 3.

  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS Oxygen is an essential part of building a proper fire, elevating and stabilizing cooking temperatures and controlling cooking times. The COOKOUT™ Charcoal Kettle comes equipped with three air intake controls. FEATURES LIGHTING & COOKING SHUT DOWN During lighting and operation all vents should Closing the vent either partially or be in the OPEN position.

  • Page 8: Putting Out The Fire

    PUTTING OUT THE FIRE Once cooking is complete, follow these steps to extinguish the fire: 1. Using protective gloves, close the COOKOUT™ lid. 2. Close all vents. NOTE: Assume that it will take at least 1 hour for your charcoal to extinguish and your charcoal kettle to cool down. There is not an ON or OFF switch for a charcoal fire.

  • Page 9: Maintanence And Storage

    MAINTENANCE AND STORAGE Before storing your Coleman® COOKOUT™ Charcoal Kettle, give it a thorough cleaning. Follow the care and maintenance instructions outlined below. GENERAL MAINTENANCE ATTENTION DO NOT USE ANY ABRASIVE CLEANERS OR STEEL WOOL on cooking or charcoal grate or any painted, porcelain or stainless steel parts.

  • Page 10: Cooking Tips

    COOKING TIPS • All vents must remain OPEN during lighting and cooking. • Meat thermometers help you make sure that meats are cooked to the desired temperature. • Prevent food from sticking and protect your grates from moisture by spreading vegetable oil or shortening on a COLD, UNLIT cooking grate.

  • Page 11: Hardware Pack

    HARDWARE PACK No. Description Part Number Qty. TOOLS NEEDED FOR ASSEMBLY NO.10-24UNC X10 Screw 20124-10010-250 • #2 Phillips screwdriver (long and short) ST4.2X6 Tapping Screw 24200-42006-137 Screw for vent G531-0048-9081 • Pliers φ6.5 Washer G466-0042-9000 Spacer G501-0033-9100 No.10 Wing Nut 33324-10000-810 Compression Spring G528-0058-9000...

  • Page 12: Parts List

    PARTS LIST FOR CO-600CG (C30504) Item No. Qty. Description Part No. C305-0026-01 Lid handle C305-2800-01 Lid vent G537-0029-01 Fire Bowl C305-0201-02 Ash Sweep C305-0006-02 Ash Sweep Handle G531-0047-01 Cooking grate C305-0300-01 Charcoal grate C305-0007-02 Front Handle C305-0900-01 Fire Bowl Vent C305-0400-02 Fire Bowl Vent Handle C305-0009-01...

  • Page 13: Exploded Diagram

    EXPLODED DIAGRAM FOR CO-600CG (C30504) Extras Manual Hardware Pack...

  • Page 14: Assembly Instructions

    ASSEMBLY INSTRUCTIONS...
  • Page 15 ASSEMBLY INSTRUCTIONS...
  • Page 16 ASSEMBLY INSTRUCTIONS 6 10...
  • Page 17 ASSEMBLY INSTRUCTIONS...
  • Page 18 ASSEMBLY INSTRUCTIONS...
  • Page 19 ASSEMBLY INSTRUCTIONS...
  • Page 20 ASSEMBLY INSTRUCTIONS...
  • Page 21 ASSEMBLY INSTRUCTIONS...
  • Page 22 ASSEMBLY INSTRUCTIONS...
  • Page 23 ASSEMBLY INSTRUCTIONS...

  • Page 24: Warranty & Service

    ASSEMBLY INSTRUCTIONS...
  • Page 25 ASSEMBLY INSTRUCTIONS...
  • Page 26 ASSEMBLY INSTRUCTIONS...
  • Page 27 ADDITIONAL WARNINGS WARNING HOT SURFACES: - Avoid Burns - Do not touch when charcoal kettle is in use. - Extrememly hot surfaces.
  • Page 28 1. Call the Coleman® Customer Care Hotline 1-800-249-2506 2. Do not return to the store for replacement of damaged or defective parts. Coleman® Customer Care will ensure that all in-stock replacement parts arrive at your home within 3-10 business days.
  • Page 29 WARRANTY LIMITATION AND EXCLUSIONS Backhome Products has the following limitations to its warranty: 1. This limited warranty is non-transferable and becomes void if used for commercial or rental purposes. 2. This warranty applies only when the charcoal kettle is used in the United States. 3.
  • Page 30 Licenced by BackHome Products LLC. ©2024 The Coleman Company, Inc. Coleman are registered trademarks of ® The Coleman Company, Inc. used under license.

This manual is also suitable for:

C30504

Table of Contents
