Presto Liddle Griddle 07211 - Mini Griddle Manual

Table of Contents

Contents

1 Features
2 Assembly
3 How to Use
4 Care and Cleaning
5 Temperature-Timetable
6 Consumer Service Information
7 Product Registration
8 IMPORTANT SAFEGUARDS
9 Important Cord Information
10 Presto Limited Warranty
11 Documents / Resources
- 11.1 References
- 11.2 Download manual

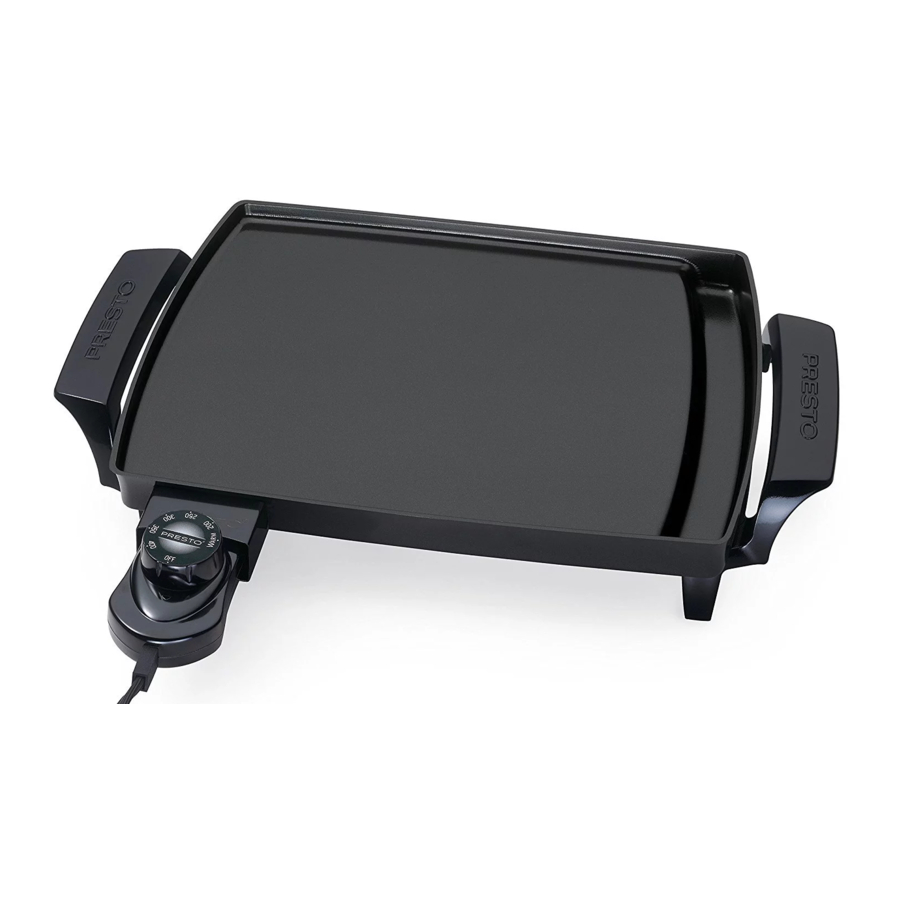

Features

Compact size! Ideal for one or two servings. The perfect griddle for singles and couples.
Ceramic nonstick surface for stick-free cooking and easy cleaning.
Control Master heat control maintains the proper cooking temperature automatically.
Completely immersible with the heat control removed.

Assembly

Place unit upside down on an elevated surface for handle assembly. An elevated surface is necessary to prevent placing pressure on one handle while installing the second handle. Failure to use an elevated surface may result in damage to the first handle installed.
Remove the screws from the mounting projections on the griddle.
Position the handles lining up the holes in the handles with the mounting projections on the griddle.

Replace the screws and fasten securely (Fig. A).

NOTICE: Overtightening can result in stripping of screws or cracking of handles and legs.
When properly assembled, the griddle should sit level.

How to Use

NOTICE: This griddle is not intended to be used as a warming tray, hot plate, or for heating any cookware. Using this appliance for purposes different from those specified in the instruction manual may cause damage to the appliance and will void the warranty.

Product features
Before using for the first time, become familiar with the griddle features (Fig. B). Wash griddle according to the "Care and Cleaning" instructions.

Place the assembled griddle on a dry, level, heat-resistant surface away from walls, cabinets, and other objects.
NOTICE: To prevent possible heat damage to your countertop, place a heat-resistant counter protector, such as aluminum foil, under the griddle. However, to keep the griddle from moving on the counter, do not place any portion of the foil under the griddle's feet.
Insert the Control Master heat control probe into the griddle so the two electrical pins on the griddle are fully inserted into the heat control. Connect the cord to a 120VAC electrical outlet only.
Turn the heat control to the desired temperature; see "Temperature-timetable". Preheat the griddle. The indicator light turns off when the selected temperature is reached, in approximately 5 to 10 minutes.
Note: It is normal to hear a clicking sound while the griddle heats up and cools down. This is due to the expansion and contraction of the metal.
Prepare the food for cooking. Because the griddle features a nonstick finish, food may be prepared with little or no oil.
NOTICE: Avoid using no-stick cooking sprays as they may cause the cooking surface to become tacky.
Place the food on the griddle and cook according to the temperature-timetable. Adjust the heat according to personal preference and the particular food being cooked. The indicator light will turn on and off indicating the selected temperature is being maintained.
Use nylon, plastic, wooden, or rubber utensils for best results. Do not use metal utensils as they may scratch the nonstick finish. Do not cut foods on the cooking surface.
Turn the heat control OFF when cooking is complete. Unplug the heat control from the wall outlet, and then from the griddle.
Allow the griddle to cool completely before pouring grease from the grease trough and before cleaning.

Care and Cleaning

Before initial use and after each subsequent use, remove the heat control and wash the griddle (including the bottom) in warm, soapy water. Rinse and dry thoroughly.
Clean the nonstick surface with a nylon mesh scouring pad, such as Scotch-Brite* Non-Scratch Scrub Sponge, or a damp cloth. Firm pressure can be applied.

Do not use steel wool or abrasive kitchen cleaners. Do not immerse the Control Master heat control in water or let it come in contact with any liquid.

NOTICE: Do not wash the griddle in the dishwasher. Repeated washings in a dishwasher will cause the nonstick properties of the ceramic coating to slowly diminish. In addition, the bottom of the griddle will likely discolor due to the caustic nature of the dishwasher detergent and a gray residue may form, which may transfer onto towels and/or skin.

Soaking the griddle to loosen food residue is not necessary. If soaking is desired, do not soak for more than two hours as this may damage the nonstick coating.

In time, the ceramic coating may darken over the heating element due to a buildup of grease residue. To minimize or remove this discoloration, sprinkle baking soda over the discolored area. Add enough water to make a paste. Allow the paste to sit for several minutes and then scour with a nylon mesh scouring pad or a damp cloth. Wash and dry thoroughly. Repeat the procedure, if necessary.
The outside finish of the griddle is easy to keep attractive and looking new. Simply wipe away spills and drips as they occur. If food should happen to burn on, it can be removed with warm, sudsy water and a cleaning pad. Rinse and wipe dry.

Periodically check the handle screws for looseness and retighten them when necessary.
NOTICE: Continuing to tighten, once secure, can result in stripping of screws or cracking of handles and legs.

To ensure continued accuracy of the Control Master heat control, avoid rough handling in use and storage.

Temperature-Timetable

Food	Setting	Cooking Time
Bacon	325°–350°	5–8 minutes
Bacon, Canadian	325°–350°	3–4 minutes
Eggs, fried	275°–300°	3–5 minutes
Fish	325°–375°	5–10 minutes
French toast	325°–350°	4–6 minutes
Ham, ½ inch thick	325°–350°	10–12 minutes
Ham, ¾ inch thick	325°–350°	14–16 minutes
Hamburgers, ½ inch thick	325°–375°	8–12 minutes
Minute steak	375°–400°	4–5 minutes
Pancakes	350°–400°	2–3 minutes
Pork chops, ½ inch thick	325°–375°	15–20 minutes
Pork chops, ¾ inch thick	325°–375°	20–25 minutes
Potatoes, cottage fried	300°–350°	10–12 minutes
Sausage, link	325°–350°	20–30 minutes
Sausage, precooked	325°–350°	10–12 minutes
Sandwiches, grilled	325°–350°	5–10 minutes
Steak, beef, 1 inch thick, rare	350°–400°	6–7 minutes
Steak, beef, 1 inch thick, medium	350°–400°	10–12 minutes
Steak, beef, 1½ inches thick, rare	350°–400°	8–10 minutes
Steak, beef, 1½ inches thick, medium	350°–400°	18–20 minutes
*USDA Recommended Safe Minimum Internal Food Temperatures*
Beef Steaks	145°F	Use a meat thermometer for complete accuracy when measuring meat temperatures.
Eggs	160°F
Fish	145°F
Ground Beef	160°F
Pork (ground, chops, steak)	160°F

Consumer Service Information

If you have any questions regarding the operation of your Presto appliance or need parts for your appliance, contact us by any of these methods:

Call 1-800-877-0441 weekdays 8:00 a.m. to 4:00 p.m. (Central Time)
Email us through our website at www.GoPresto.com/contact
Write to National Presto Industries, Inc., Consumer Service Department, 3925 North Hastings Way, Eau Claire, WI 54703-3703

Inquiries will be answered promptly by email, telephone, or letter. When emailing or writing, please include a phone number and a time when you can be reached weekdays. When contacting the Consumer Service Department, please indicate the model and series numbers for the griddle. These numbers can be found on the bottom of the plug guard.

Please record this information:
Model
Series
Date Purchased

The Presto Factory Service Department is equipped to service Presto appliances and supply genuine Presto replacement parts. Genuine Presto replacement parts are manufactured to the same exacting quality standards as Presto appliances and are engineered specifically to function properly with its appliances. Presto can only guarantee the quality and performance of genuine Presto replacement parts. "Look-alikes" might not be of the same quality or function in the same manner. To ensure that you are buying genuine Presto replacement parts, look for the Presto trademark.

Canton Sales and Storage Company
Presto Factory Service Department,
555 Matthews Drive, Canton, MS 39046-3251

Product Registration

Please go online and register this product within ten days of purchase. Proper registration will serve as proof of purchase in the event your original receipt becomes misplaced or lost. Registration will not affect warranty coverage, but it may expedite the processing of warranty claims. The additional information requested will help us develop new products that best meet your needs and desires.
To register your product, visit www.GoPresto.com/registration or simply scan this QR code. If you do not have computer access, call the Consumer Service Department at 1-800-877-0441 for assistance with registration.

IMPORTANT SAFEGUARDS

To reduce the risk of personal injury or property damage when using electrical appliances, basic safety precautions should always be followed, including these:

Read all instructions.
Be sure that the handles are assembled and fastened properly before using this appliance. See the instructions regarding handles in "Assembly" section.
Do not touch hot surfaces. Use the handles or knobs.
To protect against electrical shock, do not immerse the heat control, cord, or plug in water or other liquid.
Close supervision is necessary when any appliance is used by or near children. Do not let children handle or put electrical cords or plugs in their mouths.
Unplug the appliance from the wall outlet when not in use and before cleaning. Allow the griddle to cool before putting on or taking off parts, and before cleaning.
Do not operate any appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the Presto Factory Service Department for examination, repair, or electrical or mechanical adjustment.
The use of accessory attachments not recommended by the appliance manufacturer may cause injuries. Use only genuine Presto replacement parts and accessories.
Do not use outdoors.
Do not let the cord hang over the edge of the table or counter, or touch hot surfaces.
Do not place on or near a hot gas or electric burner, or in a heated oven.
It is recommended that this appliance not be moved when it contains hot oil or other hot liquid. If it must be moved when it contains hot oil or other hot liquid, use extreme caution.
Always attach the heat control to the appliance first, and then plug the cord into the wall outlet. To disconnect, turn the heat control to OFF, and then remove the plug from the wall outlet.
Do not use this appliance for other than the intended use.

SAVE THESE INSTRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY.

Important Cord Information

shock hazard This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

A short, detachable power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. An extension cord may be used if care is properly exercised in its use. If an extension cord is used, the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance. The extension cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.
Connect the power supply cord to a 120VAC electrical outlet only.

Presto Limited Warranty

To obtain warranty service, please call our Consumer Service Department at 1-800-877-0441.
Visit www.GoPresto.com
National Presto Industries, Inc., Eau Claire, WI 54703-3703
