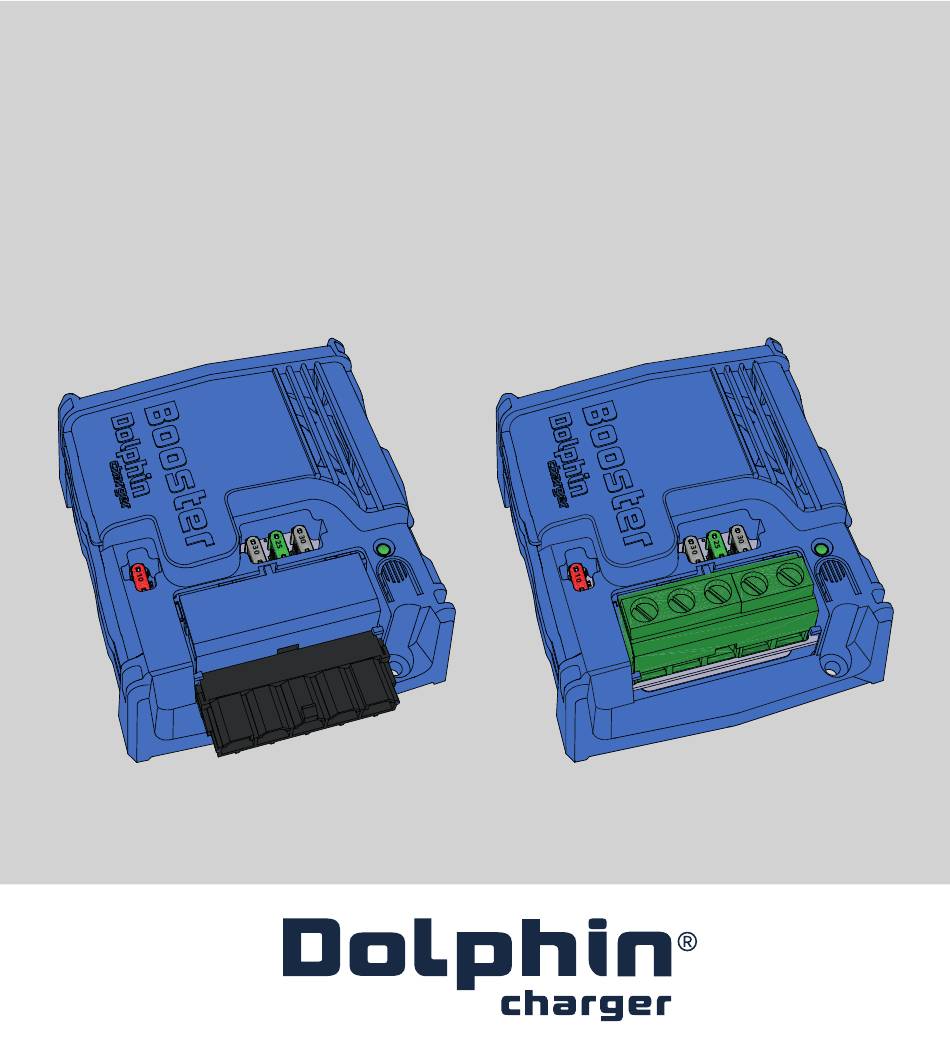

- Page 1 OPERATING & USERS MANUAL MANUEL D’INSTALLATION ET D’UTILISATION INSTALLATIONS- UND BEDIENUNGSANLEITUNG MANUALE DI INSTALLAZIONE E D’USO Booster Mini PF.222169_OEM PF.222169_AFM Aftermarket...
-
Page 2: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS This manual contains vital and essential information for preventing electric shocks, overloads or irreversible damage to the equipment. The owner must read and understand this document before using the product. This device is not intended for use by persons (including children) with physical, sensory or mental disabilities, or by persons without the relevant experience or knowledge, unless they receive appropriate supervision, or preliminary instructions on how to... - Page 3 Installation ATTENTION • Do not expose the booster to rain or snow. • Do not use the booster if it has sustained a violent impact, been dropped, exhibits cracks or openings in the casing, or is damaged in any other way. •...
- Page 4 The product must be properly and securely mounted. This device is not a toy, and must be kept out of the reach of children. Connections ATTENTION • To prevent any overheating, make sure that the connections are correctly tightened. • The installation to which the product is connected must comply with the standards in force in the country of use.
- Page 5 Choosing the charging curve WARNING • It is important to choose the right charging curve for the battery technology. The wrong choice can cause irreversible damage. In particular, there is a risk of overheating and harmful gas emissions in the event of battery overvoltage. If in doubt, contact the battery manufacturer.
- Page 6 Chemical and gas-related risks ATTENTION • It is important to ensure that the area around the batteries is well ventilated. The gas produced by batteries can be explosive. Anyone near the batteries must wear eye protection. Ensure adequate ventilation to prevent any accumulation of harmful and/ or hazardous gases.
-
Page 7: Product Presentation
PRODUCT PRESENTATION PF.222169_OEM PF.222169_AFM Designation Cover Display LED Batteries and fridge fuses PV fuse Batteries, solar panel and fridge connectors Charging cycle selection push-button NOT.BOOSTMINI-00... - Page 8 DIMENSIONS Note: illustrated with the PF.222169_OEM version, the dimensions shown remain the same for the AFM version.
-
Page 9: Mounting The Product
Installation MOUNTING THE PRODUCT The booster is designed for permanent installation: • either on a vertical bracket. • or flat on a horizontal bracket. NOT.BOOSTMINI-00... - Page 10 ATTENTION Use Ø 4 mm screws suitable for the support. To allow the product to cool properly, a clearance of 1 centimetre must be left all around the product. 10 mm mini 10 mm mini...
-
Page 11: Power Connector
CONNECTIONS The booster is designed to power a refrigerator and recharge an auxiliary battery of up to 20A, whatever the battery technology. The booster can run on the main battery, or a solar panel. Any work on the electrical circuit must be carried out with the power supplies off (circuit breaker OFF, batteries disconnected). - Page 12 Designation Solar panel input PF.222169_OEM B1 motor battery input B2 auxiliary battery output FRIG Fridge output PF.222169_AFM The cross-section of the cables to be used depends on the distance between the booster and the equipment: Equipment Cable cross-section 10 mm² B2, PV and FRIG if L <...
- Page 13 CHOOSING THE CHARGING CYCLE The booster must be used with batteries of the same type. ATTENTION It is important to select the right type of battery to preserve its service life. If you are unsure, contact the battery manufacturer. Power on the charger connected to the batteries. Note: when the charger is powered on, the LED (2) indicates the current charging cycle for a few seconds: see the table below for the battery type colour codes.
- Page 14 Battery type Battery type Green Classic lead Lead Calcium Yellow AGM - Gel Green / red Lithium Wait a few seconds for the charger to return automatically to NORMAL mode. Preventively check the output charging voltage (Boost & Float phases). Lead Cal- Mode Classic lead AGM –...
- Page 15 FUSES The main function of the booster fuses is to protect against fire risks. If one or more fuses are blown, other electronic circuit components may have been damaged: do not try to replace them, contact your dealer's After-Sales service. Fuses Rating PV input...
- Page 16 WIRING DANGER • Before connecting a battery, you need to cut the power supply. • The Integral does not have built-in reverse polarity protection: make sure to check the polarity of each component before wiring. Fridge (+) Loads (+)
- Page 17 WARNING NB: there is a serious risk of the batteries overheating and releasing gases harmful to health, if the charging cycle is not appropriate for the battery technology used. If you are unsure, contact the battery manufacturer. General operation The B2 battery is charged via the B1 motor battery or the solar panel, depending on the sunshine conditions and the on-board power consumption.
-
Page 18: Technical Specifications
TECHNICAL SPECIFICATIONS PF.222169_OEM or PF.222169_AFM B2 charged B2 charged via the FRIG via the B1 mo- PV solar output tor battery panel (MPPT charging) Input Input voltage 12 to 16V 17 to 30V B1 or B2 Input power (max.) 250 W 140 W 250 W Efficiency... - Page 19 General information Operating - 10°C to + 50°C T° Humidity 90% max. (without condensation) Weight 0.25 kg Dimensions 110 x 97 x 50 mm Mounting Horizontal or vertical (2 Ø 4 mm screws) Standards CE - E2 marking Altitude max. 2000 m PF.222169_OEM PF.222169_AFM External interfaces...
-
Page 20: Troubleshooting
TROUBLESHOOTING Fuse blown The main function of the booster fuses is to protect against fire risks. If one or more fuses are blown, other electronic circuit components may have been damaged: do not try to replace them, contact your dealer's After-Sales service. Any other problems Check the fault type: See the "LED"... -
Page 21: Warranty
WARRANTY In order to prevent any risk arising from misuse of the device, please carefully read the list of possible situations or faults not covered by the warranty: • Removing and/or modifying the casing. • Removing and/or modifying the power electronics board, resulting in product malfunction or damage. - Page 22 Dolphin Charger 2, Chemin de Branchy 74600 ANNECY France contact@dolphin-charger.com www.dolphin-charger.com...
