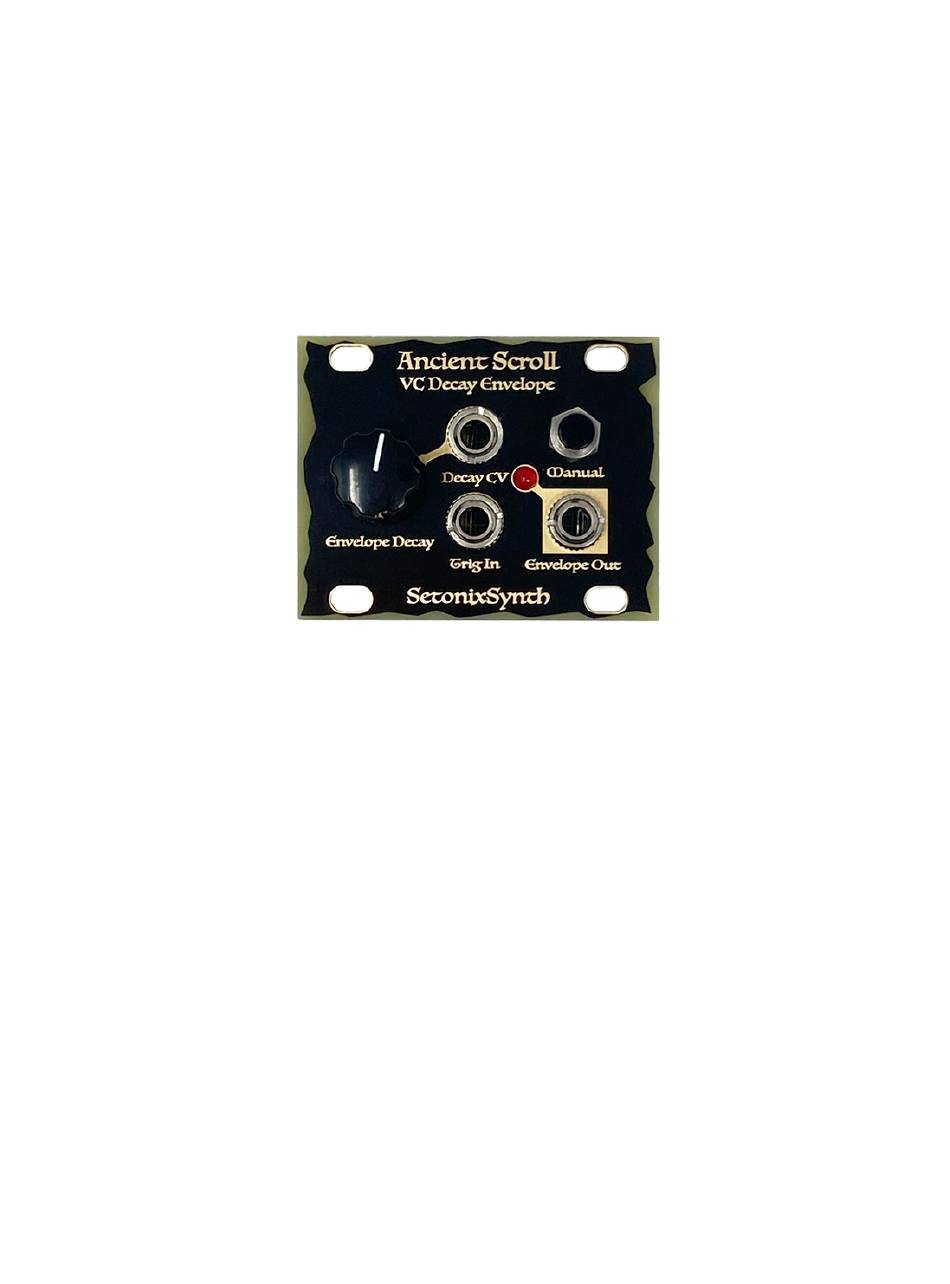

- Page 1 Ancient Scroll Voltage-Controlled Decay Envelope Assembly Instructions for Eurorack Copyright 2024 SetonixSynth. All rights reserved.
- Page 2 Hello and thank you for building the Ancient Scroll DIY kit. We hope you will find its snappy envelopes to be useful and fun! Bill of Materials: 1x Panel + 2x SMT populated PCB 1x Through Hole LED 1x 10-Pin 2.54mm Power Header (or 2x 5-pin Single Row headers)
- Page 3 header sides are facing upwards. 6. Place the Main PCB on top of the pin headers. Make sure each side neatly slots into the corresponding footprints, and that the mounting hole at the top of the PCB aligns with the 11mm spacer.
- Page 4 18. Once you have tested your Ancient Scroll module and confirmed it is working, it’s time for final assembly. Tighten all the front panel nuts as much as you can and put the knob on the Envelope Decay potentiometer.
