Operating instructions

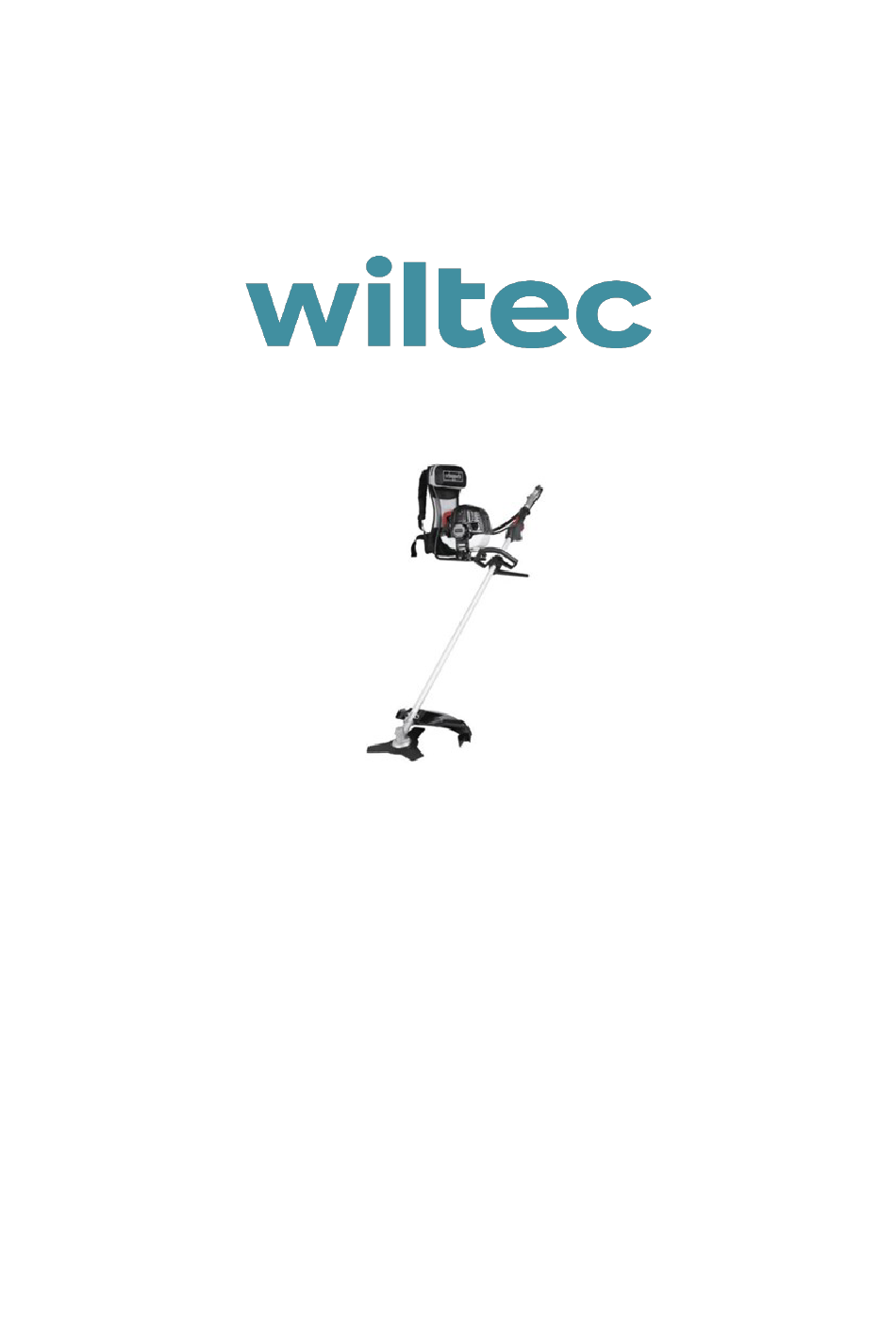

2-in-1 Multi Gardening Tool with 2-stroke Motor
64756
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Related Manuals for WilTec 64756
Summary of Contents for WilTec 64756
- Page 1 Operating instructions 2-in-1 Multi Gardening Tool with 2-stroke Motor 64756 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further...
- Page 2 The information contained in this document may alter at any time without prior notice. No part of this document may be copied or otherwise duplicated without prior written consent. All rights reserved. WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating man- ual, nor in the diagrams and illustrations shown.
- Page 3 Children should be supervised to ensure that they do not play with the device. © by WilTec Wildanger Technik GmbH Item 64756 Page 3 http://www.wiltec.de...
- Page 4 First remove all objects from the place of use in which the blade or thread could become entan- gled or which could be thrown up during operation. • Never leave the machine unattended. © by WilTec Wildanger Technik GmbH Item 64756 Page 4 http://www.wiltec.de...
- Page 5 Never make settings on a running device or on a device hanging over the user’s shoulder by the shoulder strap. Switch it off, wait until all parts have come to rest, place it on a flat surface, and only then carry out the settings. © by WilTec Wildanger Technik GmbH Item 64756 Page 5 http://www.wiltec.de...
- Page 6 If you store the machine for a longer period of time, the fuel tank must be emptied. Contact your local petrol station to find out where you can dispose of excess fuel. • Make sure that the device is cleaned and fully serviced before long-term storage. © by WilTec Wildanger Technik GmbH Item 64756 Page 6 http://www.wiltec.de...
- Page 7 • If you notice discomfort, redness, and swelling on your fingers, followed by whitening and loss of sensation, you should consult your doctor before further exposure to cold and vibration. © by WilTec Wildanger Technik GmbH Item 64756 Page 7 http://www.wiltec.de...
- Page 8 Fuel tank (5): Contains fuel and fuel filter. • Throttle lever (8): With spring, returns to idle when released. Push down gradually when accel- erating; do not hold when starting. © by WilTec Wildanger Technik GmbH Item 64756 Page 8 http://www.wiltec.de...
- Page 9 Insert the square of the flexible shaft (4) into the square hole of the adapter (3), align the screw hole of the handle and the notch (1) of the flexible shaft and tighten the M5×30 screw (2). © by WilTec Wildanger Technik GmbH Item 64756 Page 9 http://www.wiltec.de...
-
Page 10: Fitting The Handle
Align the hole in the connecting plate and the hole in the shaft and insert the fastening tool. Screw the cutter head onto the shaft (clockwise) until it is tight. Remove the tightening tool. © by WilTec Wildanger Technik GmbH Item 64756 Page 10 http://www.wiltec.de... - Page 11 Fuel storage Store fuel only in a clean, safe, and approved container. Check and follow local ordinances on the type and location of the storage container. © by WilTec Wildanger Technik GmbH Item 64756 Page 11 http://www.wiltec.de...
- Page 12 If the fuel tank was empty, repeat steps 3 to 7 under “Starting a cold engine” after refilling. Turning off the engine Set the switch to “STOP.” № Name № Name Safety lever Stop switch Throttle lever © by WilTec Wildanger Technik GmbH Item 64756 Page 12 http://www.wiltec.de 11 2023-1...
- Page 13 Replace the spark plug when the centre elec- , mm ( , trode has become round at the end. • Spark gap 0.6–0.7 mm • Tightening torque 145–155 Kg.cm © by WilTec Wildanger Technik GmbH Item 64756 Page 13 http://www.wiltec.de 11 2023-1...
-
Page 14: Troubleshooting
Install a new spark plug with the correct spacing. • If you have a serious problem with the device, do not attempt to repair it yourself, but leave it to an expert. © by WilTec Wildanger Technik GmbH Item 64756 Page 14 http://www.wiltec.de... - Page 15 Repair. Leakage from one end of crank- Incorrect gasket Replace gasket. shaft Engine overheating Do not use for a long time at high speed and high load. © by WilTec Wildanger Technik GmbH Item 64756 Page 15 http://www.wiltec.de 11 2023-1...
- Page 16 High-voltage wire dropped Reconnect. Important note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. © by WilTec Wildanger Technik GmbH Item 64756 Page 16 http://www.wiltec.de 11 2023-1...
