There are 2 fixing methods for the microphone. Either fix the pod to a surface
using (1) the provided double-sided sticky pad or (2) the provided screws.
1.
To fix the pod in place using the double-sided adhesive pad:
a. Remove one side of the liner and adhere this to the base of the
microphone.
b. Remove the second liner and adhere the pod in its desired
location.

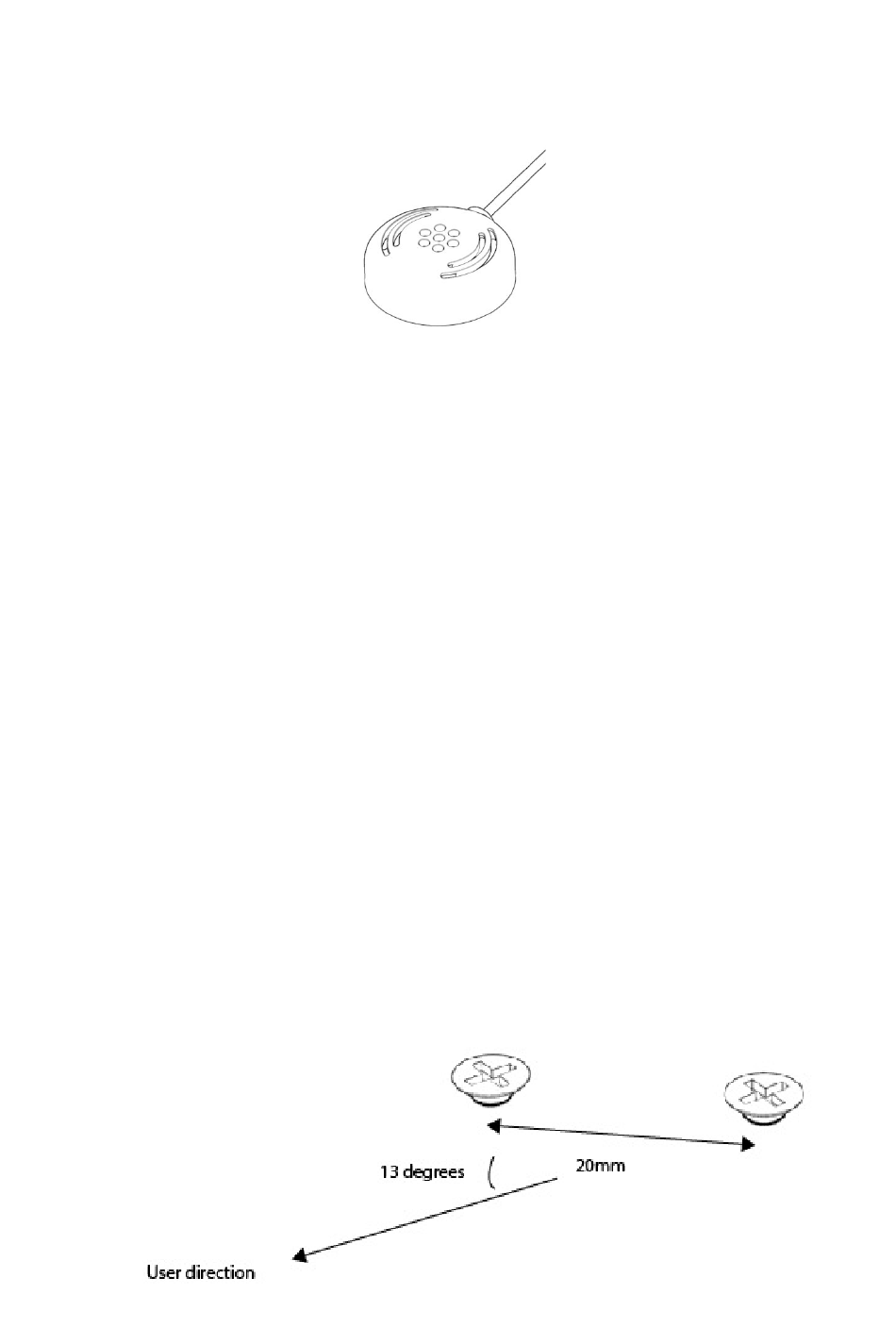

2. To fix the pods using the screws:
a. Screw x2 countersunk screws into the fixing surface at a 20mm
distance apart.
Note: Place the screws at a 13 degree angle facing the intended
users' position.
b. Ensure that approximately 4mm of the screw head is above the
fixing surface.
Installation Guide
Microphone | STS-M15
Advertisement
Related Manuals for Contacta STS-M15
Summary of Contents for Contacta STS-M15
- Page 1 Installation Guide Microphone | STS-M15 There are 2 fixing methods for the microphone. Either fix the pod to a surface using (1) the provided double-sided sticky pad or (2) the provided screws. To fix the pod in place using the double-sided adhesive pad: a.
- Page 2 Place your pod onto the screw heads, ensuring these fit into the twist fixing points located on the bottom of the unit: d. Twist the unit clockwise to tighten it in place. If the pod is too tight or loose, adjust the screws accordingly, then re-attach.
