  • Page 1 Gebrauchs- und Montageanweisung Operating and installation instructions Notice de montage et d’utilisation Gebruiks- en montageaanwijzing Istruzioni per l’uso e l’installatore Instrucciones de uso y montaje Οδηγίες χρήσης και τοποθέτησης...

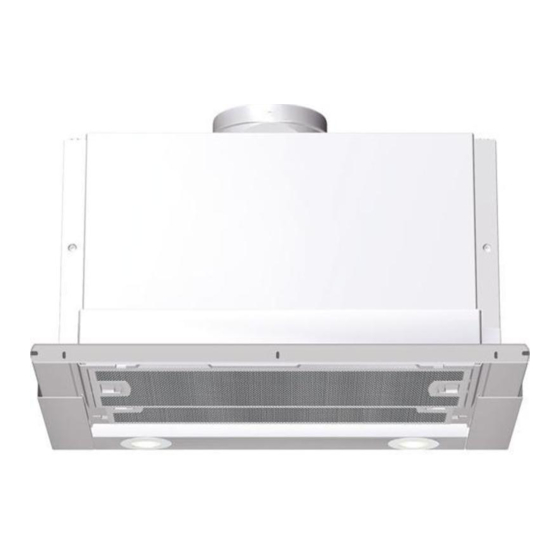

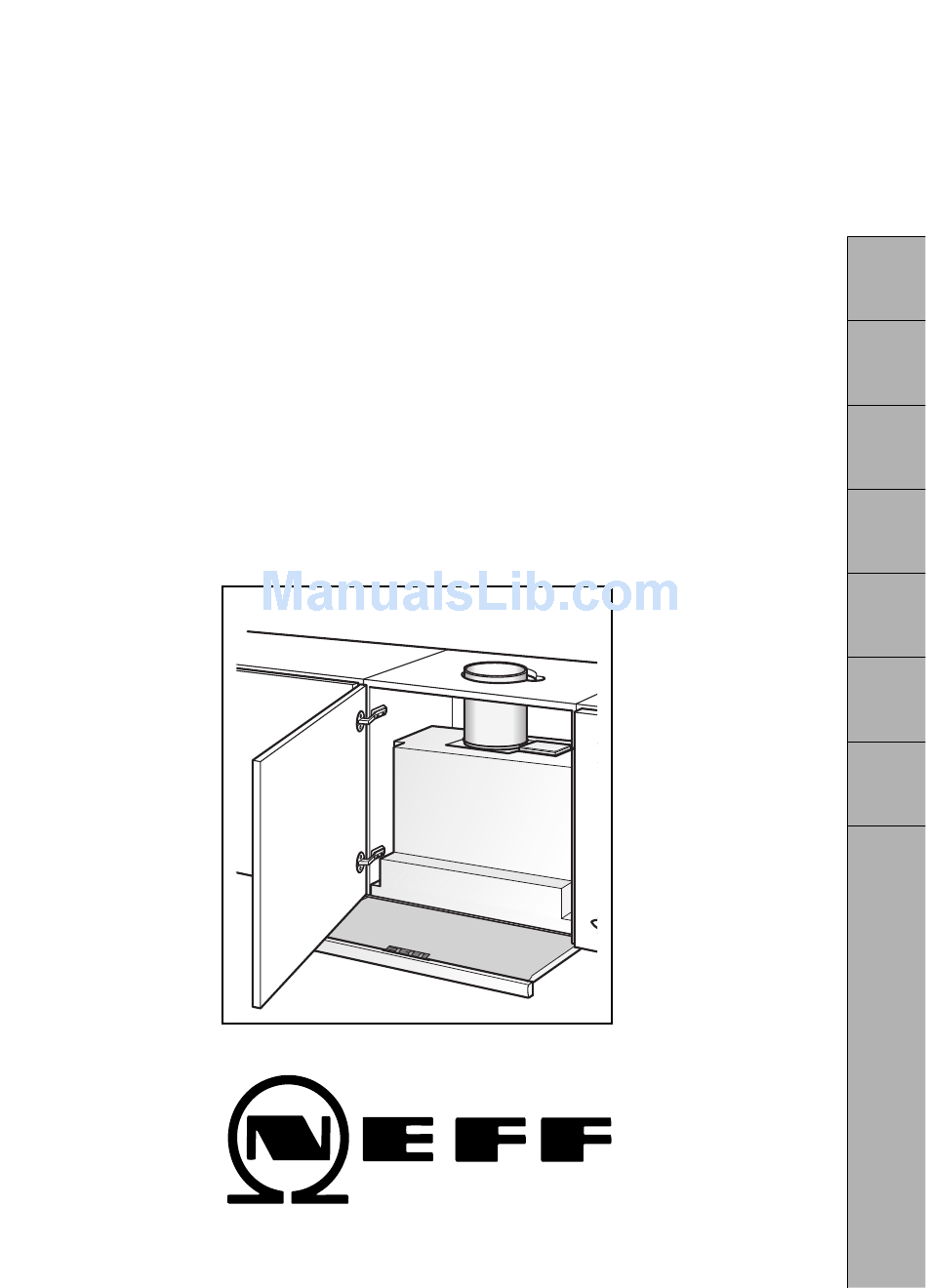

  • Page 2 Seite 03 – 15 pagina 55 – 67 page 16 – 28 página 68 – 80 page 29 – 41 81 – 93 Σελίδα pagina 42 – 54 Abb. 1 ELEKTRO ELECTR. KAASU ELETT. GASS min. 650 min. 430...

  • Page 3: Description Of Appliance

    If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room. An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

  • Page 4: Before Using For The First Time

    Use carefully. They contain important you may find descriptions of individual information concerning your personal features that do not apply to your safety as well as on use and care of the specific appliance. appliance. This extractor hood complies with all Please retain the operating and relevant safety regulations.
  • Page 5 filter unit. The extractor hood will start at the most recent fan setting. Light: The light can be switched on at any time Fan settings even when the appliance is off or the filter Intensive setting drawer is inserted.

  • Page 6: Filters And Maintenance

    Warning: The halogen bulbs must be grease particles in the cooking vapours. switched off and cool. The filter mats are made from non- 1. Pull the filter drawer all the way out. combustible metal. 2. Depress both catches at the front of the Caution: grease filter and remove the grease filter.
  • Page 7 As the filter becomes more and more Removing the filter: saturated with grease, there is an increased risk of fire and the function of the extractor Warning: The halogen bulbs must be hood may be impaired. switched off and cool.

  • Page 8: Cleaning And Care

    20 Watt, G4 bulbholder). soapy solution and a soft, damp cloth only. Caution: Plug-in bulbholder. Do not use stainless-steel cleaner to clean Take hold of the bulb with a clean cloth. the operating buttons. Stainless steel surfaces: Use a mild non-abrasive stainless steel cleaner.

  • Page 9: Installation Instructions

    Only one side of the extractor hood Please ask your dealer or inquire at your may be installed next to a high-sided unit local authority about current means of or high wall. Gap at least 300 mm.

  • Page 10: Prior To Installation

    flue which is as reciprocal interlocking. already in use or via a shaft which is used for ventilating rooms in which fireplaces are If the air intake is inadequate, there is a located.

  • Page 11: Before Installation

    Round pipes Short exhaust air pipe: 1. Make a hole in the top of the wall cupbo- inside diameter min. 120 mm, ard, cutting out a notch for the power Longer exhaust air pipe: supply cable.
  • Page 12 293 to 350 mm height: min. 435 mm. If the cupboard is deeper than 293 mm, the extractor hood can be moved back, e.g. to put a spice rack in front of the extractor hood. To do this, place the template further back.
  • Page 13 Fitting into wall cupboard Check door alignment and readjust if 4. If required, shorten the wall cover to the necessary. required dimension (e.g. saw off). Attach the wall cover with the enclosed 1. Remove grease filter clips. (see Operating instructions).
  • Page 14 , mark the attachment points on the wooden strip and make holes with a bradawl. When you drill: 2 mm dia – max. 10 mm in depth. Weight in kg: Exhaust air Circulating air 2. Align handle moulding and screw to the appliance.

  • Page 15: Electrical Connection

    Brown – Live disconnecting devices. These include LS If you fit your own plug, the colours of switches and contactors. these wires may not correspond with the This extractor hood complies with EU identifying marks on the plug terminals.
  • Page 16 Z5144X5 5 3x 434229 Aluminium: Z5776A0 Metall: Z5776N0 Absenkrahmen Lowering frame Du cadre d’abaissement Z5460X0 Befestigingsframe Dei telai per l’abbassamento Bastidor para bajar...
  • Page 17 Quellenstraße 2 Per Telefon: D-81701 München A-1100 Wien Fax: +49 (0) 89 / 45 90-35 32 Fax: +43 (0) 1/ 6 05 75-5 12 60 Internet: www.neff.de Internet: www.neff.at 0,12/min. DTAG Für Österreich: Tel: 08 10 / 70 04 00...
