MINJCODE MJ3650 Manual

Ccd 433mhz
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MJ3650 CCD 433Mhz
Barcode Scanner Manual
V.10
E-mail: support@minj.cn
Web：www.minjcode.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MJ3650 and is the answer not in the manual?

Questions and answers

Related Manuals for MINJCODE MJ3650

Summary of Contents for MINJCODE MJ3650

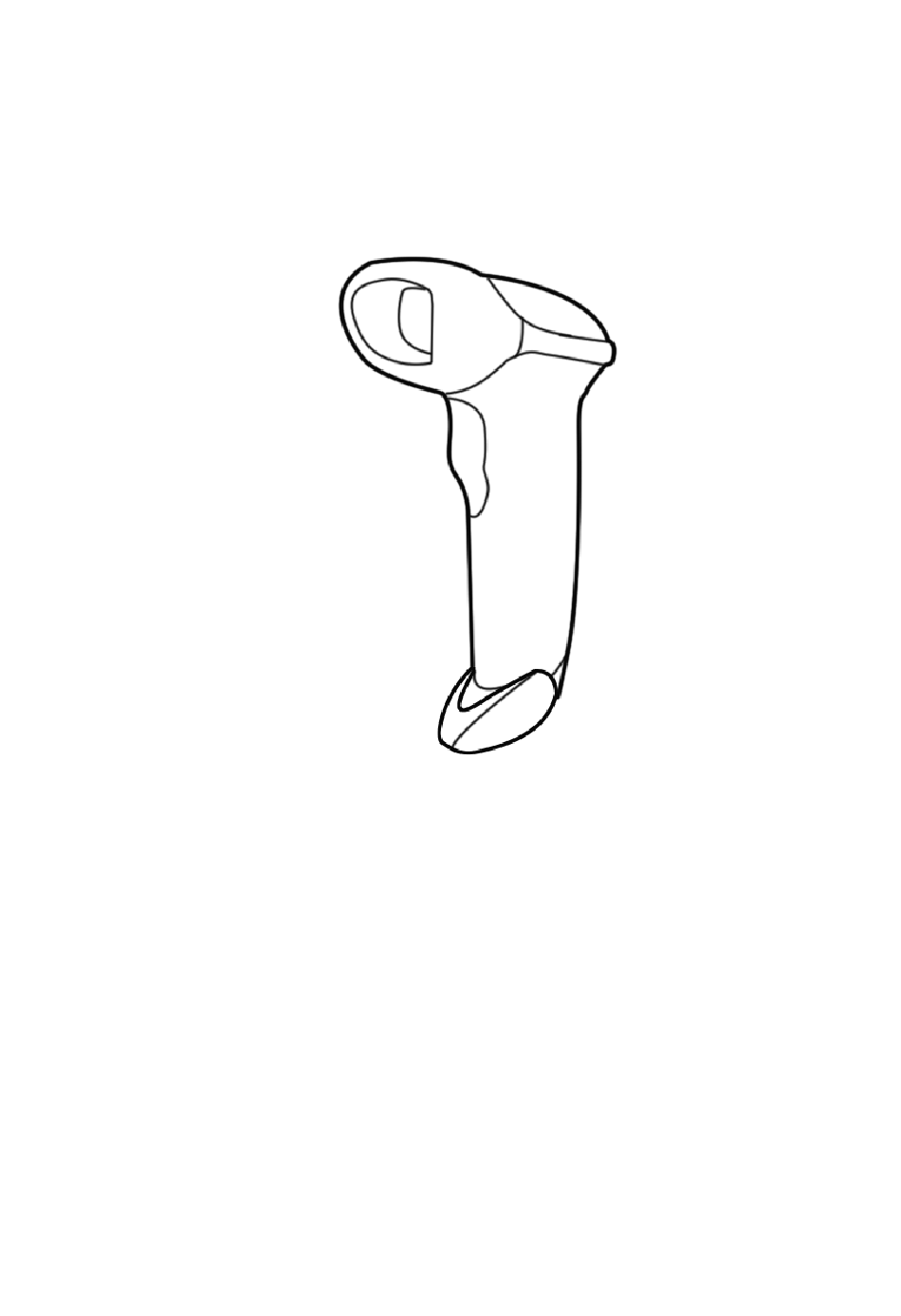

  • Page 1 MJ3650 CCD 433Mhz Barcode Scanner Manual V.10 E-mail: support@minj.cn Web：www.minjcode.com...

  • Page 2: Table Of Contents

    Contents TechnicalParameter Packing list Battery Charging Set Up Step FAQS Troubleshooting Optional Function settings 1. Upload Mode Setting 1.1 Instant Upload Mode Setting 1.2 Storage Mode Setting 2. Scanning Mode Setting 2.1 Manually Triggered Mode (Default) 2.2 Continuous Scan Mode 3.
  • Page 3 If you have any question or concern about the operation of the scanner, please contact us at following Email: support@minj.cn www.minjcode.cn You are suggested to write down the model & the specific scenario and consult the maintenance person should you find the scanner abnormal.

  • Page 4: Technicalparameter

    Technical Parameter ： Mfr P/N MJ2840 Radio Frequency 433Mhz Wireless wireless Range Indoor 100m, outdoor 200m Memory 100000 barcodes Battery capacity 2000mAh Charging power DC 5V 400mA Standby current 18uA-25uA Working current 15-50mA Printing Contract >25% Light source LED Light LED life 12000 hours Button life...

  • Page 5: Packing List

    Packing list ·Barcode scanner*1 ·USB Cable*1 ·Instruction Manual*1 ·USB Wireless receiver *1 Battery & Charging The scanner is powered by 2000mAh chargeable battery. Please ensure that the scanner has enough power before use. Low battery level indication The red indicator light flashes three time, the buzzer would sounded 3 times, it indicates that the power is less than 30%.

  • Page 6: Set Up Step

    Set Up Step: The scanner has been paired with the receiver, and set up already. Step 1. Power on the scanner by pressing the button. The buzzer has a triple beeps, the blue light on the top of scanner will be on. Step 2.

  • Page 7: Faqs

    FAQs: Q1. Why does scanner not read the barcode exactly. When I use the scanner to read a barcode of an item, I get a different result from the barcode itself. Example 1.There are two separate barcodes together. It scanned the first 12 digits in the barcode but not the last five.

  • Page 8: Troubleshooting

    Troubleshooting ： Problem Possible Reason Solution Power on the scanner, the scanner has no reaction. The buzzer does not beep, the Connect the scanner to PC's USB blue light on the top of The battery run out. port for charging via USB cable scanner does not turn on, the red scanning laser does not show up.

  • Page 9: Optional Function Settings

    Optional Function settings Settings of the barcode scanner can be changed by scanning the setup barcodes included in this manual. Upload Mode Setting Instant Upload Mode: Read barcodes and upload it straight to the file you have 1.1. opened. ** To set the scanner to upload barcode instantly, scan the following code: Instant upload mode Scanning indication: (1) The buzzer emits a sound like "DI"...
  • Page 10 * *To convert scanner from "instant upload mode" to "storage mode", scan the following barcode "Storage mode ". Storage mode Put the cursor in the blank, and then scan code below to upload data. Upload data Put the cursor in the blank and then scan the code below to show total number of stored barcode.

  • Page 11: Scanning Mode Setting

    Please make sure that the USB receiver is plugged. High speed Medium speed Low speed Slow speed Scanning Mode Setting 2.1. Manual Trigger mode (default): User Press the trigger, the scanner will emit a red laser to read the barcode. When user release the trigger, the red laser will go off.
  • Page 12 If you want the scanner able to read the same barcode at a certain time interval, you can choose an interval of 0.5 second, 1 seconds ... or a longer period of time. For example, " Same Barcode Detection- 3 seconds" , scanner will read the same barcode again after every 3 second.

  • Page 13: Beep Setting

    Beep Setting **Scan one of the following bar codes to adjust the scanner to turn on or off the boot prompt beep upon successful startup. Boot prompt buzzer-On Boot prompt buzzer-Off **Scan one of the following barcodes to adjust the LED/buzzer when the scanner is successfully read.

  • Page 14: Case Sensitivity Setting(Direct Scan Code Setting)

    National Keyboard Setting (direct scan code setting) %%EN %%GE %%FR English German (Germany) French (France) %%IT %%PT %%ES Italian (Italy) Portuguese (Portugal) Spanish (Spain) %%FI %%CS %%JP Finland Czech Republic Japanese %%ESM %%PTB %%NW Spanish (Mexico) Portuguese (Brazil) South Sami (Norway) %%TRQ *%%WINDOWS Turkish Q keyboard...

  • Page 15: Power Off Settings

    The scanner will be powered off if there is no operation on it over 5 minutes. Short press on the trigger can wake it up. Scan one of the following barcode to set the time interval, when it's idle exceeding the time interval you set, the scanner will be power off.

  • Page 16: Barcode Types Enable/Disable

    To remove Carriage Return,please read code " disable suffix". Barcode Types Enable/Disable The code beginning with word "*" is the default settings. EAN13 (1). ①.Enable and disable of reading function Customers can scan the following setting codes to enable or disable the EAN13 bar code reading function.
  • Page 17 **EAN13 enable check bit EAN13 disable check bit (2). EAN8 ①. Enable and disable of reading function Customers can scan the following setting codes to enable or disable the EAN8 bar code reading function. **Enable to scan EAN8 Disable to scan EAN8 ②.
  • Page 18 **EAN8 enable check bit EAN8 disable check bit (3). UPCA ①. Enable and disable of reading function Customers can scan the following setting codes to enable or disable the UPCA bar code reading function. **Enable to scan UPCA Disable to scan UPCA ②.
  • Page 19 Customers can scan the following setting codes to enable or disable the UPCA conversion EAN13. Enable UPCA conversion EAN13 **Disable UPCA conversion EAN13 ④. Enable and disable of check bit output function **UPCA enable check bit UPCA disable check bit (4) .UPCE0 ①.
  • Page 20 UPCE0-2 enable extra-code **UPCE0-2 disable extra-code UPCE0-5 enable extra-code **UPCE0-5 disable extra-code ③. Enable and disable of check bit output function **UPCE0 enable check bit UPCE0 disable check bit (5). UPCE1 ①. Enable and disable of reading function Customers can scan the following setting codes to enable or disable the UPCE1 bar code reading function.
  • Page 21 UPCE1-2 enable extra-code **UPCE1-2 disable extra-code UPCE1-5 enable extra-code **UPCE1-5 disable extra-code ③. Enable and disable of check bit output function **UPCE1 enable check bit UPCE1 disable check bit (6) .Code128 ①. Enable and disable of reading function Customers can scan the following setting codes to enable or disable the Code128 bar code reading function.
  • Page 22 ③. Code128 prefixing(11) Customers can scan the following setting codes to turn on or off the Code128 bar code prefix (11) function. Code128 prefix(11)-Turn on **Code128 prefix(11)-Off (7). Code39 ①. Enable and disable of reading function Customers can scan the following setting codes to enable or disable the Code39 bar code reading function.
  • Page 23 character and ending character. Code39 enable start character **Code39 disable start character Code39 enable ending character **Code39 disable ending character ④. Code32 mode setting Customers can scan the following setting codes to set whether the Code39 support Code32 mode. Support Code32 mode **Nonsupport Code32 mode Customers can scan the following setting codes to set whether the Code32 prefix is output.
  • Page 24 Code39. Code39 enable checking **Code39 disable checking ⑦. Enable and disable of check bit output settings Customers can scan the following setting codes to enable or disable the configuration of Code39 check bit output settings. Code39 enable check bit **Code39 disable check bit (8) .Code93 ①.
  • Page 25 Code93 longest message length is 32 **Code93 longest message length is 255 (9). Codabar ①. Enable and disable of reading function Customers can scan the following setting codes to enable or disable the Codabar bar code reading function. **Enable to scan Codabar Disable to scan Codabar ②.
  • Page 26 ④. Enable/disable checking Customers can scan the following setting codes to enable or disable the checking setup of Codabar. **Codabar disable checking Codabar only checking of MOD10 Codabar only checking of MOD16 Codabar both checking ⑤. Enable and disable of check bit output settings Customers can scan the following setting codes to enable or disable the Codabar check bit output settings.
  • Page 27 Interleaved 25 shortest message length is 0 **Interleaved 25 shortest message length is 4 **Interleaved 25 longest message length is 32 Interleaved 25 longest message length is 255 ③. Checking format setting Customers can scan the following setting codes to setting whether to processing check of Interleaved 25.
  • Page 28 Enable to scan Industrial 25 **Disable to scan Industrial 25 ②. Reading length setting Customers can scan the following setting codes to set the shortest and longest reading length of Industrial 25. Industrial 25 shortest message length is 0 **Industrial 25 shortest message length is 4 **Industrial 25 longest message length is 32 Industrial 25 longest message length is 255 ③.
  • Page 29 Enable to scan Matrix 25 **Disable to scan Matrix 25 Customers can scan the following setting codes to set the shortest and longest reading length of Matrix 25. Matrix 25 shortest message length is 0 **Matrix 25 shortest message length is 4 **Matrix 25 longest message length is 32 Matrix 25 longest message length is 255 ③.Checking format setting...
  • Page 30 (13). Code11 ①. Enable and disable of reading function Customers can scan the following setting codes to enable or disable the Code11 bar code reading function. Enable to scan Code11 **Disable to scan Code11 ②. Reading length setting Customers can scan the following setting codes to set the shortest and longest reading length of Code11.
  • Page 31 Code11 enable check bit **Code11 disable check bit (14) .MSI Plessey ①. Enable and disable of reading function Customers can scan the following setting codes to enable or disable the MSI Plessey bar code reading function. Enable to scan MSI Plessey **Disable to scan MSI Plessey ②.
  • Page 32 ④. Enable and disable of check bit output settings Customers can scan the following setting codes to enable or disable the configuration of MSI Plessey check bit output settings. MSI Plessey enable check bit **MSI Plessey disable check bit (15) .RSS-14 ①.
  • Page 33 Enable to read the Finite form RSS **Disable to read the Finite form RSS ②. Enable and disable of AI() output Customers can scan the following setting codes to enable or disable the Finite form RSS barcode AI(). Finite form RSS disable AI() **Finite form RSS enable AI() (17).
  • Page 34 ③. Enable and disable of AI() output Customers can scan the following setting codes to enable or disable the Expanding RSS bar code AI(). Expanding RSS disable AI() **Expanding RSS enable AI() (18). Standard 25 ①. Enable and disable of reading function Customers can scan the following setting codes to enable or disable the Standard 25 bar code reading function.
  • Page 35 Standard 25 enable checking **Standard 25 disable checking ④. Enable and disable of check bit output settings Customers can scan the following setting codes to enable or disable the configuration of Standard 25 check bit output settings. Standard 25 enable check bit **Standard 25 disable check bit (19).
  • Page 36 **Plessey longest message length is 32 Plessey longest message length is 255 ③. Enable/disable checking Customers can scan the following setting codes to enable or disable the checking setup of Plessey. Plessey enable checking **Plessey disable checking ④. Enable and disable of check bit output settings Customers can scan the following setting codes to enable or disable the configuration of Plessey check bit output settings.
  • Page 37 Customers can scan the following setting codes to set the shortest and longest reading length of ChinaPost. China Post shortest message length is 0 **China Post shortest message length is 4 **China Post longest message length is 32 China Post longest message length is 255 ③.

  • Page 38: 10.Data Editing

    10.Data Editing 10.1 Prefix Setting The prefix is located before the decoded data and is a string defined by the user. The user can add and modify the prefix by reading the following setting code. Enable Prefix **Disable Prefix The following setting codes can be read, and together with the "ASCII Code" setting code and the "Save"...
  • Page 39 11.Appendix F:ASCII Code...
  • Page 40 "...
  • Page 41 &...
  • Page 42 < >...
