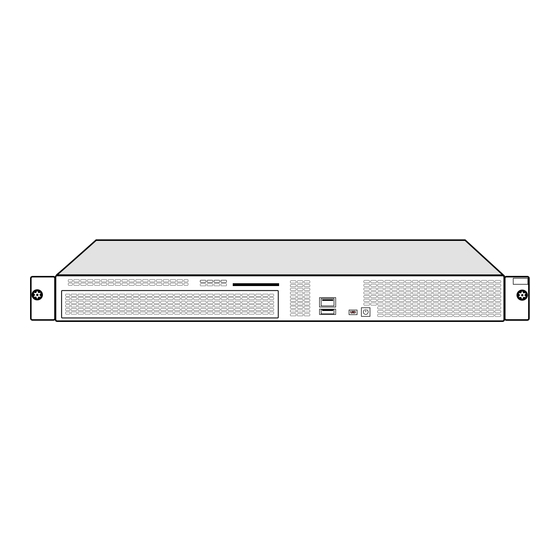

SAFECONTROL HW-SSI-50 Installation Manual

Mounting
Install the rack rail (Align
1
the WEBserver mounting
rail with rack rail).
Slide the server into
2
the rack.
Minimum rack depth
800 mm.
2
3
Connection
1
Connect the Ethernet
2
cable to ETH1 port.
1
2
1
3 Secure the server with
3
the locking screws.
Connect the power
1
supply to the server
using the enclosed
cable (it is advisable
to connect the server
to the power supply
via the UPS).
2
Installation guide
HW-SSI-50
HW-SSI-100
WEBserver-60
WEBserver-100
SAFECONTROL s. r. o.
Vaníčkova 315/7
169 00 Praha 6
IČO: 02084287
DIČ: CZ02084287
support@safecontrol.cz
www.safecontrol.cz
