- Page 1 SECURITY SYSTEM ONLY REMOTE CAR STARTER ONLY SECURITY SYSTEM AND REMOTE CAR STARTER AUTOMATIC / MANUAL TRANSMISSION - 2-WAYS REMOTES ORBITF3400 User Guide MODEL : ORTRF3400 Model : ANT-FMH-2W FCC ID : 2ACKU-R2W02FM FCC ID : 2ACKU-A2W01FM IC : 12084A-R2W02FM...
-
Page 2: Table Of Contents
TABLE DES MATIÈRES TABLE OF CONTENTS TABLE OF CONTENTS ......................... 2 INTRODUCTION ..........................2 CAUTION - WARNING ......................... 3 NOTE ..............................3 INDUSTRY CANADA USER NOTICE ...................... 3 GOVERNMENT REGULATIONS ......................3 USING THE REMOTE CONTROL ......................4 REMOTE-STARTING ..........................5 REMOTE-STARTING THE VEHICLE ....................... -
Page 3: Caution - Warning
CAUTION - WARNING IT IS THE RESPONSIBILITY OF THE REMOTE CAR STARTER OPERATOR TO: • ensure that the vehicle is parked in a safe and responsible manner. • ensure that the vehicle is not remotely started indoors (garage, underground park- ing). -
Page 4: Using The Remote Control

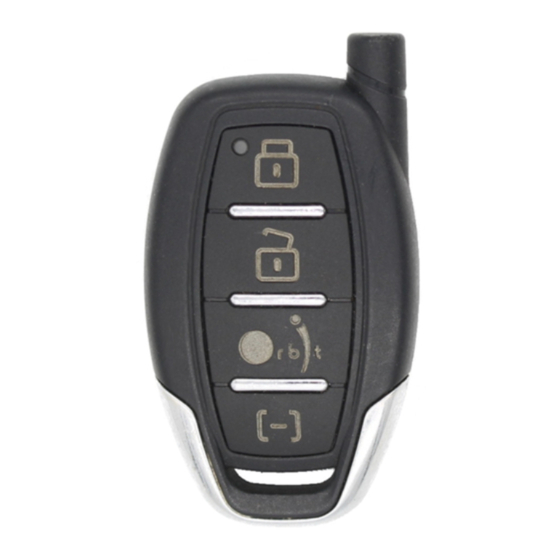

USING THE REMOTE CONTROL The remote starter is equipped with two remotes 2-way 4-button multi-channel remote control . TIME COMMAND CONFIRMA- COMMAND PRES- DESCRIPTION TION 1beep Locks all doors, arm the anti-theft system and activates the Alarm (if LOCK SEC. installed). -
Page 5: Remote-Starting
REMOTE-STARTING REMOTE-STARTING THE VEHICLE This Remote-Starter supports both manual and automatic transmission vehicles. For manual transmis- sion vehicles see the Ready Mode section. REMOTE-STARTING To remote-start the vehicle press the START button for approximately STEP1 3 second. The remote Green Led fl ash and a ascending melodie will sound to confi rm. - Page 6 METHOD 1 PROGRAMMED BY DEFAULT THIS METHOD WILL ACTIVATE THE REMOTE CAR STARTER SEQUENCE ONLY WHEN THE END USER IS USING THE REMOTE CAR STARTER REMOTE: The vehicle must be running. STEP 1 Make sure that all doors are closed and the transmission is in the NEUTRAL position.
-
Page 7: Driving Off
DRIVING OFF When the vehicle is running with the Remote-Starter, enter the vehicle and proceed with the following steps: sert the key and turn it to the ignition (ON/Run) position. STEP 1 WARNING: Do not turn the key to the START position when the engine is running. -
Page 8: Turbo Mode (Automatic Transmission)
STEP 5 Press the remote START button. The parking lights will fl ash once and then remain on. The remote Green Led fl ash and a ascending melodie will sound to confi rm. STEP 6 Remove the key from the ignition barrel. The vehicle will continue to run with the the Remote-Starter. -
Page 9: Valet Coding Disabled (Default)
Note: When the Remote-Starter/Alarm is in Valet Mode, the LED will stay ON solid instead of fl ashing after the doors are locked. The LED will turn off only after the Remote-Starter/Alarm exit Valet Mode. The valet mode can be programmed to use a coded entry in order to increase the security of your alarm system and to prevent accidents. -
Page 10: Cold Start Timer Mode
To enter Valet Mode using the remote transmitter proceed with the following steps: STEP 1 Press and release the FUNCTION button, within 12 seconds simultaneously press and hold the LOCK and UNLOCK buttons for 1 second. The remote’s Green LED will fl ash and beep once to confi rm. -
Page 11: Remote Locking And Unlocking
Aux 2 : Passenger side sliding door (if installed). Press and relase the FUNCTION button (the remote LED fl ashes slowly white) within 12 seconds press the UNLOCK button.The remote’s Green Led fl ash and beep once to confi rm. Note: The function of the auxiliary outputs may vary depending on the vehicle and the installation. In most cases these outputs are not used, and in some cases they may be used to control other features such as the power windows, sunroof, or heated seats. -
Page 12: Active Or Passive Arming
ACTIVE OR PASSIVE ARMING Passive Mode will allow the Alarm to automatically rearm itself 60 seconds after it is disarmed if no door(s) (or trunk) are open(ed). Opening a door before the 60 seconds has expired will reset the timer but will also prevent the Alarm from locking the doors. -
Page 13: Open Zone Notification
• When the vehicle is unlocked the horn/siren will sound with several short chirps to indicate the zone that has previously triggered the Alarm. (See Remote-Start/Alarm Diagnostics page 14) NOTE 1: If the vehicle is running with the Remote-Starter and the Alarm is triggered the Remote-Starter will shut down immediately. -
Page 14: Failed Remote-Start
FAILED REMOTE-START There are several different installation factors and devices that must work together in order for your vehicle to Remote-Start properly. In some cases a failed Remote Start is not the fault of the Remote- Starter itself. Here are some things to consider when the Remote-Starter fails. •... -
Page 15: Manufacturer Warranty
MANUFACTURER WARRANTY REMOTE STARTERS: Fortin Electronics Systems, hereinafter «the Manufacturer» warrants that the remote start mo- dule (control box), hereinafter « theModule» will be free from defects in thedesign or manufacture. The warranty is for the exclusive benefi t of the original consumer who purchases a Module from an authorized dealer and who installs the Module on a vehicle in his possession. - Page 16 USER GUIDE Page 16 / 16...
