Fusion (Model XF)
Controller V4.5 & TRIAC Replacement
2015-03-08
Technical Assistance: 1-(800)-727-8520
Manuals: hotronix.com/heat-press-manuals

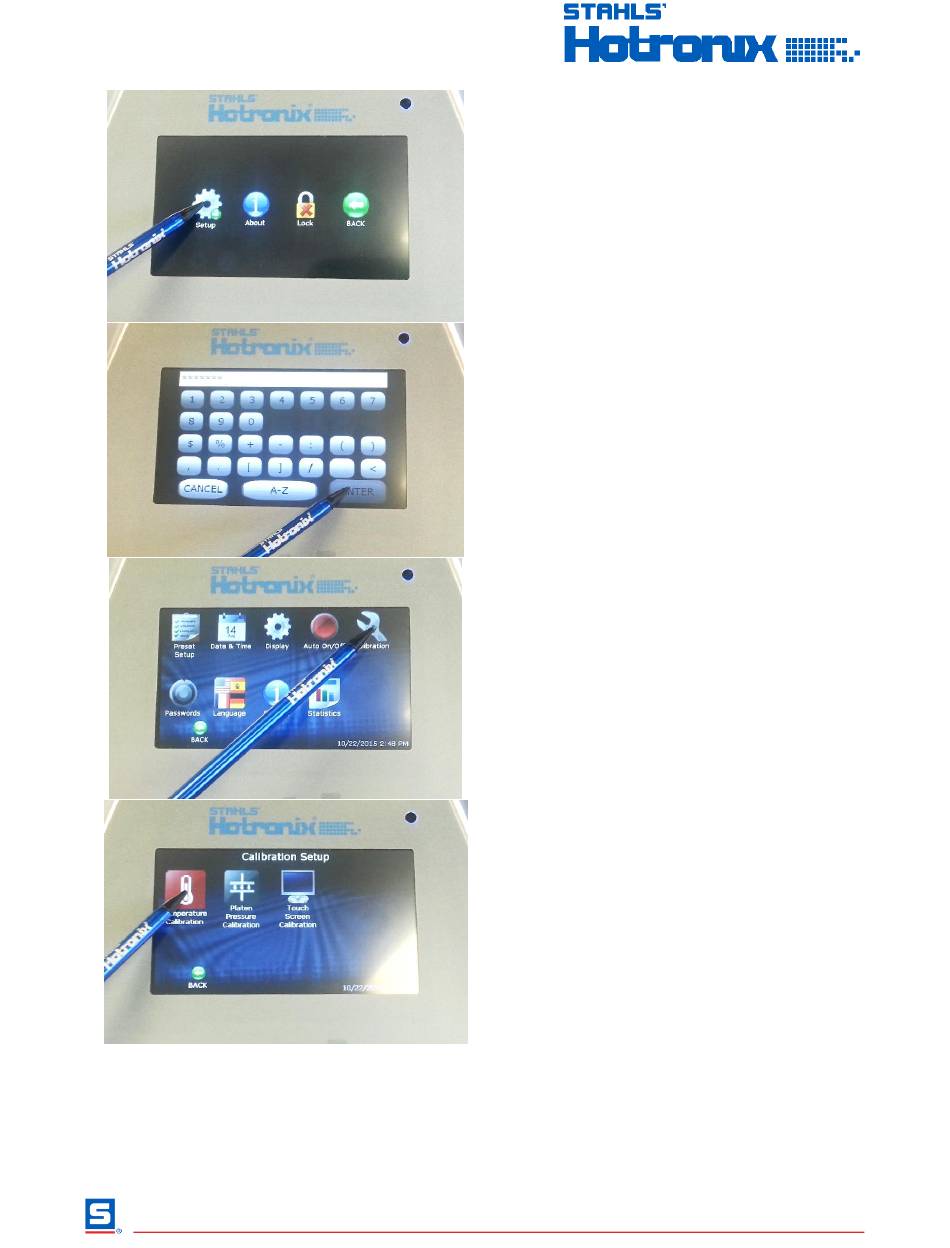

Press "SET UP"
Type in password: JAGUAR2 (JAGUAR on
older models) and press "ENTER"
NOTE: do not use this password for anything
besides this temperature calibration or
warranty is void
Press "CALIBRATION"
Press "TEMPERATURE CALIBRATION"
Page 14 of 17
