Fusion (Model XF)
Power Switch Replacement
2015-10-27
1
2
Technical Assistance: 1-(800)-727-8520
Manuals: hotronix.com/heat-press-manuals

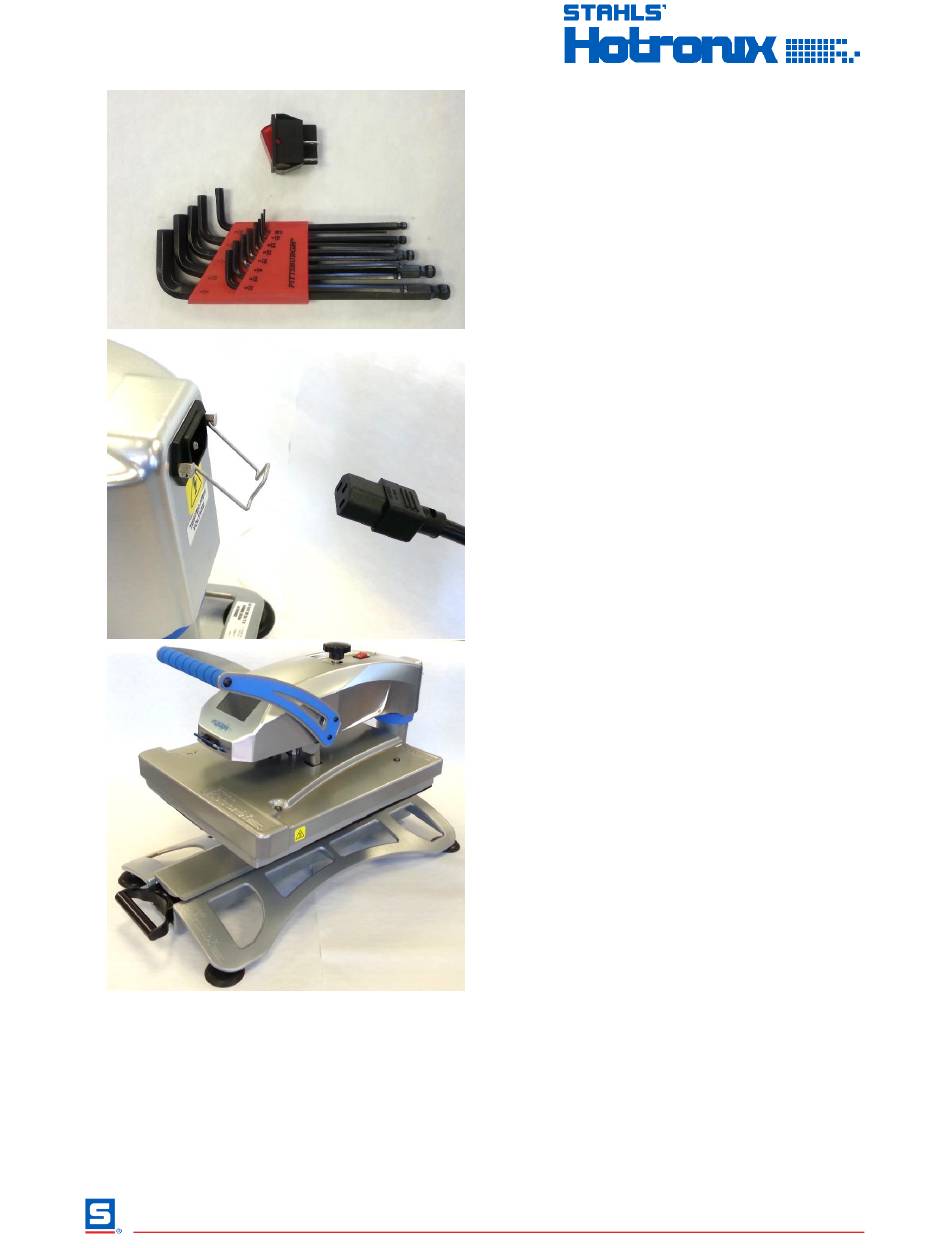

Included Parts:

1. Power Switch

Required Tools:

2. Allen Wrenches (3/32" & 9/32")
CAUTION: Detach power cord before
proceeding
Lower heater but do not lock into place, such
that it rests gently on lower platen
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hotronix Fusion XF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Stahls Hotronix Fusion XF

  • Page 1 Fusion (Model XF) Power Switch Replacement 2015-10-27 Included Parts: 1. Power Switch Required Tools: 2. Allen Wrenches (3/32” & 9/32”) CAUTION: Detach power cord before proceeding Lower heater but do not lock into place, such that it rests gently on lower platen Technical Assistance: 1-(800)-727-8520 Manuals: hotronix.com/heat-press-manuals Page 1 of 4...
  • Page 2 Fusion (Model XF) Power Switch Replacement 2015-10-27 Loosen set screw in shaft of pressure adjustment knob and remove knob Remove 4 #8-32 x ½” Thumb Screws (right 2 shown) from underside of control housing using 9/32” Allen Wrench Lift off control housing and lay it gently on left side of press Squeeze retaining clips together to release switch from housing...
  • Page 3 Fusion (Model XF) Power Switch Replacement 2015-10-27 Transfer wires from old Power Switch to new, one at a time to ensure each wire attaches to the correct terminal Install new Power Switch into housing and confirm that wiring is correct as shown Replace housing onto press and insert 4 #8-32 x ½”...
  • Page 4 Fusion (Model XF) Power Switch Replacement 2015-10-27 Replace Pressure Adjustment Knob, aligning set screw with flat of shaft and tightening with 3/32” Allen Wrench Raise handle into open position, plug in press and turn ON to verify proper operation Technical Assistance: 1-(800)-727-8520 Manuals: hotronix.com/heat-press-manuals Page 4 of 4...
