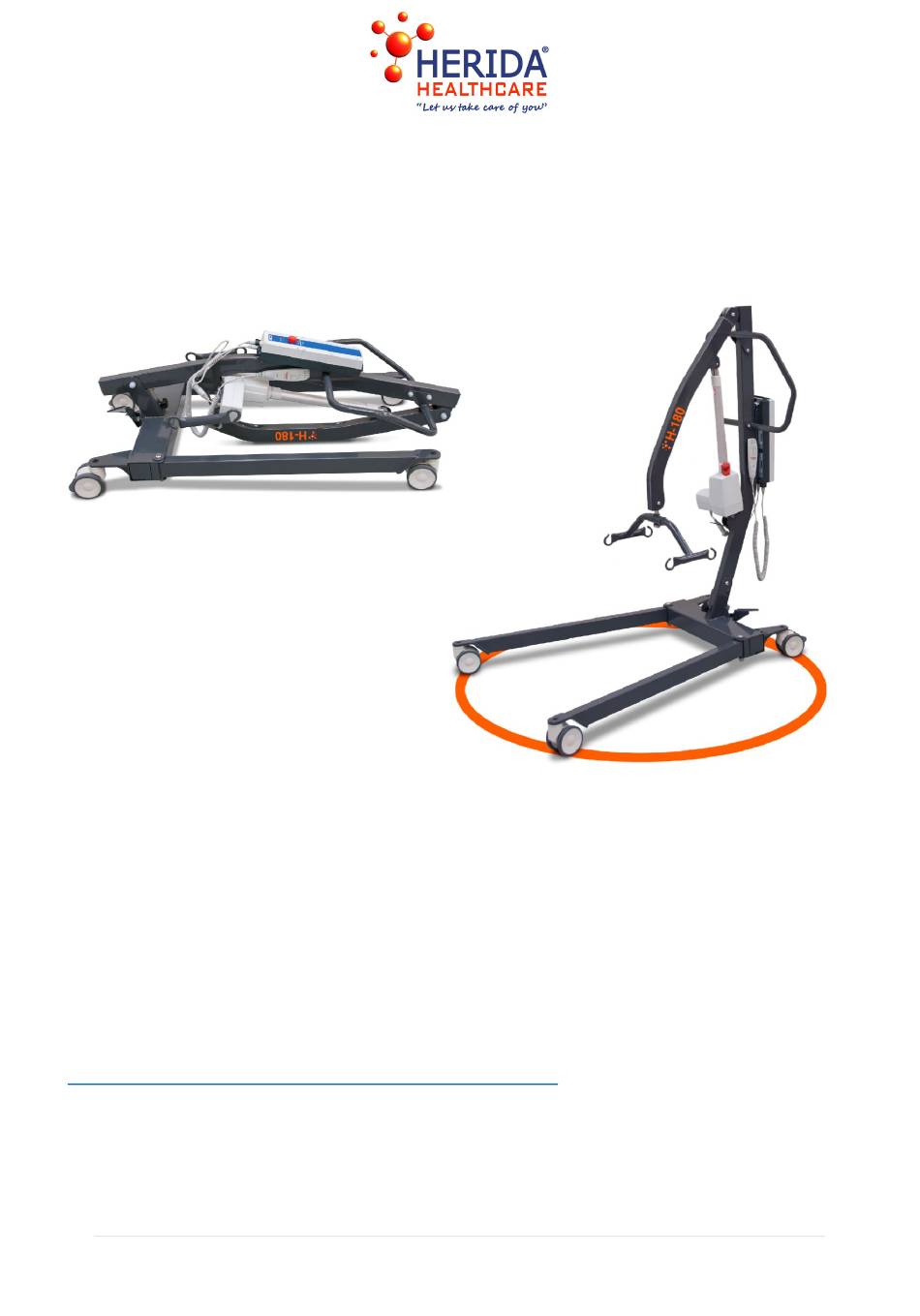

Mobile Hoist User Guide
H-180 Jumbo / Home Care
Prior To Use
Please ensure that these User Instructions and
the General User Safety Guide are read prior to
first use of any moving and handling practice.
Herida Healthcare Ltd recommend that prior to
using any hoist, a full risk assessment must be
completed by qualified personnel in order to
determine that the correct hoist, sling, and
transfer procedure are suitable for each
individual.
Contraindication: If you are not fully trained in this product - DO NOT USE!
Ensure you are aware of the hoist manufacturer's fitting instructions. Please note that this hoist is
compatible for a loop fitting sling only. Do NOT use a clip fit sling on a loop designed spreader bar. Do
NOT use a loop designed sling on a stud/clip designed spreader bar.
Notes On Slings:
For all other sling information/clip & hoist size compatibility, please refer to pages 8 & 9 of the Herida
Sling General User Safety Guide. Copies available via the website.
For general guidance for how to fit a sling, please visit:
www.heridahealthcare.co.uk/education/product-training-guides
1 |
P a g e
T
000 1 Ho is t H1 8 0 J u mb o Us er G u i de
A pr i l 20 2 0
Advertisement
Table of Contents
Related Manuals for Herida Healthcare H-180 Jumbo
Summary of Contents for Herida Healthcare H-180 Jumbo
- Page 1 General User Safety Guide are read prior to first use of any moving and handling practice. Herida Healthcare Ltd recommend that prior to using any hoist, a full risk assessment must be completed by qualified personnel in order to...
-
Page 2: Table Of Contents
Contents Warranty Terms Hoist Illustration Introduction to the Hoist Hoist Assembly Instructions Hoist Safety Advice Hoist Operation Storage & Folding for Transportation Maintenance & Servicing Hoist Technical Specification Company Information & Contact Details P a g e 000 1 Ho is t H1 8 0 J u mb o Us er G u i de A pr i l 20 2 0... -
Page 3: Warranty Terms
This warranty entitles free replacements for defective parts only, exclusive of labour. Herida Healthcare Ltd. will be liable for return costs only if the warranty claim is valid after the initial investigation. There may be a requirement to produce additional warranty information to substantiate the claim. -
Page 4: Hoist Illustration
Hoist Illustration Boom Mast Handle Spreader Bar Control Box & Battery Hoist Controls Actuator Foot Pedal Legs Rear Castors with Brake Front Castors NB: Image for illustration purposes only. A 2-point spreader bar is supplied as standard & the 4-point spreader bar charged at a premium. P a g e 000 1 Ho is t H1 8 0 J u mb o Us er G u i de A pr i l 20 2 0... -
Page 5: Introduction To The Hoist
Introduction to the Hoist The hoist is a medical device for patient lifting only by a fully trained professional. Do NOT allow it’s use for any other purpose. Only use the hoist on a flat surface and NEVER attempt to hoist or move a patient on a slope. -
Page 6: Hoist Assembly Instructions
Hoist Assembly Instructions 1. Open the box carefully. (Fig1) SAFETY INFORMATION: do not use a sharp blade or knife as this may cause damage to the equipment. Remove all excess packaging. 2. Carefully remove the hoist from the carton. (Fig2) SAFETY INFORMATION: a 2-person lift is recommended to lift the hoist out. - Page 7 Your H-180 Jumbo hoist is now ready for use. P a g e 000 1 Ho is t H1 8 0 J u mb o Us er G u i de A pr i l 20 2 0...
-
Page 8: Hoist Safety Advice
Hoist Safety Advice The following safety advice will ensure that your hoist lifting operations will be easy & trouble-free. Do not use the hoist other than for lifting patients. • A risk assessment should always be carried out by a fully trained professional prior •... -
Page 9: Hoist Operation
Hoist Operation Raising & Lowering The Boom: The boom can be raised and lowered by the powerful 10,000n motor, this is activated by a hand set that has direction arrows indicating up and down movement. The hand set is plugged into the base of the control box. -
Page 10: Storage & Folding For Transportation
Storage & Folding for Transportation (Folding Mast Type Only) 1. Lower the boom arm with the hand-set until the spreader bar sits on top of the steel bracket. Attach the strap & buckle around the mast & spreader bar, holding it firmly in place and ensuring that the mast is secure &... -
Page 11: Maintenance & Servicing
Maintenance & Servicing These checks are a VISUAL aid to ensure the hoist can be used safely & should be carried out DAILY: CHECK - The legs open and close correctly. • CHECK - The hoist moves freely on its castors. •... - Page 12 Maintenance & Servicing The maintenance & servicing recommendations are in line with the Lifting Operations and Lifting Equipment Regulations (LOLER1998). These regulations are comprehensive and can be viewed at the following website: www.hse.gov.uk/work-equipment-machinery/loler.htm. This maintenance must take place every 6 months & be carried out by a competent person. If outside the UK, please confirm with if there are different testing requirements.
- Page 13 The hoist should be cleaned with warm soapy water. Harsh cleaning liquids, chemicals or abrasives should be avoided as these may damage the surface of the hoist & hoist labelling. Fig1 - Herida Healthcare Test & Inspection Certificate Fig3 – Control Box / Fig4 – Actuator Fig2 –...
- Page 14 Maintenance & Servicing Fig5 - Castors Fig6 – Mast Fig7 - Boom Fig8 – Spreader Bar Fig9 – Foot Pedals Fig10 – White Spacer Fig11 – Check all nuts & bolts to ensure they are tight & intact 14 | P a g e 000 1 H o is t H 1 80 J um b o Us er G u id e A pr i l 2 0 2 0...
- Page 15 Technical Specifications Reference Documents AS/NZS ISO 10535:2011 Maximum safe working load MC1915S Max. Safe Working Load (patient + spreader bar + sling) 180 Kg Directio Dimensions and weights (mm-Kg) Front / rear castor diameter 100 / 100 Max. reach at 600 mm (A) Max.
- Page 16 Technical Specifications Height to upper edge of legs (M) Min. free height (P) Minimum distance from wall to CSP at maximum reach (legs open) (Q) 248.5 Minimum distance from wall to CSP at maximum height (legs open) (R) Minimum distance from wall to CSP at minimum height (legs open) (S) Height when folded (foldable version only) (V) Length when folded (foldable version only) (W)
- Page 17 Technical Specifications Electrical system Voltage output 24 V DC, max. 250 VA Voltage supply 100 – 240 V AC, 50/60 Hz Maximum current input 400 mA CBJ Care Protection class (entire device) IPX4 Insulation class Class II equipment Applied part complying with the specified requirements for protection against electrical shock according to Type B Applied Part...
- Page 18 Actuator Specifications Linak® Jumbo Care System Battery Pack Control Box Actuator Handset Power Cable Linak® Home Care System Battery Pack & Control Actuator Handset Power Cable 18 | P a g e 000 1 H o is t H 1 80 J um b o Us er G u id e A pr i l 2 0 2 0...
- Page 19 Contact Details For further information on our full range of slings, hoists & pressure care equipment, please visit our website. Herida Healthcare have numerous instructional videos & user guides for our wide range of products. These can be found at: www.heridahealthcare.co.uk/education/product-training-...
