- Page 1 OPTITEMP LCD-D100 Handbook Loop powered LCD display module © KROHNE 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en...
- Page 2 All rights reserved. It is prohibited to reproduce this documentation, or any part thereof, without the prior written authorisation of KROHNE Messtechnik GmbH. Subject to change without notice. Copyright 2024 by KROHNE Messtechnik GmbH - Ludwig-Krohne-Str. 5 - 47058 Duisburg (Germany) www.krohne.com 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en...
-
Page 3: Table Of Contents
5.1 Operational mode ......................22 5.1.1 Show ID (id) ........................... 22 5.1.2 Show Min / Max values......................22 5.2 Operating in low ambient temperature................22 5.3 Error codes ........................22 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en www.krohne.com... - Page 4 6.4 Disposal .......................... 25 6.4.1 Disassembling and recycling....................25 6.4.2 Disassembling and recycling of the LCD-D100 display module .......... 26 7 Technical data 7.1 Technical data......................... 27 7.2 Dimensions ........................29 8 Notes www.krohne.com 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en...
-
Page 5: Safety Instructions

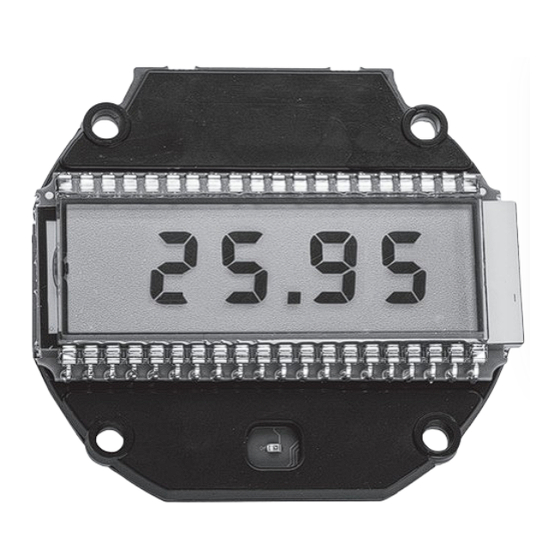

OPTITEMP LCD-D100 1.1 Intended use The OPTITEMP LCD-D100 is a display module to convert a 4...20 mA current signal into digits show on the display and is powered from the measuring current. LCD-D100 display module is intended for installation in different connection heads, fields or wall mounted housings. -
Page 6: Conformity
We hereby expressly prohibit the use of the contact data published as part of our duty to publish an imprint for the purpose of sending us any advertising or informational materials that we have not expressly requested. www.krohne.com 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en... -
Page 7: Disclaimer
This document is provided to help you establish operating conditions, which will permit safe and efficient use of this device. Special considerations and precautions are also described in the document, which appear in the form of icons as shown below. 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en www.krohne.com... -
Page 8: Warnings And Symbols Used
In general, devices from the manufacturer may only be installed, commissioned, operated and maintained by properly trained and authorized personnel. This document is provided to help you establish operating conditions, which will permit safe and efficient use of this device. www.krohne.com 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en... -
Page 9: Device Description
OPTITEMP LCD-D100 2.1 General description The OPTITEMP LCD-D100 is a loop powered digital display module for installation directly in a 4- 20 mA loop without need for external power supply. The display converts the 4-20 mA signal into a 4-digit value shown on the display were the range of the value can be set from -1999 to 9999. -
Page 10: Nameplate
3 Terminals for power supply "PS" and 2-wire transmitter "TX" with number description 4 Part number, serial number (yyww = year and week of manufacturing) and batch number 5 Regulation symbols 6 4...20 mA Loop voltage drop www.krohne.com 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en... -
Page 11: Installation
Figure 3-2: Back side of LCD-D100 display module 1 Pushbutton with step (decrease) function 2 Pushbutton with enter function 3 Pushbutton with step (increase) function 4 Location of NFC antenna 5 Connection terminals 6 Assembly holes 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en www.krohne.com... -
Page 12: Start Up
8. NFC mode, the default setting value refers to the configuration via NFC is on. 9. Error correction, the default setting refers to no error correction. 10. Reset back to factory default. 11. End setup and return to indication. www.krohne.com 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en... -
Page 13: Configuration
2. Download the app OPTICHECK Temperature Mobile / INOR Connect to your mobile device 3. Required versions for smartphone: iOS: iOS 13 or later and Iphone 7 or later Android: Android 4.4 or later 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en www.krohne.com... - Page 14 4. Once you have set the desired values in the app, you transfer it to the display module by clicking the transfer button and holding the mobile device against the display module until a green check box appears confirming that the transfer has been completed. www.krohne.com 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en...
-
Page 15: Configuration Using The 3 Pushbuttons Located On The Backside Of The Indicator
When the memory is cleared the display returns to mode normal operational mode Number refer to Display Interface on page 11. Table 3-1: Explanation of key and function (view from front side of the LCD-D100 display module) 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en www.krohne.com... - Page 16 Step Step Save Time out Submenu Step Step Save Time out Step Step Save Time out Fn 00 05 10 15 30 Down Step Figure 3-5: Configuration procedure using pushbuttons www.krohne.com 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en...
-
Page 17: Setup The Span (Lo)
• Press key ◁ / " ③ " to increase the filter value and key ▷ / " ① " to decrease the filter value.Number " ① " and " ③ " refer to Display Interface on page 11. • Filter values ranging from 0 to 6 can be setted. 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en www.krohne.com... -
Page 18: Setup Of The Tag Id (Id)
• Press the middle key ⃞ / " ② " to save the changes and exit the submenu. Number " ① ", " ② " and " ③ " refer to Display Interface on page 11. www.krohne.com 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en... -
Page 19: System Error Correction Submenu (Ref)
The LCD-D100 have a time out function in the configuration mode. When none of the push buttons have been used for 15 seconds the module will return to operating mode without saving any changes. 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en www.krohne.com... -
Page 20: Electrical Connections
2 LCD-D100 display module terminals (connection 2 and 3 are internally shorted) 3 Transmitter connection (numbers refer to 2-wire temperature transmitter terminals from Krohne / Inor) (The terminal numbers in the connection diagram can be different on transmitters from other company.) - Page 21 Figure 4-3: LCD-D100 Connection diagram with current source connected to display module terminals 1 Current source 4-20 mA 2 LCD-D100 display module terminals (connection 2 and 3 are internally shorted) 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en www.krohne.com...
-
Page 22: Operation
• Er: 11 - To high measured reference value for error correction. System errors • 80 - Error when loading settings from memory. • 81 - Error when saving settings to memory. • 82 - Error when applying default settings. www.krohne.com 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en... -
Page 23: Service
• to check and ensure, if necessary by rinsing or neutralising, that all cavities are free from such dangerous substances, • to enclose a certificate with the device confirming that it is safe to handle and stating the product used. 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en www.krohne.com... -
Page 24: Form (For Copying) To Accompany A Returned Device
We have flushed out and neutralized all cavities in the device. We hereby confirm that there is no risk to persons or the environment caused by any residual media contained in this device when it is returned. Date: Signature: Stamp: www.krohne.com 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en... -
Page 25: Disposal
All plastic parts of this product weight below 50 g and as such very difficult to mark. INFORMATION! Printed circuit boards (PCB) for OPTITEMP LCD-D100 is halogen free by design and it is encapsulated in the casting polymer plastic, which means that dismantling the product is not possible. -
Page 26: Disassembling And Recycling Of The Lcd-D100 Display Module
Chrome VI (Cr VI) 7440-47-3 Polybrominated biphenyls (PBB) Bis (2-ethylhexil) phthalate (DEHP) 117-81-7 Butyl benzyl phthalate (BBP) 85-68-7 Dibutyl phthalate (DBP) 84-74-2 Diisobutyl phthalate (DIBP) 84-69-5 Table 6-2: Weight per material www.krohne.com 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en... -
Page 27: Technical Data
Any range between -1999 to 9999 Decimals Selectable, 0 to 3 Low failure indication Input current ≤ 3.6 mA, Flashing symbol Lo High failure indication Input current ≥ 21.0 mA, Flashing symbol Hi 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en www.krohne.com... - Page 28 0.25 mm ...0.75 mm Material Copolymer polyamide and fiberglass Weight for LCD-D100 with 8.9 39.5 g / 0.087 lb mm digits Mounting 4 holes, Ø 3.0 mm Table 7-1: Specifications www.krohne.com 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en...
-
Page 29: Dimensions
38.5 ± 0.2 1.52 ± 0.01 17.3 ± 0.5 0.68 ± 0.02 54.1 ± 0.5 2.13 ± 0.02 60.0 ± 0.5 2.36 ± 0.02 Table 7-2: Dimensions in mm and inch 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en www.krohne.com... -
Page 30: Notes
NOTES OPTITEMP LCD-D100 www.krohne.com 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en... - Page 31 NOTES OPTITEMP LCD-D100 03/2024 - 4009369801 - MA OPTITEMP LCD-D100 R01 en www.krohne.com...
- Page 32 Engineering, commissioning, calibration, maintenance and training services Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 47058 Duisburg (Germany) Tel.: +49 203 301 0 Fax: +49 203 301 10389 info@krohne.de The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
