CM33/34 Dash Cam Installation Guide
Cable
Alignment line
Increment line
Mount locking screw (Hex M3), both sides
https://kb.samsara.com/hc/en-us/articles/24833383748877-CM33-34-Dash-Cam-Installation-Guide
CM33/34 Dash Cam Installation Guide – Samsara Support
Increment lines
Microphone
Dash cam button
LED
[a]
1/10
Advertisement
Related Manuals for Samsara CM33
Summary of Contents for Samsara CM33
- Page 1 5/23/24, 8:30 AM CM33/34 Dash Cam Installation Guide – Samsara Support CM33/34 Dash Cam Installation Guide Cable Increment lines Alignment line Microphone Increment line Dash cam button Mount locking screw (Hex M3), both sides https://kb.samsara.com/hc/en-us/articles/24833383748877-CM33-34-Dash-Cam-Installation-Guide 1/10...

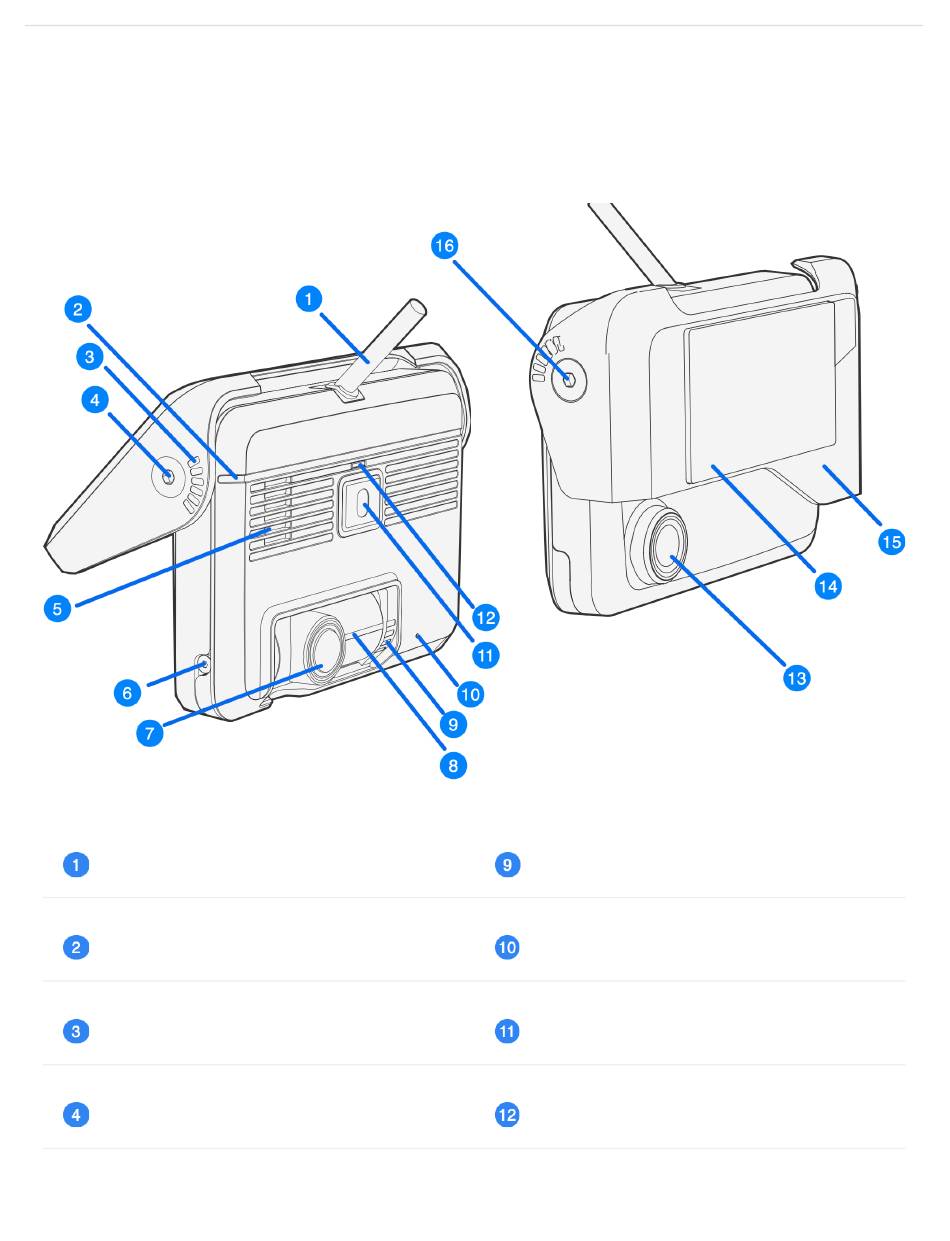

- Page 2 5/23/24, 8:30 AM CM33/34 Dash Cam Installation Guide – Samsara Support Speaker Front-facing camera and protective liner Inward camera locking screw (Torx T8) Adhesive and protective liner Inward-facing camera and protective liner Mount Alignment line Mount locking screw (Hex M3), both sides...
- Page 3 Remove an Installed Dash Cam. Make sure your Vehicle Gateway (VG) is installed and activated. This can be completed on the Samsara Dashboard or on the Samsara Fleet App. Mount the dash cam. Identify the mounting location on the windshield and thoroughly clean with alcohol wipe.
- Page 4 5/23/24, 8:30 AM CM33/34 Dash Cam Installation Guide – Samsara Support For optimal visibility, the camera should be positioned below the rear view mirror, within the windshield wiper sweep. Refer to the AI positioning recommendations and mounting tips for US and UK. Ensure clearance for Allen key access on both sides of the device.
- Page 5 5/23/24, 8:30 AM CM33/34 Dash Cam Installation Guide – Samsara Support Use the larger end (Hex M3) of the Allen key to loosen both mount screws before adjusting. Rotate the camera body so it hangs perfectly vertical, then lightly tighten the screws. Do not fully tighten until you con rm camera positioning later in this work ow.
- Page 6 5/23/24, 8:30 AM CM33/34 Dash Cam Installation Guide – Samsara Support (CM34 Only) Use the smaller end (Hex M2) of the Allen key to loosen the inward-facing camera screw. Angle the lens toward the center of the cabin, then lightly tighten the screw. Do not fully tighten until you con rm camera positioning later in this work ow.
- Page 7 5/23/24, 8:30 AM CM33/34 Dash Cam Installation Guide – Samsara Support Connect the dash cam. Run the cable across the top of the windshield. Secure using cable clips or tuck the cable under the glass seal around the windshield. Plug the camera into the USB port on the Vehicle Gateway.
- Page 8 For best results, do not wrap the cable around the Vehicle Gateway or route across the diagnostics cable. Complete the installation. Turn the vehicle on. Verify installation: Samsara dashboard: See Test Dash Cam Positioning Samsara Fleet App: See Streamline Hardware Installation with the Samsara Fleet App https://kb.samsara.com/hc/en-us/articles/24833383748877-CM33-34-Dash-Cam-Installation-Guide 8/10...
- Page 9 5/23/24, 8:30 AM CM33/34 Dash Cam Installation Guide – Samsara Support If all points of interest are not captured (see the following example), use the provided Allen key to loosen the camera before re-adjusting. After all points of interest are captured, use the Allen keys to tighten both mount locking screws and, if applicable, the inward camera locking screw.
- Page 10 Do not attempt to repair this product, use any third party replacement parts with this product, or otherwise modify this product, except in accordance with product manuals or as otherwise instructed by Samsara. Failure to do so may cause property damage, lead to physical injury, or void your product warranty.
