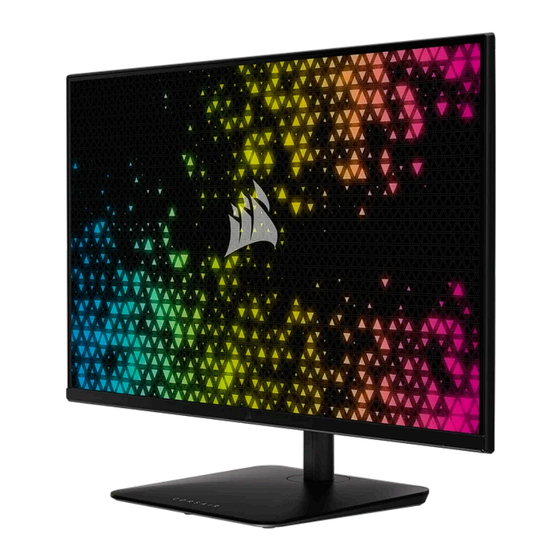

- Page 1 4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR MANUAL | QUICK START GUIDE https://www.corsair.com/us/en/explorer/gamer/monitors/corsair-xeneon-32uhd144-a/ 1/23...
- Page 2 4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER INTRODUCTION Product Setup, User Information, and Warranty/Dead Pixel policy can be found at https://qsg.corsair.com/xeneon-monitors PRECAUTIONS Only use the accessories that are provided with the monitor or that are recommended by the manufacturer.
-
Page 3: Package Contents
4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER Do not use the monitor near water, drinks, or any type of liquids. Failure to do so may result in electric shock or damage to the monitor. Make sure to unplug the monitor from the power outlet before cleaning. - Page 4 4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER A. XENEON 32UHD144-A DISPLAY PANEL B. MOUNTING POST C. STAND D. MOUNTING SCREWS (x4) E. AC ADAPTER F. AC POWER CABLE G. DISPLAYPORT CABLE (1.5M) H. HDMI CABLE (1.5M) I.
- Page 5 4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER 2. Carefully open the foam bag covering the panel (see image 1) to expose the mounting area. Do not remove the panel from the bag. 3. Align the monitor post with the mounting slots on the back of the panel (see image 2).
-
Page 6: Height Adjustment
4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER HEIGHT ADJUSTMENT RAPIDROUTE CABLE MANAGEMENT https://www.corsair.com/us/en/explorer/gamer/monitors/corsair-xeneon-32uhd144-a/ 6/23... - Page 7 4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER Your Xeneon display has built-in RapidRoute cable management to keep your desktop tidy. There are 2 adjustable cable clips that slide up and down the monitor post to allow for customizing your cable management needs.
- Page 8 4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER WALL MOUNT COMPATIBILITY Before mounting your display with compatible wall mount (VESA 100mm x 100mm), make sure that: You have removed the stand from the display with a Phillips screwdriver The wall mount bracket that you purchased supports the weight of this display https://www.corsair.com/us/en/explorer/gamer/monitors/corsair-xeneon-32uhd144-a/...
- Page 9 4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER Review the instructions that came with your wall mount for more information about how to correctly mount your display. WARNING: Your display has four VESA mounting holes on the back. You must secure a wall mount bracket to all four holes.
- Page 10 CORSAIR iCUE functionality and downstream USB 3.0 ports. E. USB-IN Port - Upstream USB input port. This port or the USB Type-C Port must be connected to a USB-capable port on your host device to support CORSAIR iCUE functionality and downstream USB 3.0 ports.
-
Page 11: On-Screen Display (Osd)
Your monitor includes a joystick on the rear, right facing side for opening shortcuts and navigating display settings. Note that many of these settings can also be controlled in CORSAIR iCUE software if you have the USB hub connected to your computer via USB IN port. - Page 12 4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER OSD - PICTURE SETTINGS The first menu, labeled “Picture”, contains the following settings for adjusting the overall picture quality. https://www.corsair.com/us/en/explorer/gamer/monitors/corsair-xeneon-32uhd144-a/ 12/23...
- Page 13 4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER SETTING OPTIONS DESCRIPTION Standard Selects a display preset factory calibrated for general use and best power savings. Movie Selects a display preset optimized for watching movies. Text Selects a display preset optimized for reading text.
- Page 14 4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER To turn o speci c portions of the backlight for deeper black and better contrast Local Dimming ON or OFF ratio. OFF, Dot, Crosshair Enable Crosshair function. Cross, Angle OSD - OSD SETTING The second menu, labeled “OSD Setting”, contains the following settings for adjusting...
- Page 15 4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER https://www.corsair.com/us/en/explorer/gamer/monitors/corsair-xeneon-32uhd144-a/ 15/23...
- Page 16 4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER SETTING OPTIONS DESCRIPTION Selects the display’s aspect ratio. “Auto” will try to match the display’s aspect ratio to Aspect Ratio Auto, 4:3, 16:9 the incoming video signal. Not available with Adaptive Sync enabled.
- Page 17 4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER SETTING OPTIONS DESCRIPTION Volume 0-100 Adjusts the volume of the audio output from the headphone jack. Auto, HDMI-1, HDMI-2, Selects which input the display passes audio to the headphone jack from. “Auto” will...
-
Page 18: Osd Information
4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER SETTING DESCRIPTION HDMI-1 Switches to the device connected to the HDMI-1 port. HDMI-2 Switches to the device connected to the HDMI-2 port. DisplayPort Switches to the device connected to the “DP” DisplayPort port. -
Page 19: Technical Specifications
4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER SETTING DESCRIPTION Source Display the current input source. Resolution Display the current display resolution. Refresh Overlay Display the current refresh rate. AMD FreeSync AMD FreeSync Premium Status. Premium HDR Status. - Page 20 4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER Product Name XENEON 32UHD144-A Part Number CM-9020006 Device RDD0021 USB Hub ID CORSAIR USB 3.0 Hub Panel Size 32" Diagonal Display Surface Non-Glare Pixels per inch Aspect Ratio...
-
Page 21: Supported Display Modes
4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER Input USB-A Output 2x 5Gbps Type-A USB (5V/0.9A *2) 3.5mm Audio Yes, passthrough from video input Power Consumption (On) Power Consumption <0.5W (Sleep) Power <0.3W Consumption (O ) - Page 22 4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER RESOLUTION REFRESH RATE HDMI DP/TYPE-C 60Hz 67Hz 640x480 72Hz 75Hz Dos- 720x400 70hz Mode 56Hz 60Hz 800x600 SVGA 72Hz 75Hz 60Hz 1024x768 70Hz 75Hz 1152x864 XGA+ 75Hz 1280x720...
- Page 23 4/15/24, 12:41 PM CORSAIR XENEON 32UHD144-A 32-INCH GAMING MONITOR Manual | CORSAIR:EXPLORER 144Hz 480P 60Hz 576P 50Hz 50Hz 720P 60Hz 120Hz 60Hz 1080P 120Hz 30Hz 50Hz 2160P 60Hz 120Hz HDMI LEGAL DISCLOSURE The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
