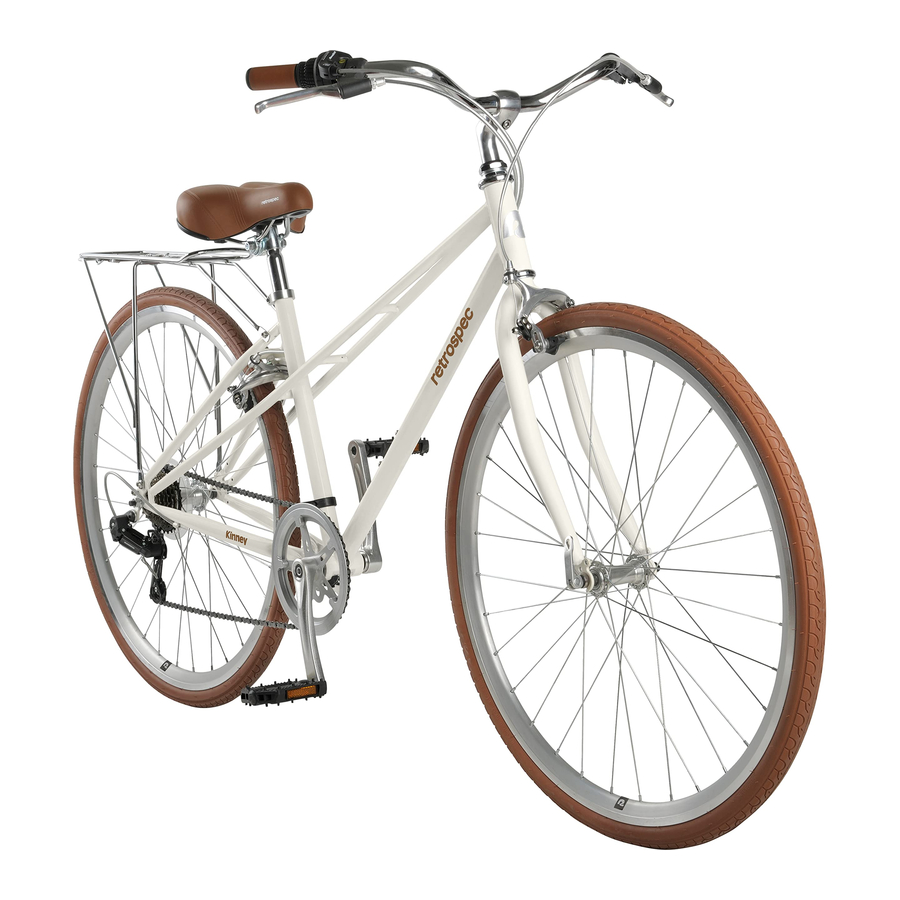

Retrospec Kinney Mixte - City Bike Manual

TOOLS NEEDED

PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE USE & REFERENCE. DO NOT DISCARD.

Serious injuries and even death can occur if the proper safety precautions are not followed.

(Included)

UNPACKING YOUR BIKE

1. Cut the shipping straps on the outside of the box.
2. Remove the box staples to prevent any cuts that can occur while you're unpacking your bike. Lift bike out by frame and rear wheel.
3.
   Rotate the fork (looks like a wishbone) so that it is facing forward of the bike (Fig. 1). Place the bike on the ground, so it's standing upright on the fork dropouts and rear tire.

4. Cut all of the packing zip ties.
5. Separate the front wheel from the bike by carefully slipping it away from the crank arm, which is resting within the spokes.
6. Remove the accessory box and set it aside.
7. Examine your new bike for any visible damage that may have occurred during shipping.
   Special Note: For tightening all fasteners, please refer to Appendix D in the back of your owner's manual for all fastener torque specifications.

SADDLE

1. Remove the plastic shipping plug from the top of the seat tube (Fig. 2).

2. Use the included hex wrench to loosen the seat clamp at the top of the seat tube.
3. RECOMMENDED: Apply a thin layer of grease to the inside of the frame seat tube.
4. The seat post will come attached to the saddle from the factory.
5. Insert the seat with the seat post into the seat tube of the frame to at least the minimum insertion line on the shaft of the seat post.
6. Using the hex wrench, tighten the seat clamp once it is at the correct height. Note: You can make the final adjustment to the height of the seat as needed after the bike is assembled.

Using the bike with the minimum insertion line on the lower portion of the seat post showing above the frame could result in a failure of the seat post and/or the frame causing a loss of control with potential injury to rider. Such failures are not covered by warranty as it is improper use of the product (Fig. 3).

HANDLEBAR/STEM

1. The stem is secured to the handlebar from the factory.
2. Remove the plastic packing cap from the bottom of the stem (Fig. 4). You may have to loosen the stem bolt at the top of the stem to get it out. 1-2 turns recommended.
   RECOMMENDED: Apply a thin layer of grease to the end of the stem shaft by the wedge (Fig. 5).

3. Untwist the handlebar/ stem assembly and control cables, then insert the quill (looks like a sandwich cut diagonally) end of the stem into the fork steer tube (Fig. 5). You may have to loosen the bolt and wedge a small amount to allow the quill to fit into the steer tube.
4. Make sure that the fork is facing forward (Fig. 1) and the handlebars are lined up with the fork dropouts (Fig. 7A).

5. Adjust the height of the stem to your desired level and tighten the stem bolt. You can make final adjustments to the height of the stem after the bike is assembled (Fig. 6).
   NOTE: Be sure that the minimum insertion mark on the shaft of the stem is inside the frame, it must not be visible outside of the frame (Fig. 7).

6. Using a hex key wrench loosen the bolt at the front of the stem handlebar clamp.
7. Lift/ rotate the handlebar to desired position. Make sure the handlebar is centered in the clamp, then tighten the clamp bolt.

HANDLEBAR CENTER DIRECTION

1. Make sure the front fork is facing forward (Fig. 1).
2. You may have to loosen the stem bolt a few turns using the hex wrench (Fig. 6).
3. Align the stem/ handlebars with the centerline of the front wheel/ tire and fork dropouts (Fig. 7A.)

Adjusting or installing the stem with the minimum insertion mark showing outside of the frame could create a dangerous condition allowing the stem to break causing the rider to lose control resulting in serious injuries to the rider (Fig. 7).

PEDALS

Right Pedal:

1. Locate the pedal stamped "R" on the end of the axle (this is the RIGHT pedal) (Fig. 13).

2. RECOMMENDED: Apply a thin layer of grease to the pedal threads before installation. Carefully insert the Right pedal into the Right side crank arm (the side with the chain) and thread it Clockwise (Fig. 14). You should be able to thread the pedal in part of the way by hand with minor resistance.

3. If it seems difficult and binds, stop, remove the pedal, realign the threads and try again. Be sure you are turning the Right pedal axle in a Clockwise direction! Tighten the pedal with a 15mm or adjustable wrench until the pedal is securely attached to the crank arm. The pedals need to be tightened with a considerable amount of force so that they do not come loose.

Left Pedal:

5. Locate the pedal stamped "L" on the end of the axle (this is the LEFT pedal) (Fig. 13).
6. RECOMMENDED: Apply a thin layer of grease to the pedal threads, then insert the Left pedal into the Left side crank arm..

   Thread it counterclockwise and tighten with a 15mm or adjustable wrench following the instructions in step #3 above (Fig. 15)
   NOTE: Be sure to tighten both pedals with an adjustable wrench or 15mm open end wrench to the recommended torque specification otherwise they will unscrew while riding causing an unsafe condition for the rider and damaging the threads in the crank.


BRAKES

1. Be sure that the brake pads are aligned with the curve of the rim and that they contact the rim surface flat and evenly (Fig. 16). The brake shoe angle and height can be adjusted by loosening the Allen bolt attaching the brake shoe to the brake arm. Notice that the brake shoe can articulate a certain amount up and down and side to side.

2. Loosen the brake cable anchor on the brake arm held by an Allen bolt allowing the brake cable to freely glide through its anchor (Fig. 17).

3. Squeeze the brake arms together until the brake shoes contact the rim surface. Be sure that the black release lever at the anchor is in the down position. Pull the cable taut through its anchor and tighten the cable anchor bolt (Fig. 17).
4. Squeeze the brake lever firmly several times to stretch and seat the cable and to make sure it does not slip through the anchor bolt. If the cable tension is too tight to allow the brake shoes to retract and clear the rim surface, loosen the anchor bolt and give the cable some slack. If the cable has too much slack and you cannot apply enough stopping force to the rim, repeat step 2 and take the slack out of the cable.

Be sure that the brake arms are evenly spaced from the wheel and there is some clearance between the brake pads and the rim surface. If the arms are not evenly spaced from the wheel, you can balance the spacing by gripping the brake assembly and rotating until it is centered with the wheel.
NOTE: We highly recommend taking your bike to a local bike shop and having your brakes set-up by a professional mechanic.

GEARS

The gears on your Kinney come adjusted from the factory. If the gears need adjustment, please have this done by a professional bike shop.
NOTE: When Shifting Gears: You must be pedaling with light pedal pressure while shifting to allow the chain to shift from one gear to another. For best results shift one gear at a time. It is recommended to downshift into an easier gear before coming to a complete stop.

REFLECTORS

Front & rear reflectors should be mounted from the factory. However, some adjustment for correct position may be necessary. Using your Philips screwdriver, position the Front reflector horizontally (Fig. 18), and the rear reflector centered (left-to-right) (Fig. 19).

TIRES

Tire manufacturer's recommended inflation pressure is found on the tire sidewall (listed as "PSI").

• Using a hand or floor pump with a gauge, inflate the tire to half its recommended inflation pressure. Check that the tire is properly seated on the rim. Inspect both sides for proper fit.
• If the tire is seated unevenly or bulges out along the rim, let some air out of the tire and reposition the tire by hand so that it sits evenly on the rim.
• Continue to inflate the tire to the manufacturer's recommended pressure.
• Do not exceed the recommended pressure. This can cause an unsafe condition potentially causing the tire to unexpectedly explode.
• Do not use a compressed air device to inflate your tires as the rapid inflation of the tire can cause it to explode.
• Tires and tubes are not warranted against damage caused by over-inflation or punctures from road hazards.

BEFORE YOU FIRST RIDE

We strongly recommend you take your bike to a professional bike shop and have them check your work and fine tune the bike to ensure your bike is safe to ride.

SERIAL NUMBER

It is important that you locate and record the serial number of your bicycle in case of a recall or if the bicycle is stolen. The serial number can be found under the crank bottom bracket stamped into the frame (Fig. 20).
