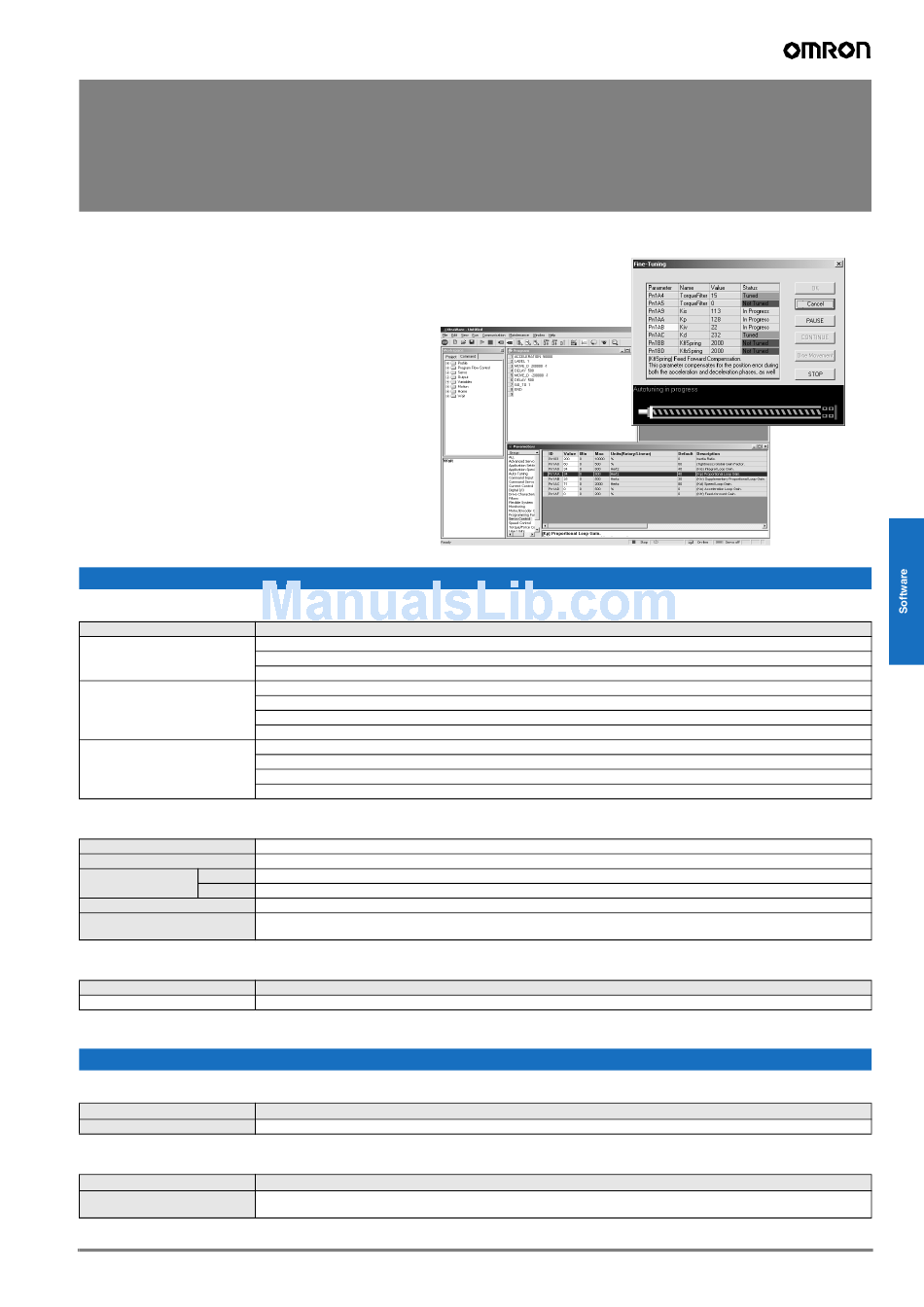

Omron XTRAWARE Datasheet

Programing Software for XtraDrive
XtraWare
Advanced software tool for the setup, optimal
tuning and user programming of the Xtradrive
Servo Drive
• User-friendly software tool that allows complete control
of the system
• Setup Wizard for an easy Drive setup
• Immediate execution of control commands
• Servo AutoTuning
• Alarm Display
• Parameters Setting
• Program Editor and Debugger
• Variables Monitoring
• Chart utility (Digital scope)
• Mechanical Analysis (FFT)

Specifications

Functions

System setting
Data input
Test options/Online operation
Tools
Operating Enviroment
Operating systems
Processor
Hard disk 100 MB free memory space
Memory requirements
RAM
Screen
Peripheral connections

Compatible Units

Motion Controllers

Ordering Information

Software
Description
XtraWare
Cables
Description
Computer Connecting cable
XtraWare
Setting communication parameters
- Editing of general parameters, position data, ramp up/ramp down, speeds etc.
- Program Editor
- Load, save, delete parameter files, etc.
- Transfer and comparison of parameter data
- Variables Monitoring
- Immediate execution of control commands
Servo AutoTuning
- Setup Wizard
- Chart utility (Digital scope)
- Program Editor and Debugger
Mechanical Analysis (FFT)
Windows 95/98/NT/ME/2000/XP
Pentium class at 300 Mhz recommended
64 MB min.
800x600 resolution or higher, minimum 256 colors
CD-ROM Drive
RS232 or RS-422 serial port
Specification
All XtraDrive Servo Drives
Model
MOTION TOOLS CD
Model
R88A-CCW002P2
or JZSP-CMS02
