Page 1

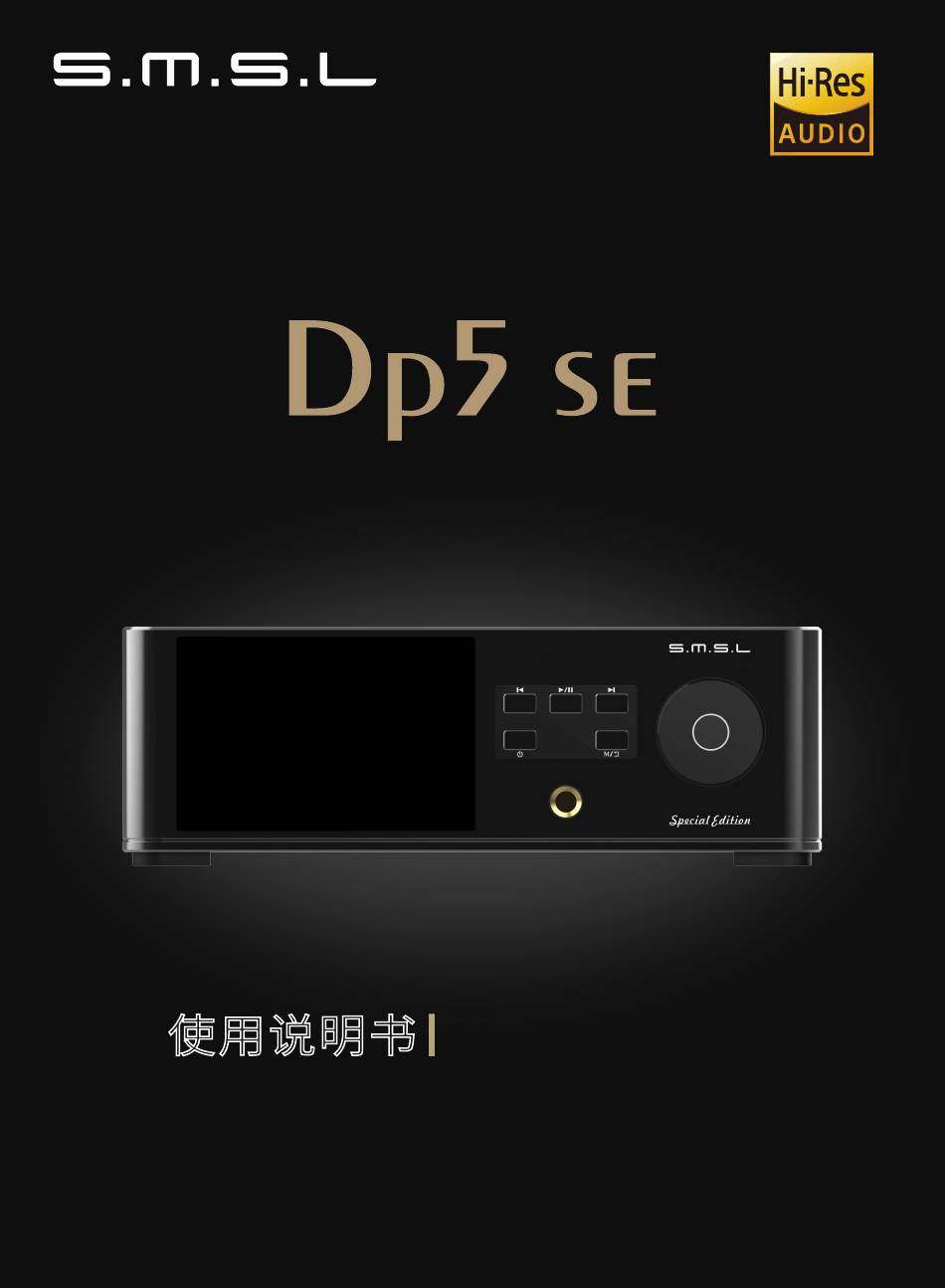

使用说明书 USER MANUAL 本说明书的内容可能会随版本更改, 如有变动, 恕不另行通知 The contents of this manual may be changed with the edition, and are subject to change without notice. http://www.smsl-audio.com/ Ver 1.0...
DP5 SE Safety Notes CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK) The lightning flash with arrowhead symbol,with in an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
Page 25
DP5 SE Feature Supports audio format of DSD , WAV , APE , FLAC , AIFF , MP3 Etc. Fully supports MQA decoding including local playback and USB DAC. Several output op�ons: USB , coaxial , I S , AES/EBU , Single-ended analog, balanced analog, headphone 6.35mm.
Page 27
DP5 SE File system: Support FAT/FAT32/NTFS micro SD Capacity of card: Top support 256G USB drive/Hard disk: Top support 4T USB Maximum output current: 2A(The sum of two USB output currents) USB A maximum output current: 2A USB DAC output:...
Page 28
DP5 SE Sampling rate* Format Support Level Bit width √ Remarks Fast 384K 16-24bit √ √ Normal 384K 16-24bit √ √ APE** High 384K 16-24bit √ Extra high 16-24bit × 176/192K Insane Nonsupport √ 384K 16-32bit √ √ 16-24bit not support √...
Page 29
DP5 SE ON/OFF Play/Pause/Ok Note Next Previous 1. In any interface during music playback, Down long press the func�on key to return to Func�on bu�on the " Playing" interface. Mute 2. In any interface, long press the return Return/exit VOL UP key to return to the home page.
Page 30
DP5 SE Display screen AES/EBU output Power bu�on, long press ON / OFF, Line output short press turn off display. Balance output "Previous" bu�on, short press the previous Power AC input song, long press to rewind. Network interface Play / pause USB 2.0 interface...
Page 31
DP5 SE Connec�ng your equipment Connect headphone and ac�ve speakers. Ac�ve Speaker...
Page 33
Device Connec�on” is displayed, and at the same �me, the digital signal is output from this USB interface, and the other output of the DP5 SE are silent. When unplugged, “Audio Device Disconnect” is displayed, and the original output is restored.
Page 34
Note: Please use a power outlet with a good grounding wire to ensure safety and avoid noise. The power state of DP5 SE has memory Without use the button to shut down, directly unplug the power ord, the next plug will directly boot;...
DP5 SE Display 1.Main interface HiBy Link Playback/pause Current page Bluetooth volume Output mode Playback mode WIFI My Music Playback Now Playing se�ngs My music System setup music sources Network setup 2.Playback interface Sampling rate File format bit width MQA Studio 352.8kHz/24Bit...
Operation: "Multifunction knob":In playlists,long press knob to delete a song. Please pay attention: The maximum number of DP5 SE song scans is 30,000, and it will not be scanned after exceeding. (Note: the "function key" of the remote control is the same as the machine...
DP5 SE Display 4. File browsing interface The contents of the file browsing menu are: File Browser 1.Micro SD card . SD Card 2.LAN. 3.OTG-1. 4.OTG-2. OTG_1 5.USB-DAC. OTG_2 6.DLNA USB DAC 7.AirPlay 8.Bluetooth DLNA AirPlay Opera�on: BLUETOOTH "Mul�func�on knob": long press to Delete files .
Page 38
DP5 SE Display 6.System se�ng The content of the system se�ngs menu: System Setting 1. Update music mode: Auto Shutdown Update Music Mode Manual. Auto. Update Music (Note: This func�on only valid Output Mode HEADPHONE by using micro SD card.) 2.
Page 39
DP5 SE Display 7.B-type USB mode: The B-type USB interface is set to “USB mode”. The unit is connected to the computer through the B-type USB interface to access and modify the micro SD card data of the machine. Please pop up before disconnec�ng.
Page 40
1.Bluetooth 1.1、HiBy Link: The HiBy Link func�on in the mobile device opens the HiBy player and docks with DP5 SE. The mobile device can browse the storage device in the unit and can be used as a Bluetooth remote controller.
Page 41
DP5 SE Display 1.2、High sound quality: Using advanced algorithms, the sound quality of Bluetooth transmission is improved. 1.3、Bluetooth scanning: Scan nearby devices that can connect to Bluetooth, you can choose to connect devices. Select the connected device and press and hold the “Mul�-Func�on Middle Bu�on”...
Page 42
Search for Serve r MUSI C BOX 3. DLNA: DP5 SE connects to the network, the mobile device installs and opens “Bubble UPnP”, plays the song, pull the playback layout to the right, and selects to push to play on “SMSL DP5 SE”.
Page 43
Select “ SMSL DP5 SE” 4.AirPlay: As long as the DP5 SE is connected to the same local area network with your iOS device (iPhone、 iPod、 iTouch、 iPad or iTunes), it will appear in the AirPlay device list. You can simply send the audio stream to DP5 SE by selec�ng it.
Page 44
MQA (Master Quality Authen�cated) is an award-winning Bri�sh technology that delivers the sound of the original master recording. The master MQA file is fully authen�cated and is small enough to stream or download. The DP5 SE includes MQA technology, which enables you to playback MQA audio files and streams, delivering the sound of the original master recording.
fi�ngs instead of the designa�ve or accredited ones. d.Cannot provide credible proof of purchase. e.Products not from S.M.S.L(e.g. counterfeits). 4.Sending it back to our company for repairing. 5.Contact your S.M.S.L Audio reseller for a Return or replacement.
