Leben im Bad
Living bathrooms

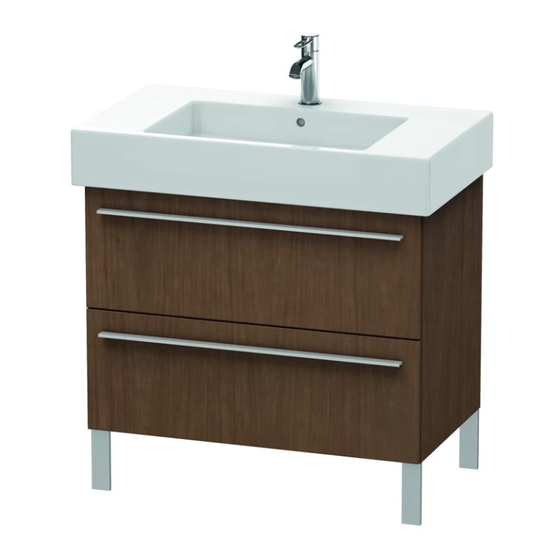

X-Large
Installation instructions
A
A
mm
inch
800
31 1/2"
Instructions for use
The bathroom furniture range complies with the standards and guidelines applicable at the time of delivery and is designed for use in bathrooms.
Though designed for the wet environment, direct contact with water should be avoided, for example, when showering.
We reserve the right to make technical improvments and design modifications to the products illustrated.
MAL_X-Large_XL6543/15.04.1
B
B
mm
inch
576
22 5/8"
3x S8
2x 100
2x 5x50
4x S8
1x 4,5x35
# F23628
4x 5x50
# XL 6543
# 032985
# F30368
# UV 9991
# UV 9992
Advertisement
Related Manuals for DURAVIT X-Large XL 6543
Summary of Contents for DURAVIT X-Large XL 6543

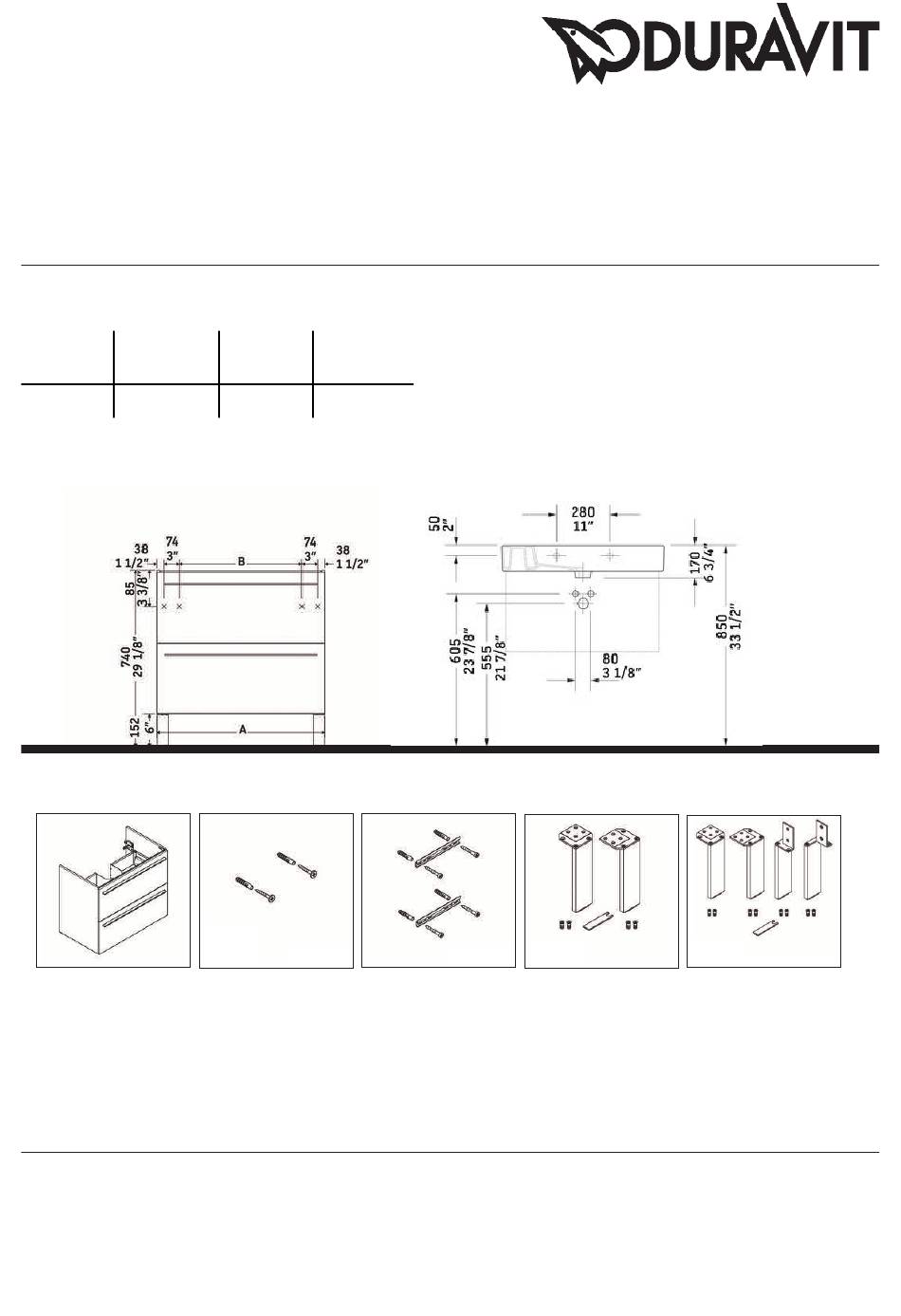

- Page 1 Leben im Bad Living bathrooms X-Large # XL 6543 Installation instructions inch inch 31 1/2” 22 5/8” # 032985 3x S8 2x 100 2x 5x50 4x S8 # F30368 1x 4,5x35 # F23628 # UV 9991 4x 5x50 # UV 9992 Instructions for use The bathroom furniture range complies with the standards and guidelines applicable at the time of delivery and is designed for use in bathrooms.
- Page 2 Confirm that two legs are included, Reference the vanity specification Using a 3/8“ drilling bit, dirll the The plastic anchors provided are Installation of the legs facing to establish the position of anchor holes that have been for concrete wall applications. forward.
- Page 3 Using a screwdriver adjust the Using supplied key, adjust the Check the leveling of vanity for Using a screwdriver, adjust the vanity mounting hinge system legs height. adjustment. vanity mounting hinge system clockwise. counter-clockwise. Screw two set screws until desired Using the appropriate bit for the The plastic anchors provided are For wood stud walls, bolts should...
- Page 4 When mounting the washbasin into Install the vanity drawers. Locate the plate with Duravit logo. Remove plate with Duravit logo. the wood stud wall, there must be adjustment bracing. We recommend doubling 2x6‘s or 2x8‘s between the studs to form a...
- Page 5 Level the vanity drawer by Re-attach plate with Duravit logo. adjusting the two screws. MAL_X-Large_XL6543/15.04.1...
- Page 6 Confirm that two legs are included, Remove two leg screws. Turn leg clockwise and screw two Remove two leg screws. Installation of the legs facing screws in. forward. Turn leg counter-clockwise and Attach front legs to the vanity. Attach back legs to the vanity. Using a screwdriver, adjust the screw two screws in.
- Page 7 Using supplied key, adjust the legs Check the leveling of vanity for Using a screwdriver, adjust the Screw two set screws until desired height. adjustment. vanity mounting hinge system leveling of the vanity has been counter-clockwise. reached. Using the appropriate bit for the The plastic anchors provided are For wood stud walls, bolts should Reference the washbasin...
- Page 8 Insert the provided washer and nut. Hand tighten the nut, so the washbasin is secure. Install the siphon. Install the vanity drawers. Locate the plate with Duravit logo. Remove plate with Duravit logo. Level the vanity drawer by adjusting the two screws. MAL_X-Large_XL6543/15.04.1...
- Page 9 Re-attach plate with Duravit logo. MAL_X-Large_XL6543/15.04.1...
- Page 10 Furniture complies with applicable requirements of the referenced standard(s): Safety Household and Commercial Furnishings (UL 962, 3rd ed. Issued: 07/07/08, Revised: 08/05/13) Portable Luminaires CSA C22.2 No. 12 - 1982 (R2004) IMPORTANT SAFETY INSTRUCTIONS When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using this furnishing.
- Page 11 Duravit NYC Duravit USA, Inc. 105 Madison Avenue 2205 Northmont Pkwy., Ste. 200 New York, NY 10016 Duluth, GA 30096 Toll Free 888-DURAVIT Toll Free 888-DURAVIT Phone 212-686-0033 Phone 770-931-3575 Fax 212-686-8033 Fax 770-931-8454 info@us.duravit.com info@us.duravit.com www.duravit.nyc www.duravit.us...
