DURAVIT XSquare XS 7112 Mounting Instructions

XSquare
Mounting instructions
74
75
150
Instructions for use
The bathroom furniture range complies with the standards and guidelines applicable at the time of delivery and is designed for use in bathrooms.
Direct contact with water should be avoided, for example, when showering.
A power supply of 110 V – 230 V must be available on site.
Distance from the sensor to the reflecting surfaces = > 75 mm.
We reserve the right to make technical improvements and design modifications to the products illustrated.
MAL_XSquare_XS7112/22.04.3
74
B
75
150
A
4x
8x
16x

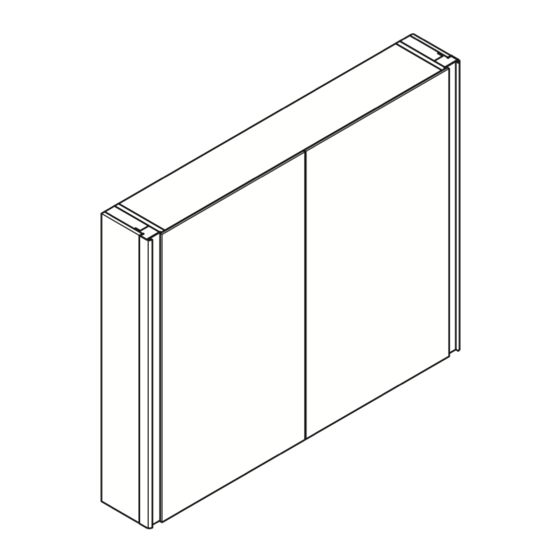

# XS 7112
A B
mm mm
800 502
2x 100
4x 5,5x50
4x S8
