TP-Link VIGI C240I Quick Start Manual

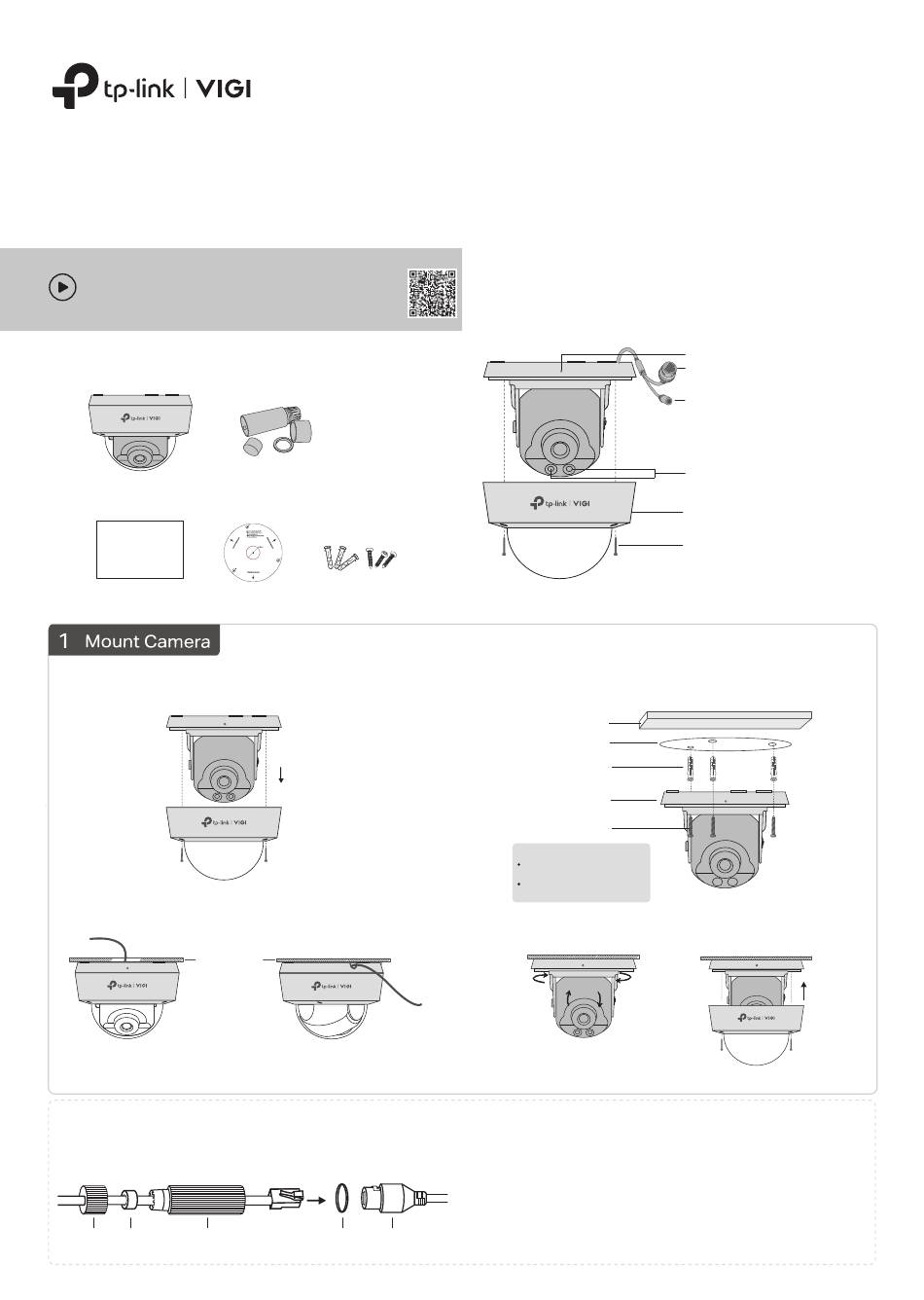

Quick Start Guide

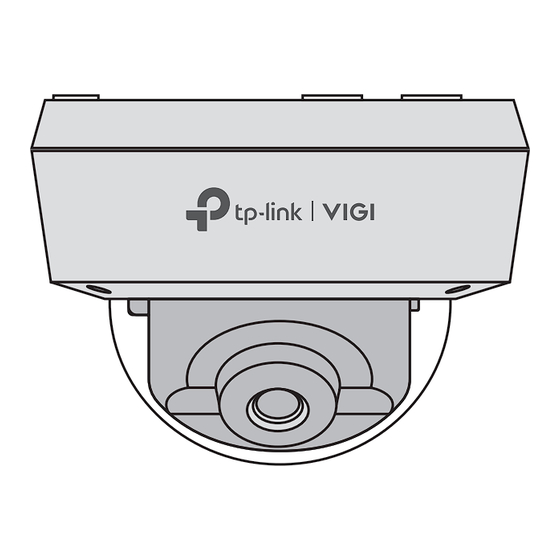

Dome Network Camera
*Images may differ from actual products.
©2024 TP-Link 7106511052 REV1.20.0
Set up with videos:
Scan the QR code or visit
https://www.tp-link.com/support/setup-video/#vigi-network-camera
to search for the setup video of your product.
Package Contents
Network Camera
Quick
Start
Guide
Quick Start Guide
Mounting Template
1. Loosen the screws on the side of the camera to remove
the top cover.
Remove the top cover
2. Decide how to route the cable through the ceiling/wall.
Ceiling or Wall
Route the cable through the
bottom of the camera
Installing Waterproof Cable Attachments
Install the waterproof cable attachments for the network interface when the
camera is installed outdoors.
Note: Make sure each part is securely attached and the waterproof rings are
flush to keep out water.
Fix Nut Waterproof Waterproof
Jacket
Ring
Waterproof Cable
Attachments
Φ6 mm Φ3.5 mm
Anchors & Screws
Knock out the cable hole on the side
and route the cable from the side
Network
O-ring
Interface
Safety First:
• Make sure your power supply matches your camera.
The camera's standard power supply is 12V DC or
PoE (802.3af/at). The power source should comply
with Power Source Class 2 ( PS2) or Limited Power
Source(LPS) of IEC 62368-1.
• Make sure that the wall is strong enough to
withstand 4 times the weight of the camera and
mounting bracket.
• If you are uncertain or uncomfortable performing the
installation, consult a qualified electrician.
Appearance
*Some models do not have the power supply interface. You can check the
detailed specifications on the product page at https://www.tp-link.com/.
3. Stick the mounting template to the desired mounting place,
and mount the camera. Pay attention to the cable direction.
Ceiling or Wall
Mounting Template
Anchor
Camera
Self-tapping Screw
Appropriate drilling size (Φ)
When installing with anchors
Φ = 6 mm (15/64 in.) Anchor
When installing with screws only
Φ = 3 mm (1/8 in.)
4. Rotate the lens base or the dome to adjust the angle of the
lens as desired. Tighten the side screws to secure the cover.
Adjust lens angle
1. Route the network cable through the following components in order: fix
nut, waterproof ring, and then the waterproof jacket.
2. Fix the O-ring to the network interface of the camera and connect the
network cables.
3. Attach the network interface with the waterproof jacket, then twist to
lock.
4. Insert the waterproof ring into the waterproof jacket. Rotate the fix nut
to secure it to the waterproof jacket.
Done! The network interface is now waterproof.
Microphone
RJ45 Ethernet Port
(supports PoE)
Power Supply Interface
(12V DC)*
IR LED
Top Cover
Side Screws
Loosen to remove the top cover.
Mount the camera
Reinstall the top cover
