Summary of Contents for JAVS P306

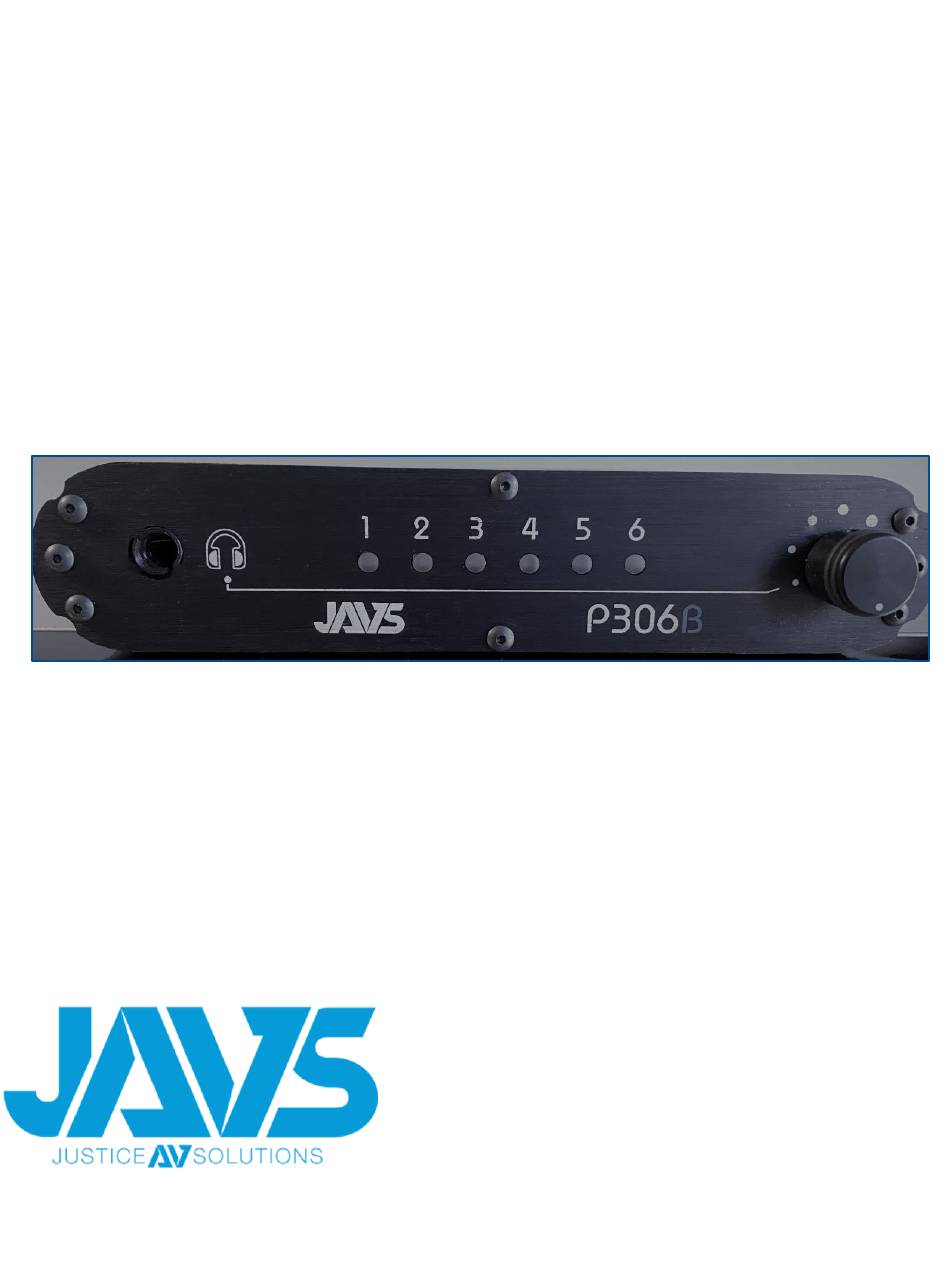

- Page 1 P306 - P306B User Reference & Instruction Manual...
-
Page 2: Table Of Contents
Advanced User Features ................................18 Setting Up PC Audio ..................................19 Accessories ......................................20 Using P306/P306B in a Suite 8 Environment ........................21 Connecting & Configuring the P306/P306B to the Recorder ........................21 Troubleshooting ................................... 24 Contact Us ....................................... 25 Page 2 of 25... -
Page 3: Safety Information
Declaration of Conformity d. Consult the dealer or an experienced Model Number: JAV-P306B radio/TV technician for help. Trade Name: JAVS Responsible Party: Justice A/V Solutions CAUTION Address: 13020 Middletown Industrial Blvd., Louisville, KY., 40223 difi ti... -
Page 4: Operational Safety
OPERATIONAL SAFETY Before installing the P306B and connecting devices to it, carefully read all included documentation. • Before using the product, ensure all cables are correctly connected and the power cable is not damaged. If you • detect any damage, contact your reseller immediately. Avoid dust, humidity, and temperature extremes. -

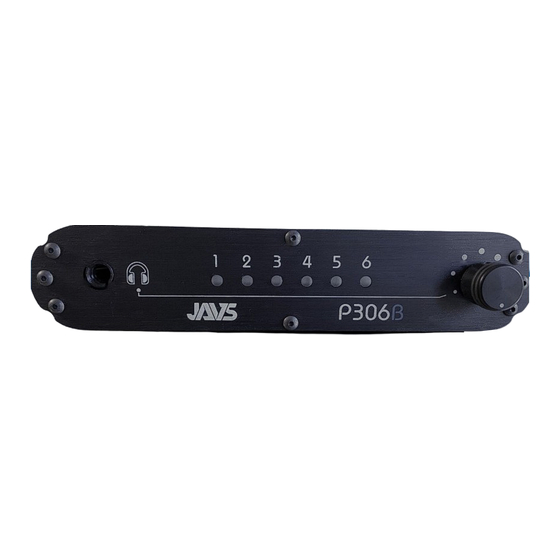

Page 5: Introduction
The P306B has four outputs, each individually configurable to allow a user to specify the mix of input channels for each output connection. Although these devices were originally developed to be used in conjunction with JAVS NoteWise software, they are now supported as USB mixers attached to a Recorder 8 and can be employed in a JAVS Suite 8 environment. -
Page 6: Specifications
SPECIFICATIONS ANALOG AUDIO INPUTS: Microphone Inputs (1-6) Active Balanced Connectors: RJ45 Input Impedance: 15 KΩ Maximum Input Level: 8.24 dBu (2 Vrms) Input CMRR: >70 dB Input Crosstalk: <70 dB Communication: RS422 (EIA-422) Communication Rate: 57600 baud Connector Provides Power: Yes Voltage on Input: 24 VDC +/- 5% Maximum Current on Input: .4 A ANALOG AUDIO OUTPUTS:... -
Page 7: General
GENERAL: Power DC Input: 24 VDC, 1.0 A Power Consumption: 25W Max Weight 2.106 lbs. or 955.27g Dimensions Note: Illustrations in this manual may differ in part from the actual product. • Specifications and the external appearance may be changed without notification to improve the product. •... -
Page 8: About This Manual
ABOUT THIS MANUAL This user guide contains the information needed for installing and configuring the P306/P306B. The first part of the manual will provide a general overview followed by a more detailed approach in the second half of the manual. Clicking on any item in the Table of Contents will take you to that page number of the manual. -
Page 9: Software Installation
2. Next, connect the P306B to the designated computer via the provided USB cable. 3. Double-click the Driver Installer and the JAVS P306B Setup Wizard will open. Click Next. 4. On the next screen (as shown below), accept the default installation folder and click Install. -
Page 10: Step 2: Install The Configuration Tool
STEP 2: INSTALL THE CONFIGURATION TOOL 1. Double-click the icon for the P306 Configuration Tool Setup.exe. 2. Accept the default selection and click Next. 3. On the next screen, select Next to install the Configuration Tool in the default folder. -
Page 11: Step 3: Launch The Program
1. Once the software has been installed an icon will appear on the desktop. 2. Double-click on the icon as shown or navigate to the tool in your computer’s files under Program Files > JAVS > JAVS P306\P306BTool.exe. Page 11 of 25... -
Page 12: Knowing The Software
KNOWING THE SOFTWARE INPUTS The Microphone screen is the default view upon launching the application. This screen allows for gain adjustment for each individual physical input. Each input also has a “VU Meter” indicating audio level. 1. Microphone screen selection button. 2. -
Page 13: Outputs
OUTPUTS The Output screen allows for attenuation adjustment and muting for inputs for each of the four individually configurable outputs. Overall attenuation level for the output can also be adjusted. 1. Output Selection Buttons: Once an output is selected that button will then turn grey. 2. -
Page 14: Application Settings
The Inputs section allows for enabling and disabling of physical inputs as well as input configuration. Disabling an input differs from muting because the input cannot be unmuted. When configured for JAVS Mic, the Microphone Pattern, Button Action, and Record Status can be configured. Any changes must be saved or uploaded to P306B before they take effect. -
Page 15: Outputs
The Outputs section enables configuration of outputs to be mutable and allows USB audio to be routed to the specified output. The Global Mute setting is only used when P306B is being used with JAVS NoteWise. Any changes must be saved/uploaded to P306B before they take effect. -
Page 16: Advanced
The Advanced section allows for changes to P306B that affect overall configuration. All adjustments on this page are global. Any changes must be saved/uploaded to P306B before they take effect. 1. Record LED Color: Selects the color used to indicate recording on JAVS JM-14 Microphones. 2. Brightness: Changes the Record LED brightness on the JAVS JM-14 microphones. -
Page 17: Firmware
FIRMWARE This section allows for the update of P306B firmware as well as display of the current firmware version. UPDATING FIRMWARE 1. Click the Browse button and locate the firmware file (.bin extension). 2. Once file has been loaded, click the Update button. Note: All controls will be disabled, and progress indication will be shown. -
Page 18: Advanced User Features
ADVANCED USER FEATURES Additional settings can be made available by pressing CTRL + M key combination while in the Application Settings screen. 1. Low Pass Filter: A filter that passes signals with a frequency lower than a certain cutoff frequency and attenuates signals with frequencies higher than the cutoff frequency. -
Page 19: Setting Up Pc Audio
SETTING UP PC AUDIO To enable PC audio to be output through the P306, a user must enable and set the P306 as the default playback device for the computer’s sound configuration. To do so, follow the steps below. 1. Select Control Panel from the computer’s Start Menu. -
Page 20: Accessories
Attenuation Adapter can be used to match the audio levels of different devices to ensure compatibility. It offers fixed attenuation of 0, -30, -40, -50 dB. JAVS offers 2 versions of the ATT Pro; JAV-ATTPRO-RJ45 is a RJ45 to 3-pin phoenix connector while JAV-ATTPRO-PHX is a phoenix-to-phoenix connector. -
Page 21: Using P306/P306B In A Suite 8 Environment
USING P306/P306B IN A SUITE 8 ENVIRONMENT The P306 and P306B devices are supported as mixers as of Suite 8 release 8.1.0. The device is connected to the Recorder 8 via any of the available rear USB ports on the Recorder. Since the driver support for the devices is now integrated into the Recorder, you will not need to download the driver for the unit. - Page 22 “Configuration Files” tab. 9. On the tab, you will see the “Mixer Type” parameter. Make sure this shows P306/P306B for the value. If it does not, click the Modify button at the bottom right of the screen and change the Mixer Type to •...
- Page 23 12. Click on the Launch Mixer Control button to verify that your mixer is properly connected and that the microphone level indicators are working. Note: You may need to reboot the P306 and/or the Recorder 8 after making configuration changes to make •...
-
Page 24: Troubleshooting
JM-14 is in Push to Talk mode and is active Blue Flashing JM-14 is programming Green Single Flash JM-14 finished programming Red & Yellow Wave An error has occurred P306/P306B Lights: Color State Meaning Blue Flashing Microphone Indication Blink Blink 3 times for Firmware Validation Error Blink... -
Page 25: Contact Us
CONTACT US Office and Mailing Address: Justice A/V Solutions, 13020 Middletown Industrial Blvd. Louisville, KY., 40223 Sales: 1-800-354-JAVS OR 1-800-354-5287 Support: 1-877-JAVS-HLP OR 1-877-528-7457 Fax: 1-502-244-3311 Website: www.javs.com Page 25 of 25...
