  • Page 1 active hoist SMOVE SMOVE SMOVE touch&move 3.1 touch&move 3.1 user manual user manual SMOVE hoist This user manual applies to the following models Lifting arms Clip attachment Loop attachment Warning! Always read the entire user manual before using the product. The hoist should only be used by qualifi...
  • Page 2 © JOYinCARE 2023 JOYinCARE products are patented. Information about our patents can be provided upon request. We are alert to new developments, therefore technical specifications are subject to change without notice. The latest version of this user manual can always be downloaded from our website. The content of this user manual may not be copied either in whole or in part without our consent.

  • Page 3: Table Of Contents

    Product description SMOVE touch&move ..................9 Use of the SMOVE touch&move ....................13 Inspection & maintenance ......................17 Troubleshooting ..........................19 Contact details JOYinCARE ......................19 Annex A: Technical specifications ......................20 Annex B: Identification labels ........................ 22 User manual SMOVE touch&move 3.1_ENG Version 09-2023...

  • Page 4: Introduction

    In case of any doubts, please contact us; o For an ongoing safe usage of the hoist, it is essential to carry out maintenance on an annual basis. Maintenance on JOYinCARE hoists should only be carried out by suitably qualified personnel.
  • Page 5 A hoist should always be used in combination with a sling. The sling can be attached to the spreader bar of the hoist with either loops or safety clips. This can be a sling from JOYinCARE or another compatible brand. The patient should be closely monitored during the transfer and should never be left unattended in the hoist.
  • Page 6 The hoist is not suitable for use in the shower, large jets of water can cause serious malfunctions. The safe use of slings from JOYinCARE in combination with the hoist has been extensively tested and documented. These slings can be recognised by the JOYinCARE logo on the label of the sling.
  • Page 7 1.8 Liability JOYinCARE assumes no liability for consequential damages in case of malfunctions or breakdowns and is not responsible for unsafe situations, accidents and damages resulting from: o Not following the instructions included in this user manual, the user manual of the sling and the service manual;...

  • Page 8: General Product Description

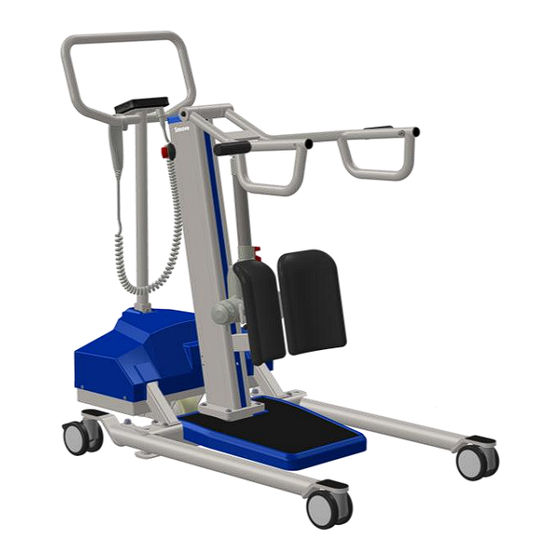

    2. General product description 2.1 General The SMOVE is an active hoist (standing hoist) designed to support patients with reduced mobility in making an active transfer from e.g. the edge of the bed to the (wheel)chair or toilet, or vice versa. Encouraging their own capabilities, the patient reaches a standing position during the transfer.
  • Page 9 2.3 Knee pads and footboard The knee pads are sprung to stay in contact with the patient’s legs, providing extra comfortable support during the lifting procedure. The knee pads can be adjusted to the desired position, please follow the instructions in the service manual of the hoist. The low mounted footboard is fitted with anti-slip material to avoid unwanted sliding.

  • Page 10: Product Description Smove Touch&Move

    3. Product description SMOVE touch&move 3.1 General The SMOVE touch&move consists of the following parts: ⑥ ⑧ ① ⑦ ⑩ ② ⑨ ③ ④ ⑫ ⑤ ⑪ ⑬ Lifting arm Attachment points sling Mast Motor with emergency lowering function Knee pads Emergency button Chassis legs Swivel castor with brake...
  • Page 11 3.2 Points of attention The blue housing of the electronics box should only be removed by suitably qualified personnel. This also applies to changing the touch&move wheel and batteries. Only hold the push handle once the hoist is fully started. It takes a few seconds for the hoist to become operational, do not hold the push handle during the start-up.
  • Page 12 3.4 Activation The On/off button (a) activates all functions of the SMOVE touch&move. Press the button for 2 seconds, then all indication lights on the control panel will light up. Do not hold the control panel or push handle and make sure that the push handle isn’t touched. It takes 5 seconds for the touch&move driving support to become operational.
  • Page 13 The integrated battery of the SMOVE touch&move 3.1 can be charged with the included battery charger. It can be recognised by the JOYinCARE sticker and is fitted with an angled plug. Drive the hoist to the desired location with a socket. Plug the charger into the charging point on the right side of the control panel and connect it to the socket.

  • Page 14: Use Of The Smove Touch&Move

    The functionality of a safety clip may vary from one supplier to another. Read the user manual of the respective sling for the instructions. The Careclip of JOYinCARE works as follows: Attachment of the Careclip: Make sure there is no tension on the clip.
  • Page 15 Compatibility: The lifting arm is fitted with universal attachment points suitable for active slings with safety clips. When combined with third-party slings, it is strongly recommended to always use slings with safety clips. The axis of the stud has a diameter of 7 mm and a length of 6 mm, the head of the stud has a diameter of 12 mm.
  • Page 16 Place the hoist nearby and explain to the patient what is going to happen; Check that the bed/(wheel)chair is on the brake; Apply the sling while the patient is sitting stably on the edge of the bed or apply the sling in the wheelchair.
  • Page 17 4.6 Sitting down When lifting to the wheelchair, remove the wheelchair footrests or swing them away. Always put the wheelchair or bed on the brake before lifting the patient. 1) Drive the SMOVE up to the wheelchair, bed or toilet; 2) If necessary, spread the chassis legs.

  • Page 18: Inspection & Maintenance

    5. Inspection & maintenance 5.1 Daily inspection Before each use of the hoist and slings, attention should be paid to the following points. Check that hoist and sling are clean Check that the batteries are sufficiently charged Check that the castors of the hoist are clean and turn smoothly Check that all parts are properly secured and undamaged Check that all movements of the lift operate normally (up/down, opening/closing chassis legs)
  • Page 19 All parts of the hoist should be recycled in accordance with the rules of the country where the hoist is used. At the end of its lifetime, the hoist can be returned to the distributor for recycling. JOYinCARE or the distributor will ensure that these parts are processed in an environmentally friendly manner.

  • Page 20: Troubleshooting

    3. The hoist does not charge Check that the charging connector and plug are properly connected to both the hoist and the socket. Check that the accompanying charger is used, which can be recognised by the JOYinCARE sticker. 4. A beeping signal sounds Check whether the emergency button is activated.

  • Page 21: Annex A: Technical Specifications
