Proceq GPR

Ground Penetrating Radar

User Manual

Table of Contents

Need help?

Do you have a question about the GP8000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Proceq GP8000

Page 1 Proceq GPR Ground Penetrating Radar User Manual...
Page 2 Document Information Document Revision: Revision Date: June 01, 2024 Document State: Released Company: Proceq SA Ringstrasse 2 CH-8603 Schwerzenbach Switzerland Classification: Technical Manual Revision History Date Author, Comments June 01, 2024 HELG 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 4: Table Of Contents
Switch on/off ........................ 12 4.2.2 Start/Stop measurement ....................13 4.2.3 Set marker ........................14 Laser functions (GP8000 & GP8100) ................15 Flexible wheel mounting (GP8800) ................... 15 Multiline (GP8100) ......................16 Software overview ....................... 17 Line scan ........................... 17 Cross polarized line scan (GP8800) .................. 19 Superline scan (GP8100) ....................
Page 5 Reserved Rights The content of this document is intellectual property of Proceq SA and prohibited to be copied neither in a photomechanical or electronic way, nor in excerpts, saved and/or be passed on to other persons and institutions.
Page 6 7 days. However, the period could vary depending on the courier. Hence, it is recommended to check the exact time limit when receiving the goods. If there are any damages also inform your authorized Proceq agent or Proceq SA immediately. Shipment Should the device be transported again, it must be packaged properly.
Page 7: Introduction

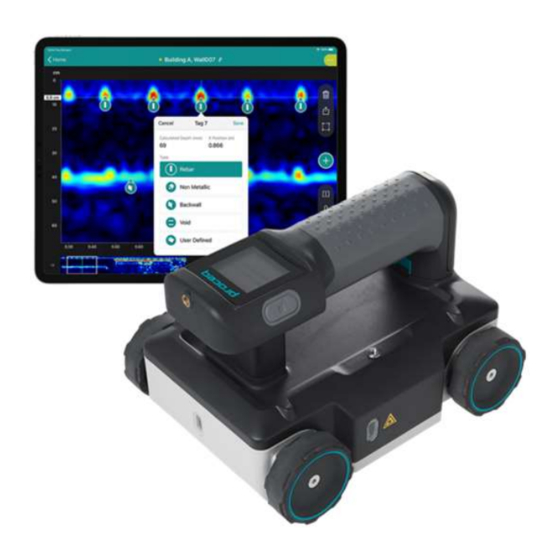

 Figure 1: Proceq GPR System 1.1 Scope of this document This document is the user manual for all products of the Proceq GPR Product family. Therefore, some pictures or functional descriptions may differ from your model. 1.2 Product versions To be able to use the functionality of the GP app, a software license is required.
Page 8 SEGY SEGY Data Synchronization Screening Eagle Screening Eagle Screening Eagle Workspace Workspace Workspace Screening Eagle Inspect Screening Eagle Inspect Screening Eagle Inspect Integration integration integration For dielectric constant concrete (permittivity) = 7 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 9: Product Applications
1.3 Product applications Each sensor is suitable for different applications & conditions as described in Figure 2 Figure 2: Proceq GPR applications 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 10: Scope Of Delivery
2 Scope of Delivery Please refer to the Quick Start Guide provided in the standard delivery and available in download section of the product webpage: SET-GP8X00-QSG-200x140-240408-digital.pdf (screeningeagle.com) 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 11: Measurement Principle
GPR is the acronym for Ground Penetrating Radar, also known as Georadar, Ground Penetration Radar, or Ground Probing Radar. Proceq GPR is a compact device that scans the subsurface in a non-destructive way. It can penetrate the surface, based on concrete conditions and antenna characteristics.
Page 12: Sensor Overview
4.1 Getting Started Please refer to the Quick Start Guide (included in standard delivery) for first steps with your GP8000, GP8800 or GP8100. The Quick Start Guide is also available in the download section of the product webpage: SET-GP8X00-QSG-200x140-240408-digital.pdf (screeningeagle.com) 4.2 Buttons’...
Page 13: Start/Stop Measurement
There are two ways to start/stop measurements: Start/stop: short press one of the two buttons on the handle (see Figure 7). Figure 7: GP8000 & GP8100 Action buttons on each side Start/stop: short press touchscreen following Figure 8 Figure 8 : GP8000 & GP8100 Touchscreen functions 3.
Page 14: Set Marker
GP iOS app. For more information, please watch tutorial videos available in GP app or YouTube (Screening Eagle Technologies channel). For GP8000 & GP8100 By default, “backward marking mode” is activated: IF device position is at front line, short press one button on side or touchscreen THEN...
Page 15: Laser Functions (Gp8000 & Gp8100)
IF device is at any position and user double-pushes one button on side THEN STOP 4.3 Laser functions (GP8000 & GP8100) The GP8000 & GP8100 are equipped with a laser to indicate the scan direction & the measurement center point.
Page 16: Multiline (Gp8100)
Superline scan (see section 5.3). It is equipped with a LED to facilitate data visualization on the iPad display when the user wishes to focus on one line scan view. Figure 12: GP8100 array - 6 lines scan 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 17: Software Overview
When the antenna moves, multiple A-scans are collected along the scan to produce a B-scan radargram view. The colorful migrated view is a more intuitive way view to identify objects; it is produced from a processing radargram. Figure 13 : A-scan, B-scan & migrated views principles 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 18 & migrated view in the center and drop-down menu on the right. Figure 14: GP app software line scan raw data view Single finger swipe left-right to display or not the A-scan Figure 15 : GP app software line scan migrated view 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 19: Cross Polarized Line Scan (Gp8800)
(90° rotation as per Figure 17) and the encoder wheel mounting (see Figure 11). The cross-polarized line scan may unveil the presence of deeper/hidden objects. Figure 17: GP8800 Cross polarization setting 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 20: Superline Scan (Gp8100)
An area scan, also called C-scan, can be generated from the combination of different line scans in each direction (X & Y) as described in Figure 19. Figure 19: Area scan, 3D view & time slice view principle 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 21: Time Slice View
GP app software produces a 3D view improving the level of comprehension for locating targets. The user can adjust the color for each depth intervals differentiating objects by moving the left slider. Figure 21: GP app software 3D view 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 22: Augmented Reality (Ar)
The Tag menu on the right enables the user to tag identified targets such as rebar, live wire, void, backwall or defined objects (like post-tension ducts). GP8000 & GP8100 provide live wire detection (on top of the screen) based on signal strength color intensity that can be adjusted in image processing settings.
Page 23: Image Processing
“Auto-Gain” which automatically adjusts the gain and amplifies the signal to improve the image quality. However, it is possible to adjust manually the gain with “Linear Gain” & “Time Gain Compensation” settings. 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 24: Noise Cancellation
Figure 26: Noise affecting GPR object detection GP app software provides in image processing dropdown menu: the “Noise Cancellation” setting which, when activated, noise cancellation removes noise and improves data clarity (Figure 27). 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 25: Background Removal
GP app software provides in image processing dropdown menu: the “Background Removal” setting which, when activated, removes the background, and makes shallow objects easier to see such as rebar as shown in Figure 29. 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 26: Dielectric Constant
When concrete is wet ( 9), GPR waves are heavily attenuated by the presence of water resulting in less prominent signals/hyperbolas. ε) The standard concrete usually has a dielectric ( between 6.5 and 7.5. 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 27 (B-scan) as shown in Figure 32. Make sure the yellow hyperbola precisely covers-up the object’s hyperbola. Try with different clean hyperbolas to confirm the concrete dielectric estimation. 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 28 Cover meter technology (eddy-current) is not influenced by the concrete dielectric. ε) Figure 33: GP app software tag object set depth for calibration of concrete dielectric ( 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 29: Adjustable Time Window (Gp8000)
Figure 34: Time window principle GP app software (only with GP8000) provides in the image processing dropdown menu: the “depth/time window” setting. By adjusting the time window from 10 ns (shallow) to 24 ns (deep), the user can either focus on shallow objects or extend the depth to the maximum (150cm / 60in penetration depth for standard concrete).
Page 30: Display & Preferences
A-scan with negative amplitude A-scan with positive amplitude Color display From Concrete to Metal or water From Concrete to Plastic or air setting Black-white (by default) white-BLACK-white hyperbola black-WHITE-black hyperbola White-black black-WHITE-black hyperbola white-BLACK-white hyperbola 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 31: Marking Preference
(see Figure 38): Sensor serial-number Software licence owner Geolocation Measurement setting changes The user can also add the following information: Pictures of the site Relevant snap shot Text & voice notes 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 32: Data Storage, Reading, Sharing & Reporting
The tabs provide all the screenshot views & logbook information. Sharing from workspace is possible with different formats such as SEGY or JPG. Figure 39: Screening Eagle Workspace 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 33: Applications
The raw data and migrated views can locate and verify the irregular depth of top rebar and the position of different construction joints. Figure 40: GP app software migrated view concrete floor with joints application 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 34: Concrete Slab With Post-Tensioned Beam
Measurement Mode: Line scan with tags, perpendicular to beams The raw data view shows top rebar and the PT beam bearing the slab. Figure 42: GP app software raw data view concrete slab with PT beam application 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 35: Hollow Core Concrete Slab
Corroded rebar dissipates GPR waves and returns less energy than healthy steel rebar. Proceq GPR helps to find out the potential presence of corroded rebar, however it is strongly recommended to use other tools & sensors such as GPR Insights post processing software or half-cell potential technology (Profometer PM8500) to strengthen the analysis.
Page 36: Post-Tensioned Concrete Slab
The time slice view reveals at a certain depth all the PT duct layout and few rebar. The B-scan and superline scan in split view confirm the presence of the PT ducts underneath the rebar. 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 38: Technical Specification
± 5 mm / 0.2 in (upon direct dielectric calibration!) Distance accuracy <2% error on distance Distance accuracy GP8000 or GP8100: 4 cm / 1.6 in between objects (like GP8800: 3cm / 1.2 in rebars) Note: for objects' depth at 5 cm / 2 in 3.
Page 39 The English version of the content remains the official version. All translated content should bear an appropriate notice to this effect. For safety and liability information, please download at www.screeningeagle.com/safety-and-liability Subject to change. Copyright © 2023 by Proceq SA, Schwerzenbach. All rights reserved. 3. June 2024 © Copyright 2024, PROCEQ SA...
Page 40 OUTH MERICA HQ - S WITZERLAND Proceq SAO Equipamentos de Mediçao Ltda. Ringstrasse 2 Rua Paes Leme 136 CH-8603 Schwerzenbach Pinheiros, Switzerland Sao Paulo SP 05424-010 Brasil +41 43 355 38 00 T +55 11 3083 3889 UROPE IDDLE Screening Eagle UK Limited...
