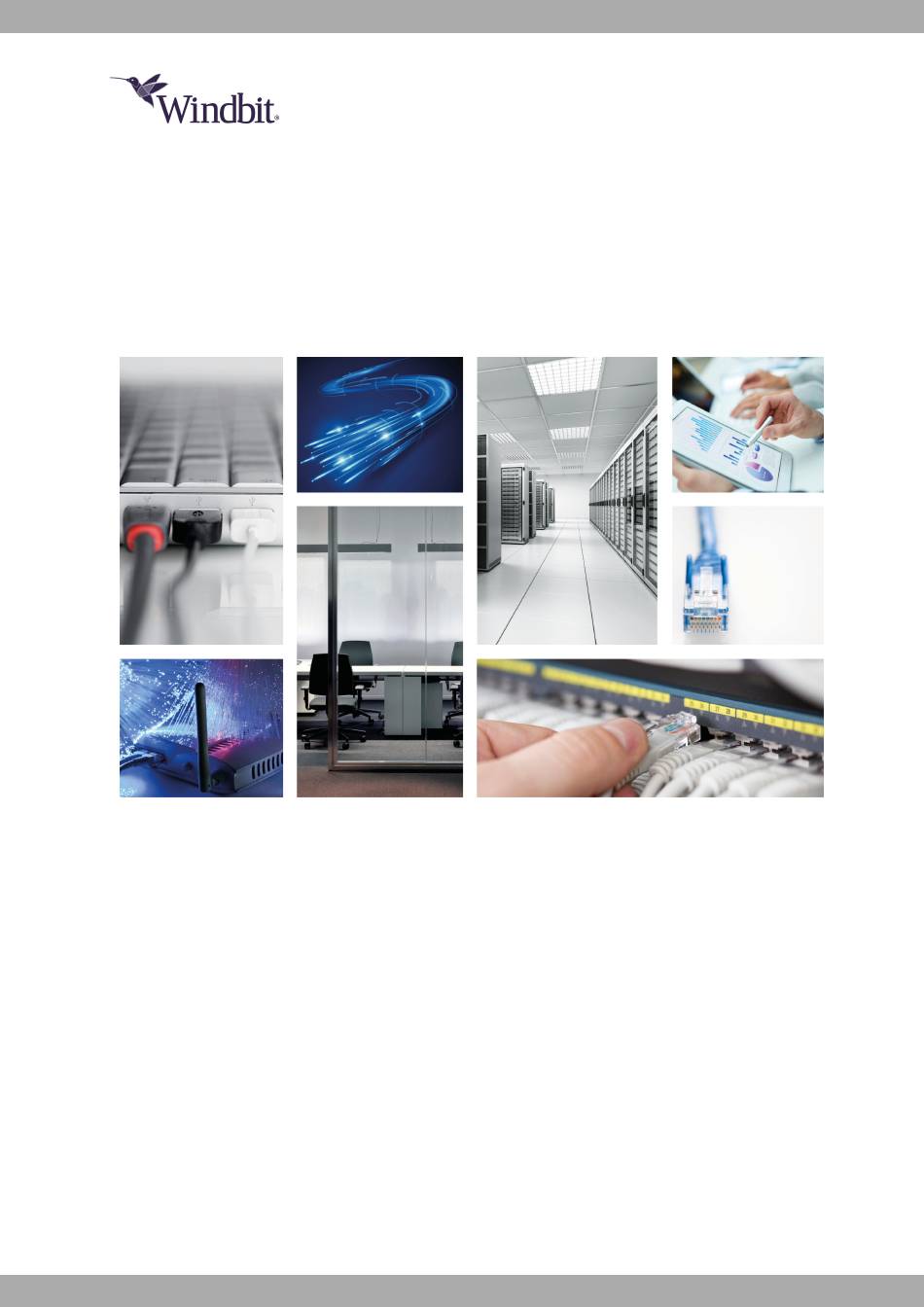

- Page 1 Manual Windbit Celer Router Installation Manual Copyright© Windbit Dm1078-I Version 1.0 04/2024 Windbit Celer Router...
- Page 2 This publication is subject to change. Windbit offers no warranty whatsoever for information contained in this manual. Windbit is not liable for any direct, indirect, collateral, consequential or any other damage connected to the delivery, supply or use of this manual.
-
Page 3: Table Of Contents
Chapter 2 Celer Router ........4 Models . - Page 4 GPIO as digital output specification ......A.4.9 GPIO as digital input specification......Celer Router...
- Page 5 Bluetooth specifications ....... . GNSS specifications ....... . . Celer Router...
-
Page 6: I Related Documents
Related Documents Windbit I Related Documents Celer Router... -
Page 7: About This Guide
1 About This Guide Windbit Chapter 1 About This Guide This is the installation guide for the Celer Router and contains information on how to correctly install the device in a working environment. 1.1 Supported Devices The information included in this installation guide specifically pertains to the Celer Router. - Page 8 1 About This Guide Windbit Web: https://www.windbit.com Tel.: +34 918 076 565 Fax: +34 918 076 566 Email: support@windbit.com Celer Router...
-
Page 9: Celer Router
5 2.3 Hardware Monitoring The Celer Router features a LED panel for hardware monitoring purposes. These LEDs offer visual cues about the device's operational status and indicate connectivity, data flow, and other relevant information. For additional details about the LED panel, please refer to Components on page 5. -
Page 10: Components And Power Supply
3 Components and Power Supply Windbit Chapter 3 Components and Power Supply The following chapter provides comprehensive information about the chassis and components of the Celer Router, including details about: • Front and rear panel components. • Assembly procedures. • Power supply. - Page 11 Orange -> Heater is on. Off -> Device powered off. GNSS Green Off -> No GNSS lock. Blinking -> Obtaining lock. Steady -> GNSS locked. Bluetooth Blue Blinking: • Rapid blinking. Pairing. • Slow blinking. Data activity. • Steady. Paired. Celer Router...
-
Page 12: Rear Panel
Moving on to the rear panel, as illustrated in the following figure, the Celer SIM card slots can be found here. Rear Panel Fig. 10: The table below provides detailed information and descriptions for each connector: Rear panel elements Item Description Celer Router... - Page 13 Reset button. To understand how the reset button works, please see RESET Button on page 14 for further information. Ground Protection Screw. To obtain more details about Power Connection, please consult Electrical spe- cifications on page 39. Celer Router...
-
Page 14: Mounting Options
It is recommended that the device be handled and installed by qualified service personnel to avoid any potential damage or malfunction. 3.2.1 Assembly: Recommendations The Celer router features four holes in the lateral wings of the housing, allowing it to be easily mounted on either a wall or ceiling. Wall-/Ceiling mounting To install the device on a wall or ceiling, securely screw the Celer router into place using four screws. -
Page 15: Power Source
During the installation or replacement of the unit, always establish the ground connection first and discon- nect it last. Fig. 13: Rear view, Protective Earth connection Celer Router... -
Page 16: Connecting The Power Cable In Vehicle Installation
3.3.2 Connecting the power cable in vehicle installation When connecting electrical accessories, it is crucial to adhere to the vehicle manufacturer's recommendations. In the case of the device's power supply cable, it must be accurately connected to the vehicle's fuse box for proper func- tioning. Celer Router... - Page 17 The power supply cable should run from the fuse panel to the router, following the vehicle wall. Importantly, the cable should ALWAYS be routed inside the vehicle cabin, avoiding crossing the vehicle’s firewall protection. Celer Router...
-
Page 18: Connecting The Power Cable In Fixed Installation
• Pin 1 (Ground)—Use the black wire in the DC cable to connect Pin 2 to ground. • Pin 2 (Power) —Use the red wire in the DC cable to connect Pin 1 to the power source. • Pin 3 (Ignition Sense)—Connected to power. Celer Router... -
Page 19: Connecting The Power Cable In Fixed Installation With I/O Input
3.4 RESET Button The reset button is concealed beneath the cover lid of the SIM cards. Remove the SIM card cover lid to gain access to the reset button. The RESET button serves various functions, which are explained below. Celer Router... -
Page 20: Rebooting The Device
It's worth noting that some devices may have customized settings, which means the default configura- tion may differ from the example provided above. 3.5 Connecting Data The Celer Router offers several data connections. 3.5.1 LAN connection The Celer features two Gigabit Ethernet 10/100/1000/2500 BaseT ports with automatic MDI/MDIX. -
Page 21: Connecting The Wwan Antennas
Note It is crucial to install these antennas in the Celer router in order to enhance the signal quality received and transmitted by the cellular module. Some cellular telephony technologies utilize antenna diversity to enhance signal quality. The Celer router family in- cludes several WWAN connectors to facilitate this technique. -
Page 22: Connecting Wlan Antennas
To meet RF exposure limits, only antennas with a gain equal to or less than 5dBi for 2.4GHz, 7dBi for 5.15~5.35GHz and 5.47~5725GHz, and 10dBi for 5.725~5.85GHz can be used with this transmitter. 3.5.4 Connecting the GNSS antenna The Celer LTE model comes with an SMA connector that allows for connection to an active GNSS antenna. Celer Router... -
Page 23: Connecting The Bt Antenna
Digital Input or one Digital Output. See the image below for the exact location of the I/O pin. I/O signal Fig. 23: The table provided displays the I/O signal along with its corresponding pin assignment. Signal Molex Micro-fit Celer Router... -
Page 24: Installing The Sim Card
The Celer Router features a Wireless WAN interface that requires one or two SIM cards for operation. On the front panel of the Celer Router, you will find two protected SIM trays, as shown in the following figure. The SIM card size is 4FF nano SIM form factor. - Page 25 Prior to inserting the SIM cards, always disconnect the device from the main power supply. Additionally, make sure to disconnect the device before removing the protective casing to access the trays. When inserting the SIM cards, please take precautions to guard against electrostatic discharges (ESD). Do not touch the SIM card connectors. Celer Router...
-
Page 26: Compliance
Parque Tecnológico de Madrid, 28760 Tres Cantos, Madrid, Spain International Phone +34 91 807 65 65 4.2 Risk Identification WARNING: This signal word is used to indicate a potentially hazardous situation that could result in serious injuries or death if not avoided. Celer Router... -
Page 27: Safety Warnings
4 Compliance Windbit 4.3 Safety Warnings Celer Router... - Page 28 4 Compliance Windbit Celer Router...
-
Page 29: Weee Information
This product complies with the European REACH Regulation (EC) No 1907/2006. The Candidate List of sub- stancesof very high concern for Authorization is published by ECHA and periodically updated. The manufacturer ac- countsfor substances found in a concentration over 0,1% in weight. A declaration is provided to customers upon re- quest. Celer Router... -
Page 30: Eu Declaration Of Conformity
Please be aware that these re- quirements can change over time. Windbit strongly recommends consulting local authorities to stay up to date with the current national regulations. -
Page 31: Fcc Marking
4.10 Operating Frequency To determine the operating frequencies of the device, refer to Radio Information on page 41. Warning: Please note that operating within the 5150 to 5350 MHz frequency range is restricted to indoor use only. Celer Router... -
Page 32: Appendix A Technical Information
IP address of your computer is configured to match the subnet of the router. A.2 Maintenance The Celer Router is designed to be highly reliable and long-lasting, thanks to its lack of moving parts. This design eliminates the need for any maintenance. -
Page 33: Software Updates
+ V DC + V DC A.3.2 LAN connectors The Celer router has two Ethernet interfaces, which can be used to connect individual PCs or other Ethernet switches. The connection is made using an RJ45 female connector. Here is the pin assignment for the connection:... -
Page 34: Wwan Antenna Connector
Technical Information Windbit A.3.3 WWAN antenna connector The Celer router is equipped with up to four SMA female connectors. Internal RF in/out External A.3.4 WLAN antenna connector The Celer has two SMA-RP connectors installed. Internal RF in/out External A.3.5 GNSS connector The GNSS connector installed on the router is a SMA female connector. -
Page 35: Hardware Architecture
A.4.1 Hardware architecture Processor Qualcomm Arm Cortex A53 based four core processor. Memory DDR4 (1 GByte). Storage unit eMMC Memory (4 GBytes). A.4.2 LAN interface Protocols Ethernet (802.3). Ports Port with MDI/MDX autodetection. Speed 10/100/1000/2500 Mbps (BaseT). Connector RJ45, female. Celer Router... -
Page 36: Wireless Wan Interface (Celer-Lte1 Celer-Lte2)
• B41 + B41 • WCDMA: • 3GPP Release 9 • B2, B4, B5 Speed (DL/UL) The data rates mentioned are theoretical and may vary depending on network conditions. EM06-E, EM06-A • LTE Cat 6. • FDD: 300Mbps/50Mbps • TDD: 222Mbps/26Mbps Celer Router... - Page 37 B4/LTE B4, B66 -0.2 dBi for WCDMA B5/ LTE B5 1.8 dBi for LTE B7 0.9 dBi for LTE B12 0 dBi for LTE B13, B26 -0.1 dBi for LTE B30 Note The antenna connector is SMA type. Celer Router...
-
Page 38: Wireless Wan Interface (Celer 5G)
• B1, B2, B4, B5, B8, B19 Speed (DL/UL) The data rates mentioned are theoretical and may vary depending on network conditions. RM520N-GL: • 5G-NR • NSA: DL 3.3 Gbps; UL 600 Mbps • SA: DL 2.4 Gbps; UL 900 Mbps Celer Router... - Page 39 Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Cellular Antenna List for TLDPH01P1 Celer Router...
- Page 40 B14, B26, B71/ 5GNR n5, n12, n13, n14, n26, -2.70 dBi for LTE B7, B38/5GNR n7, n38 -5.7 dBi for LTE B30/ 5GNR n30 -5.81 dBi for LTE B43, B48/ 5GNR n48 Note The antenna connector is SMA type. Celer Router...
-
Page 41: Wireless Lan Interface
802.11ac: up to 400 Mbps (40 MHz channel). 802.11ac: up to 866.7 Mbps (80 MHz channel) 802.11ax: 2.4GHz up to 458 Mbps, 5 GHz up to 1.2 Gbps. Output power limitation Adjustable Output Power @2.4GHz: Max. 19.98 dBm @5GHz: Max. 29.41 dBm Celer Router... - Page 42 Peak Gain MASTER WAVE 98614PRSX000 Dipole Antenna 2.44 dBi for 2400 MHz TECHNOLOGY CO., 4.10 dBi for 5150~5250 LTD. 4.10 dBi for 5250~5350 4.41 dBi for 5470~5725 4.73 dBi for 5725~5850 Note The antenna connector is Reverse SMA type. Celer Router...
-
Page 43: Gnss Interface
Bluetooth 5.2 Band 2.4 GHz Connector SMA-RP. Bluetooth Antenna List Antenna List Manufacturer Part No. Antenna Type Peak Gain MASTER WAVE 98143MRSX000 Dipole Antenna 5.17 dBi for Bluetooth TECHNOLOGY CO., LTD. Note The antenna connector is Reverse SMA type. Celer Router... -
Page 44: Gpio As Digital Output Specification
Zero Volts or Ground For safe operation, the Celer Router devices have a protective earth connection. The earth lead should have a min- imum cross-section of 2.5 mm and the distance between the device and the earth connection should be as short as possible. -
Page 45: Mechanical Specifications
Storage temperature min. -40 °C max. +85 °C. Relative atmospheric humidity 95 %. max. Altitude class 1400 meters max. Pollution degree conformance Shock and Vibration Category 1 Class B of EN 61373 “Categories & Classes”: Rapid temperature variation class Celer Router... -
Page 46: Radio Information
Rx: 869–894 MHz Band 7 Tx: 2500–2570 MHz +26.33 dBm Rx: 2620–2690 MHz Band 66 Tx: 1710–1780 MHz +23 dBm ± 2 dB Rx: 2110–2200 MHz Technology: UMTS(WCDMA)/ HSDPA/ HSUPA/ HSPA+/ DC-HSPA+. EM06-E specifications. Bands Frequencies Conducted Transmit Power Celer Router... -
Page 47: Regulatory Model "Tldph02P1" Compliance Notice
Conducted Transmit Power Band n1 Tx: 1920-1980 MHz +26.53 dBm Rx: 2110-2170 MHz Band n3 Tx: 1710–1785 MHz +25.23 dBm Rx: 1805–1880 MHz Band n7 Tx: 2500–2570 MHz +26.33 dBm Rx: 2620–2690 MHz Band n20 Tx: 832–862 MHz +24.33 dBm Celer Router... -
Page 48: Regulatory Model "Tldph01P1" Compliance
To ensure compliance, the firmware of the device is programmed at the factory to align with the intended destination. It is worth noting that the firmware setting cannot be accessed or altered by end users. The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range. Celer Router... -
Page 49: Bluetooth Specifications
• 5260-5320 MHz: 22.97 dBm • 5500-5700 MHz: 29.41 dBm B.4 Bluetooth specifications Technology: Bluetooth 5.2. • 2402-2480 MHz: 9.98 dBm Tx Power B.5 GNSS specifications Technology: GPS, GLONASS, BDS, Galileo, QZSS • L1: 1559-1610 MHz Bands • L5: 1176.45MHz Celer Router...
