ABSCO SHEDS ADPATIO3030 Manual

Signature patio
Hide thumbs

Advertisement

Quick Links

Download this manual
AU: 1800 029 701
N Z: 0800 466 444
For construction in non-cyclonic areas
Wind rating: N3 as per AS4055-2021.
If you require a higher wind rating please contact
us: admin@absco.com.au or 1800 029 701
NOTE 1 - A good building knowledge is required
to complete this structure.
If you are not capable it is recommended you hire
a professional.
NOTE 2 - The existing structure should be
checked for its capacity to support and tie down
this structure prior to construction by a suitably
qualified engineer.
Absco Industries
Assembly Instruction Manual

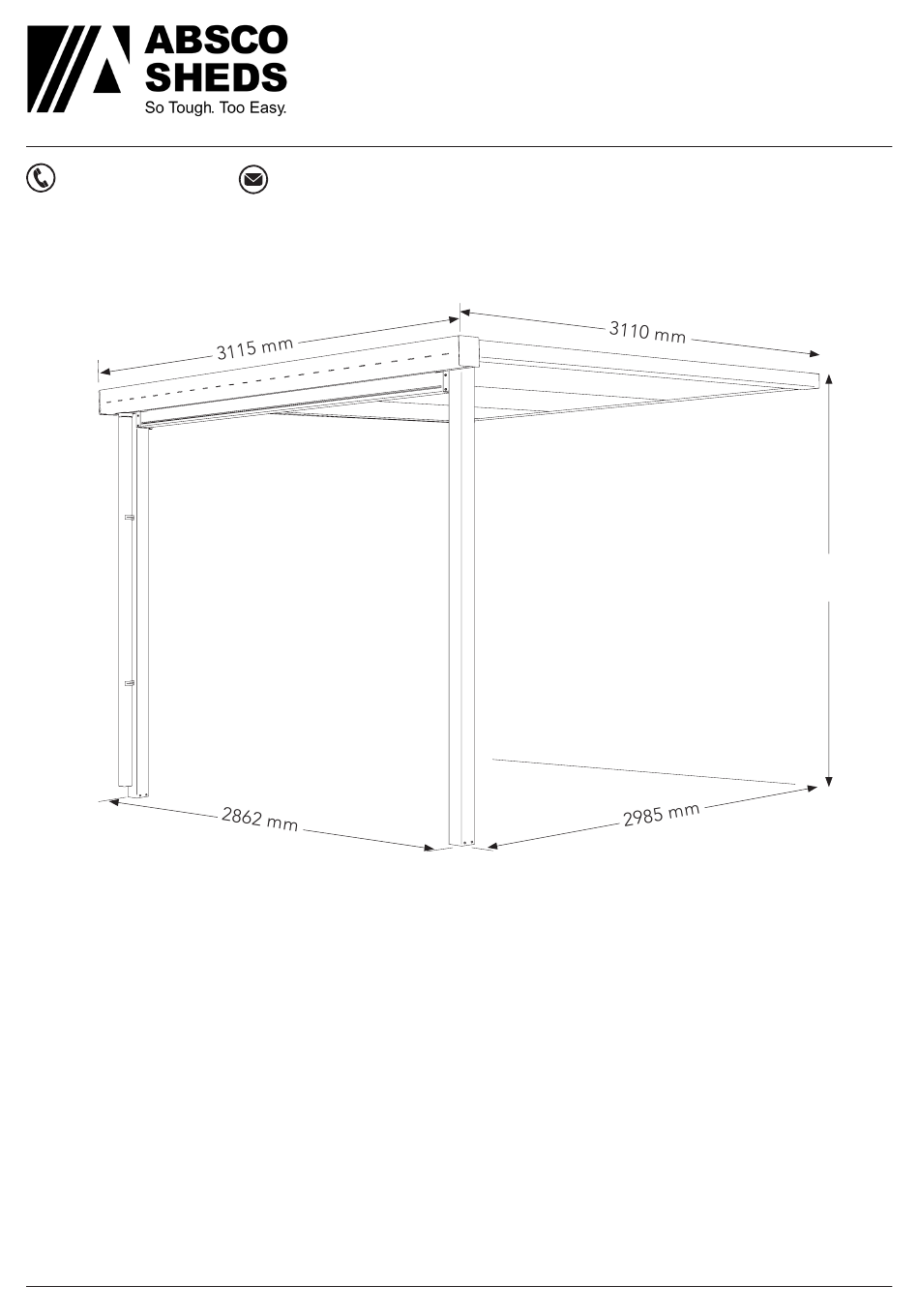

ABSCO SIGNATURE PATIO
MODEL: ADPATIO3030
3.11m W x 3.11m D x up to 3.18m H
admin@absco.com.au
www.abscosheds.com.au
Model: ADPATIO3030
Trim posts to suit
existing structure.
NOTE 3 - The existing structure is assumed to
be stable in its own right and capable of carrying
the loads imposed by this structure. This must be
checked by a suitably qualified person prior to
construction.
NOTE 4 - Concrete slab must be a minimum of
100mm thick, 20 MPa concrete reinforced with
SL72 mesh and extend for the full area covered by
the structure.
21/09/23
3180 mm
MAX
1.0
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADPATIO3030 and is the answer not in the manual?

Questions and answers

Related Manuals for ABSCO SHEDS ADPATIO3030

Summary of Contents for ABSCO SHEDS ADPATIO3030

  • Page 1 ABSCO SIGNATURE PATIO MODEL: ADPATIO3030 3.11m W x 3.11m D x up to 3.18m H AU: 1800 029 701 admin@absco.com.au N Z: 0800 466 444 www.abscosheds.com.au Trim posts to suit 3180 mm existing structure. For construction in non-cyclonic areas Wind rating: N3 as per AS4055-2021.

  • Page 2: Tools Required

    ABSCO SIGNATURE PATIO MODEL: ADPATIO3030 3.11m W x 3.11m D x up to 3.18m H IMPORTANT INFO - READ BEFORE CONSTRUCTION BEGINS 1. Awnings are typically understanding assembly wear gloves when handling attached to a fascia board methods and associated details.

  • Page 3: Component List

    ABSCO SIGNATURE PATIO MODEL: ADPATIO3030 3.11m W x 3.11m D x up to 3.18m H COMPONENT LIST Check off all components, parts shown are not to scale. 90 x 90 Post Post bracket Insulated panel Beam QTY CHECK QTY CHECK...
  • Page 4 ABSCO SIGNATURE PATIO MODEL: ADPATIO3030 3.11m W x 3.11m D x up to 3.18m H RECEIVER CHANNEL 0. Refer to points 1 to 3 on page 2 before beginning this step. 1. Mount the receiver channel TR38 to the existing structure using the correct fixing method below.
  • Page 5 ABSCO SIGNATURE PATIO MODEL: ADPATIO3030 3.11m W x 3.11m D x up to 3.18m H RECEIVER CHANNEL Existing structure Mark out the anchoring position for the posts as shown. Receiver channel 2939 Anchoring positions 2771 CRIT Place the two post bracket BK4 centred over ANCHORING these marks.
  • Page 6 ABSCO SIGNATURE PATIO MODEL: ADPATIO3030 3.11m W x 3.11m D x up to 3.18m H POSTS 1. Now work out the height of the posts for the Offcut standard 2 degree fall. Take a measurement from foundation up to the underside of the mounted receiver channel, let’s...
  • Page 7 ABSCO SIGNATURE PATIO MODEL: ADPATIO3030 3.11m W x 3.11m D x up to 3.18m H POSTS 6. Take the left post and place over the anchored post bracket. Make sure the post is orientated so the top bracket is as shown.
  • Page 8 ABSCO SIGNATURE PATIO MODEL: ADPATIO3030 3.11m W x 3.11m D x up to 3.18m H FITTING THE SHURELOCK BEAM 1. Remove the protective plastic coating from the outside of the beam. 2. Safely lift and place a SB1 beam inside the post brackets BK3 as shown.

  • Page 9: Roof Panel

    ABSCO SIGNATURE PATIO MODEL: ADPATIO3030 3.11m W x 3.11m D x up to 3.18m H ROOF PANEL The end with ‘top skin’ overhang & sticker must go to the front. Prepare the AD1 panels using a tool before The other end goes into the receiver channel and inserting into receiver channel.
  • Page 10 ABSCO SIGNATURE PATIO MODEL: ADPATIO3030 3.11m W x 3.11m D x up to 3.18m H ROOF PANELS 5. Safely place and mate the next AD1 panel. Please note the bottom skin male and female features. B. Press here A. Overlap rib Fixed panel ‘Bottom skin’...
  • Page 11 ABSCO SIGNATURE PATIO MODEL: ADPATIO3030 3.11m W x 3.11m D x up to 3.18m H ATTACH Z FLASHING 9. Trim the Z flashing TR35 to match the overall panel width, flush with the outermost edges. 10. Carefully remove the tek 14 x 125 mm...
  • Page 12 ABSCO SIGNATURE PATIO MODEL: ADPATIO3030 3.11m W x 3.11m D x up to 3.18m H SIDE FLASHING RIGHT UNDERSIDE VIEW - beam not shown. 0. TR36 flashing may overhang roof panel at the front and we’ll need to trim to make the gutter fit later.
  • Page 13 ABSCO SIGNATURE PATIO MODEL: ADPATIO3030 3.11m W x 3.11m D x up to 3.18m H GUTTERING 1. Take a gutter end stop RWG25 and test fit it over an end of the gutter. Mark off the following. A. Midpoint along the top B.
  • Page 14 ABSCO SIGNATURE PATIO MODEL: ADPATIO3030 3.11m W x 3.11m D x up to 3.18m H GUTTERING FRONT VIEW - NOTE: Fall to left for illustrative purposes only. 6. The gutter needs fall to drive water to a specific end. At the end you’d like the downpipe, mark the underside of the gutter onto the beam.
  • Page 15 ABSCO SIGNATURE PATIO MODEL: ADPATIO3030 3.11m W x 3.11m D x up to 3.18m H DOWNPIPE NOTE: The method shown is to mount a simple full height straight downpipe RWG21. An 80 to 90 mm adapter RWG29 is supplied if you wish to join into existing system instead.
  • Page 16 ABSCO SIGNATURE PATIO MODEL: ADPATIO3030 3.11m W x 3.11m D x up to 3.18m H Referenced Standards Information in this manual has been designed in accordance with the following Australian and New Zealand Standards. – National Construction Code of Australia 2022 –...
  • Page 17 15 Year Warranty Statement 1. DEFINITIONS 3. WARRANTY CLAIM PROCEDURE In this document, capitalised terms have the following meaning: 3.1. If, during the Warranty Period, You believe the Product has a Defect, “ABSCO” means John Scholtes Investments (No. 1) Pty Ltd trading You must comply with the procedure set out in this clause 3.
  • Page 18 replacement of the Product under this warranty. 4. WARRANTY LIMITATIONS / EXCLUSIONS 4.5. To the extent permitted by law and notwithstanding any other 4.1. To the extent permitted by law, this warranty will not apply where: provision contained in this Warranty Statement, where the manufacturer of a the Product has been installed or used for a purpose that is not an component incorporated into the Product by ABSCO: Authorised Purpose;...
