ABSCO SHEDS ADPATIO6030 Manual

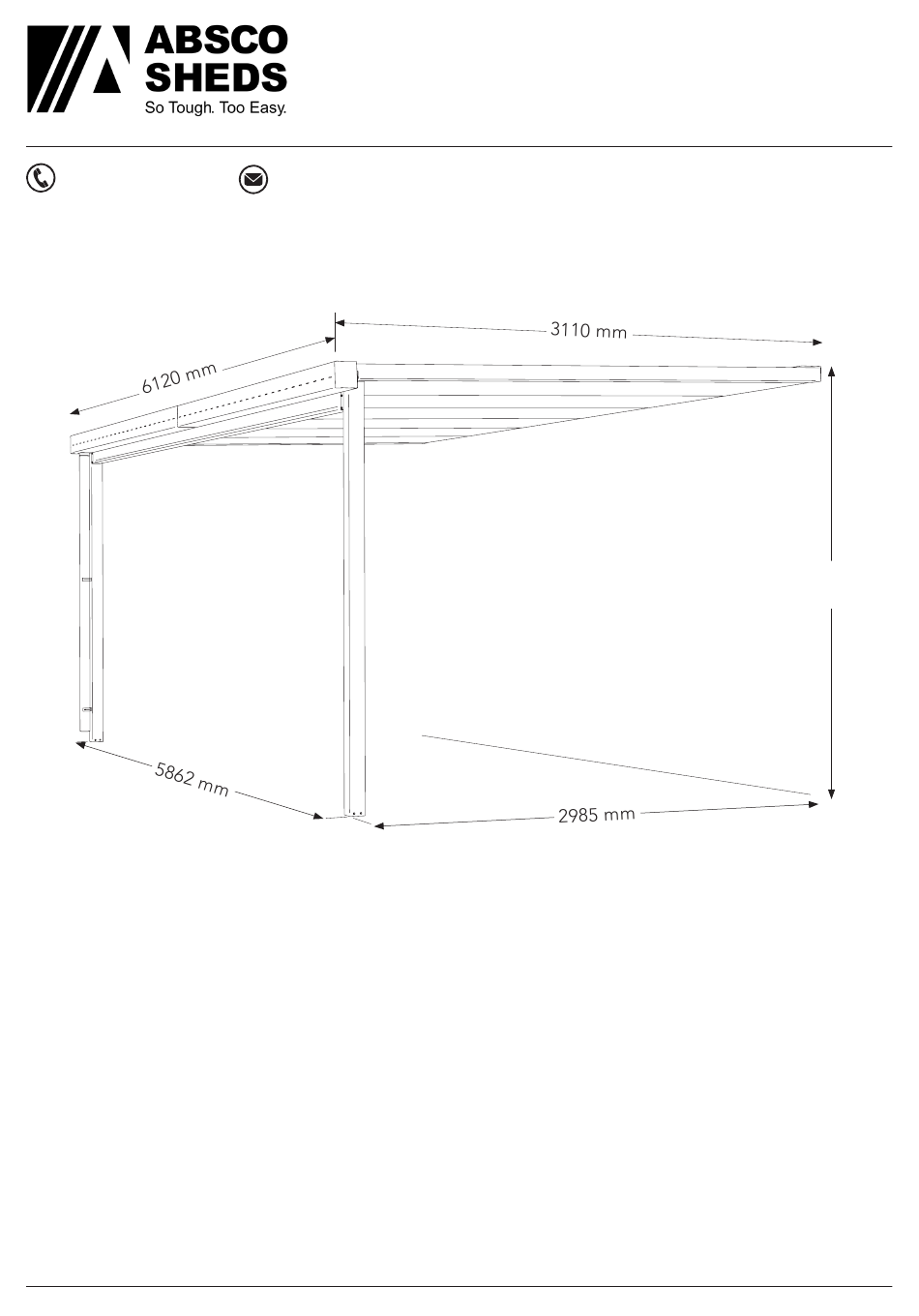

Signature patio 6.12m w x 3.11m d x up to 3.18m h
Hide thumbs

Advertisement

Quick Links

Download this manual
AU: 1800 029 701
N Z: 0800 466 444
For construction in non-cyclonic areas
Wind rating: N3 as per AS4055-2021.
If you require a higher wind rating please contact
us: admin@absco.com.au or 1800 029 701
NOTE 1 - A good building knowledge is required
to complete this structure.
If you are not capable it is recommended you hire
a professional.
NOTE 2 - The existing structure should be
checked for its capacity to support and tie down
this structure prior to construction by a suitably
qualified engineer.
Absco Industries
Assembly Instruction Manual
ABSCO SIGNATURE PATIO
MODEL: ADPATIO6030
6.12m W x 3.11m D x up to 3.18m H
admin@absco.com.au
www.abscosheds.com.au
Model: ADPATIO6030
Trim posts to suit
existing structure.
NOTE 3 - The existing structure is assumed to
be stable in its own right and capable of carrying
the loads imposed by this structure. This must be
checked by a suitably qualified person prior to
construction.
NOTE 4 - Concrete slab must be a minimum of
100mm thick, 20 MPa concrete reinforced with
SL72 mesh and extend for the full area covered by
the structure.
21/09/23
3180 mm
MAX
1.0
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADPATIO6030 and is the answer not in the manual?

Questions and answers

Related Manuals for ABSCO SHEDS ADPATIO6030

Summary of Contents for ABSCO SHEDS ADPATIO6030

  • Page 1 ABSCO SIGNATURE PATIO MODEL: ADPATIO6030 6.12m W x 3.11m D x up to 3.18m H AU: 1800 029 701 admin@absco.com.au N Z: 0800 466 444 www.abscosheds.com.au Trim posts to suit 3180 mm existing structure. For construction in non-cyclonic areas Wind rating: N3 as per AS4055-2021.
  • Page 2 ABSCO SIGNATURE PATIO MODEL: ADPATIO6030 6.12m W x 3.11m D x up to 3.18m H IMPORTANT INFO - READ BEFORE CONSTRUCTION BEGINS 1. Awnings are typically understanding assembly wear gloves when handling attached to a fascia board methods and associated details.
  • Page 3 ABSCO SIGNATURE PATIO MODEL: ADPATIO6030 6.12m W x 3.11m D x up to 3.18m H COMPONENT LIST Check off all components, parts shown are not to scale. 90 x 90 Post Post bracket Insulated panel Beam QTY CHECK QTY CHECK...
  • Page 4 ABSCO SIGNATURE PATIO MODEL: ADPATIO6030 6.12m W x 3.11m D x up to 3.18m H RECEIVER CHANNEL 0. Refer to points 1 to 3 on page 2 before beginning this step. 1. Mount the first receiver channel TR38 to the existing structure using the correct fixing method below.
  • Page 5 ABSCO SIGNATURE PATIO MODEL: ADPATIO6030 6.12m W x 3.11m D x up to 3.18m H RECEIVER CHANNEL 2. Mount the second receiver channel TR38 using the correct fixing method. Make sure it is flush against the first and it’s straight.
  • Page 6 ABSCO SIGNATURE PATIO MODEL: ADPATIO6030 6.12m W x 3.11m D x up to 3.18m H POSTS 1. Now work out the height of the posts for the Offcut standard 2 degree fall. Take a measurement from foundation up to the underside of the mounted receiver channel, let’s...
  • Page 7 ABSCO SIGNATURE PATIO MODEL: ADPATIO6030 6.12m W x 3.11m D x up to 3.18m H POSTS 6. Take the left post and place over the anchored post bracket. Make sure the post is orientated so the top bracket is as shown.
  • Page 8 ABSCO SIGNATURE PATIO MODEL: ADPATIO6030 6.12m W x 3.11m D x up to 3.18m H FITTING THE SHURELOCK BEAM 1. Remove the protective plastic coating from the outside of the beam. 2. Safely lift and place a SB2 beam inside the post brackets BK3 as shown.
  • Page 9 ABSCO SIGNATURE PATIO MODEL: ADPATIO6030 6.12m W x 3.11m D x up to 3.18m H ROOF PANEL The end with ‘top skin’ overhang & sticker must go to the front. Preparing the AD1 panels using a tool before The other end goes into the receiver channel and inserting into receiver channel.
  • Page 10 ABSCO SIGNATURE PATIO MODEL: ADPATIO6030 6.12m W x 3.11m D x up to 3.18m H ROOF PANELS 5. Safely place and mate the next AD1 panel. Please note the bottom skin male and female features. B. Press here A. Overlap rib Fixed panel ‘Bottom skin’...
  • Page 11 ABSCO SIGNATURE PATIO MODEL: ADPATIO6030 6.12m W x 3.11m D x up to 3.18m H ATTACH Z FLASHING 9. Starting at the left side, place a Z flashing TR35 in between the beam and the panel as pictured. Align to be flush with: •...
  • Page 12 ABSCO SIGNATURE PATIO MODEL: ADPATIO6030 6.12m W x 3.11m D x up to 3.18m H SIDE FLASHING RIGHT UNDERSIDE VIEW - beam not shown. 0. TR36 flashing may overhang roof panel at the front and we’ll need to trim to make the gutter fit later.
  • Page 13 ABSCO SIGNATURE PATIO MODEL: ADPATIO6030 6.12m W x 3.11m D x up to 3.18m H GUTTERING 0. Remove protective plastic coating from guttering components. 1. Next join both lengths of gutter RWG24, to match the overall finished width of the structure.
  • Page 14 ABSCO SIGNATURE PATIO MODEL: ADPATIO6030 6.12m W x 3.11m D x up to 3.18m H GUTTERING FRONT VIEW - NOTE: Gutter falls to left for illustrative purposes only. 8. The gutter needs fall to drive water to a specific end. At the end you’d like the downpipe, mark the underside of the gutter onto the rear beam.
  • Page 15 ABSCO SIGNATURE PATIO MODEL: ADPATIO6030 6.12m W x 3.11m D x up to 3.18m H DOWNPIPE NOTE: The method shown is to mount a simple full height straight downpipe RWG21. An 80 to 90 mm adapter RWG29 is supplied if you wish to join into existing system instead.
  • Page 16 ABSCO SIGNATURE PATIO MODEL: ADPATIO6030 6.12m W x 3.11m D x up to 3.18m H Referenced Standards Information in this manual has been designed in accordance with the following Australian and New Zealand Standards. – National Construction Code of Australia 2022 –...
