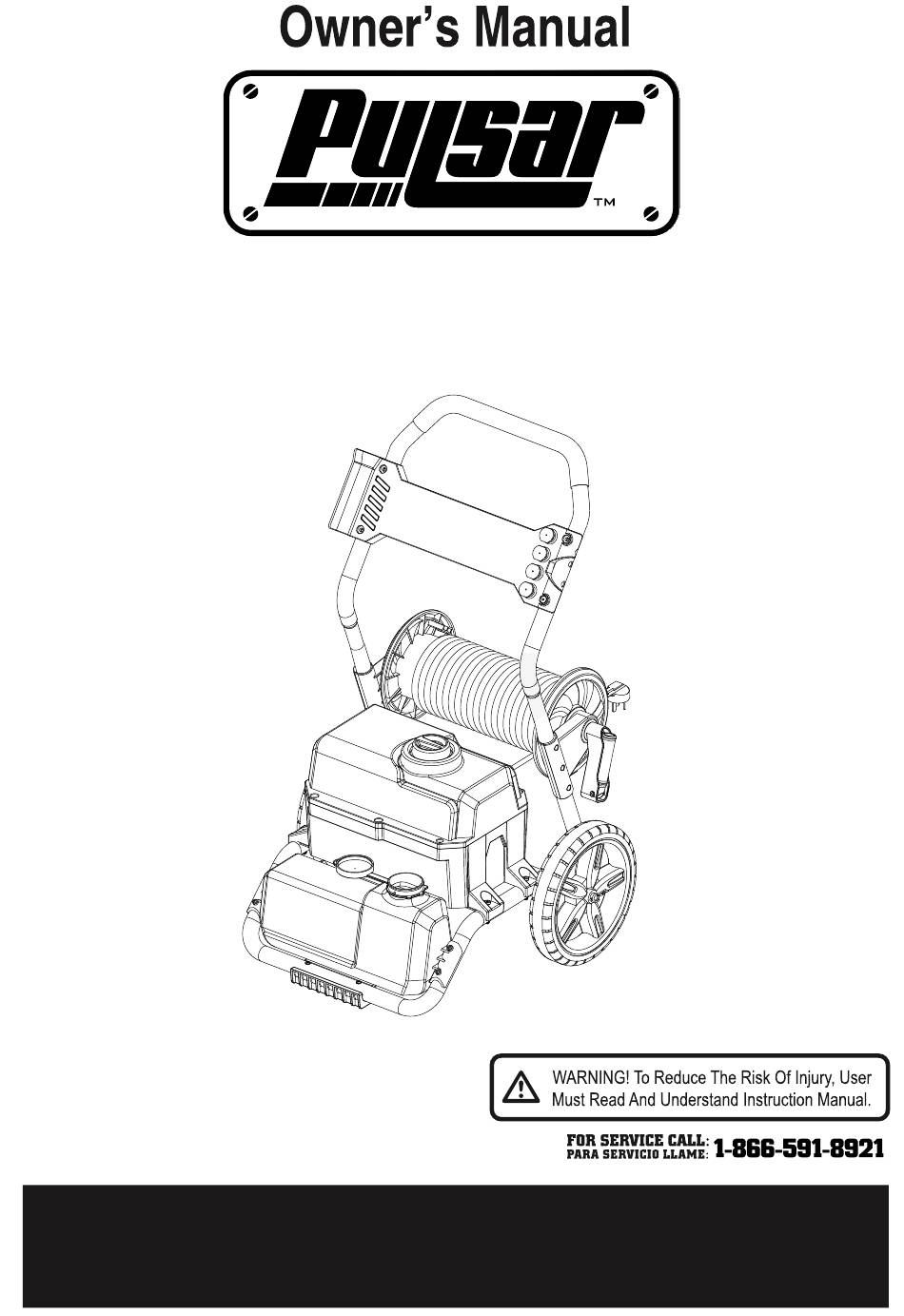

Page 1
If you prefer to register by mail please send a self-addressed, stamped envelope to: Pulsar Products – Warranty Registration 5721 E. Santa Ana ST, Ontario, CA 91763 We will send to you a warranty registration post card by return mail...
Table Of Contents Topic Page # Important Safety Tips, Precautions, Warnings, and Usage Instructions Assembly Instructions Operating Instructions 8-11 Detergents 11-13 Clean-up and Storage 13-15 Cleaning Tips 15-16 Technical Data Troubleshooting Tips Limited Warranty 18- 19 Manufactured By: Pulsar Products, Inc.
Page 3
2000 PSI Pressure Washer GROUND FAULT CIRCUIT INTERRUPTER (GFCI) This pressure washer is provided with a ground fault circuit interrupter (GFCI) built into the plug of the power supply cord. This device provides additional protection from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.
Page 4
2000 PSI Pressure Washer IMPORTANT SAFETY PRECAUTIONS WARNING: When using this product, basic precautions should always be followed, including the following: Read all instructions before using the product. Save all safety instructions. Do not operate the pressure washer when fatigued or under the influence of alcohol or drugs.
Page 5
2000 PSI Pressure Washer Read all instructions included with the mask so you are certain the mask will provide the necessary protection against inhaling harmful vapors. Before starting the pressure washer in cold weather, check all of the parts of the equipment and be sure that ice has not formed.
Page 6
2000 PSI Pressure Washer electrical rating not less than the rating of the product.Examine the extension cord before use. Do not use damaged extension cords! Do not pull on cord to disconnect from the receptacle. Always disconnect by pulling on plug. Keep the cord away from heat and sharp dges.
2000 PSI Pressure Washer ASSEMBLY INSTRUCTIONS Unpacking The Carton After opening the carton, please remove all parts and check them against the following list of components that are included: A. Pressure Washer E. ON/OFF Switch B. Stainless Steel Gun F. Big Wheel For Easy Mobility C.
Page 8
2000 PSI Pressure Washer Step 1 Align handle frame with the lower frame and insert tubes until you here a click. Make sure the handle portion of the pressure washer locks into place with the lower frame. Step 2 Secure the stainless steel wand to the pressure gun. Step 3 Insert the high pressure hose to the the gun and tighten to secure it.
2000 PSI Pressure Washer Step 4 Remove the plastic cap on the garden hose connector which is inserted onto the male fitting on the pressure washer before shipping. This plastic cap can be discarded once removed. Attach the garden hose with connector screw on the pressure washer.
Page 10
2000 PSI Pressure Washer Connect the high pressure hose to the high pressure outlet fitting. Open the water supply valve completely. Before turning the unit on, press the gun trigger to bleed all the remaining air out of the pump and hose. Start the pressure washer by turning the on/off switch to the on position and squeeze the trigger.
Page 11
2000 PSI Pressure Washer Gun Safety Lock This pressure washer is equipped with a gun trigger safety lock. When not using the pressure washer, use the safety lock to protect from accidentally engaging the high pressure spray. Adjustable Spray Nozzle Equipped with for spray nozzles thiswill allow you to use a variety of spray patterns from a full fan spray to other spray.
2000 PSI Pressure Washer AUTO STOP SYSTEM The pressure was her is fitted with an automatic stop system to protect the motor when in use. When the trigger is released the motor will stop. When the trigger is squeezed the motor will start up again. USING DETERGENTS The pressure washer will dispense detergent only at low pressure.
Page 13
2000 PSI Pressure Washer Step 1 Open the cover of the detergent reservoir by twisting it off. Step 2 Fill the detergent reservoir with any approved liguid detergent. Close the cover. Step 3 Attach the soap spray nozzle. Step 4 To apply the detergent to your work area.
2000 PSI Pressure Washer CLEAN-UP AND STORAGE Shutting Down the Pressure Washer WHEN FINISHED USING THE PRESSURE WASHER,FOLLOW THESE STEPS TO SHUT DOWN THE UNIT: • Turn the pressure washer to the OFF position. Turn off the water supply. • Before disconnecting high-pressure hose connection, point the gun in a •...
Page 15
2000 PSI Pressure Washer Drain the detergent reservoir and flush with running water. • Wipe away any remaining water on all parts and fittings. • Engage the gun safety lock. • Store the pressure washer, parts, and accessories in an •...
2000 PSI Pressure Washer CLEANING TIPS WARNING: ALWAYS TEST THE SPRAY IN AN AREA FREE AND CLEAR OF PEOPLE AND OBJECTS BEFORE YOU AIMING AT THE INTENDED CLEANING SURFACE. Wood and Vinyl Decks Rinse deck and surrounding area with fresh water. If using detergent, fill the detergent reservoir and apply to the area being cleaned at low pressure.
2000 PSI Pressure Washer Cars, Boats, and Motorcycles Rinse the area with fresh water. If using detergent, fill the detergent reservoir and apply to the area being cleaned at low pressure. To achieve the best results, clean one side at a time. Allow the detergent to remain on the surface for a few minutes, but do not let the detergent dry.
2000 PSI Pressure Washer TROUBLESHOOTING TIPS WHEN THE SWITCH IS IN THE “I” POSITION THE MACHINE WILL NOT START PROBABLE CAUSE SOLUTION Electrical socket is faulty Check plug, socket, and fuses Voltage is inadequate Check that the voltage is adequate GFCI trips Reset / Try another outlet Power cord is not plugged in...
90 days from the date of original purchase. Products covered under this warranty include air compressors, air tools, serivce parts, pressure washers and generators. Pulsar Products, Inc. will repair or replace, at Pulsar Products, Inc.’s sole option, products or components which have failed within the warranty period. Service will be scheduled according to the normal work flow and business hours at the service center location, and the availability of replacement parts.
Page 20
• Expendable parts or accessories supplied with the product which are expected to become inoperative or unusable after a resonable period of use. • Merchandise sold by Pulsar Products, Inc. which has been manufactured by and identified as the product of another company, such as gasonline engines. The product manufacturer’s warranty, if any, will apply.
Page 21
MUST HAVE A BACK COVER! DO NOT PRINT THE WORDS HERE!
