- Page 1 FD 1000c1...
-
Page 2: Installation
This may be a toggle switch, a relay, the source unit's remote ouput cable or power antenna trigger cable. Connect the remote turn on cable to the power terminal labeled as REM. Audio System Europe GmbH Bertha-Benz-Str. 9 D-72141 Walddorfhäslach www.gladen.de... -
Page 3: Panel Layout

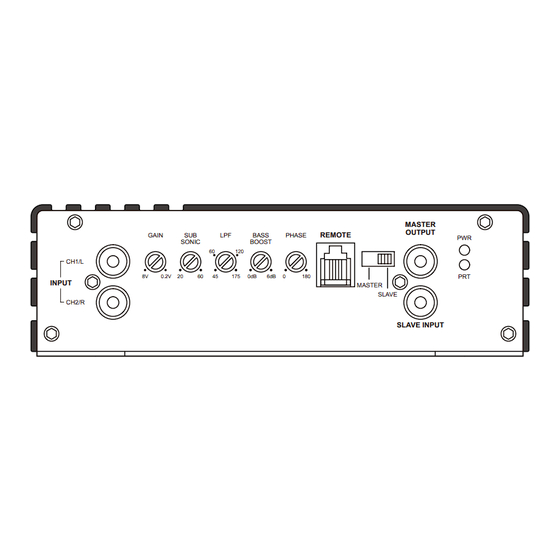

Panel Layout MASTER OUTPUT REMOTE GAIN BASS PHASE SONIC BOOST CH1/L 0.2V INPUT MASTER SLAVE CH2/R SLAVE INPUT 1) INPUT Connect preamp signal cables from head unit to RCA input of the amplifiers. A minimum level input of 0.2V is essential for correct operation. 2) GAIN (8V ~ 0.2V) Matching the output voltage of the head unit’s RCA line-outs to the input section. -
Page 4: Speaker Outputs
+12V(B+), GND, REM MINIMUM +12V POWER INPUT SPEAKER OUTPUTS GND (GROUND CONNECTION) For connection to the chassis’ ground. For optimum performance 0 gauge cable is recommended. REM (REMOTE) Connect to switched +12V from the head unit. +12V / B+ (POWER CONNECTION) For connection to the positive terminal of the battery (+12). -
Page 5: Single Connection
+12V ), GND, REM Connection SINGLE CONNECTION MINIMUM +12V POWER INPUT SPEAKER OUTPUTS Remote GROUND turn on Recommend fuse rating (See the page 8) HEAD UNIT 12V BATTERY DAISY CHAIN (LINKED) CONNECTION MASTER AMPLIFIER MINIMUM +12V POWER INPUT SPEAKER OUTPUTS Remote turn on GROUND... -
Page 6: Speaker Connection
Speaker Connection SINGLE CONNECTION MINIMUM +12V POWER INPUT SPEAKER OUTPUTS MASTER OUTPUT GAIN BASS PHASE REMOTE SONIC BOOST CH1/L 0.2V INPUT Speaker MASTER SLAVE CH2/R SLAVE INPUT Impedance 1~8 ohms HEAD UNIT DAISY CHAIN (LINKED) CONNECTION MINIMUM +12V POWER INPUT SPEAKER OUTPUTS MASTER AMPLIFIER MASTER... -
Page 7: Troubleshooting
Troubleshooting Assure that the Power LED is on, if so please proceed with step # 3, if not, continue with the steps below; 1. Check the in line fuse (s) on the battery’s positive cable, replace if needed. 2. Assure that the Ground is properly attached to the vehichle’s chassis on a clean metal point, tighten or grind the connection point once again. -
Page 8: Specifications
Specifications MODEL CODE FD 1000c1 Continuous Power Output @14.4V Input -RMS power, 4 ohms mono : 300W x 1CH : 550W x 1CH -RMS power, 2 ohms mono : 1000W x 1CH -RMS power, 1 ohm mono -RMS power, 1 ohms linkable/dual mono...
