Page 1: User Guide

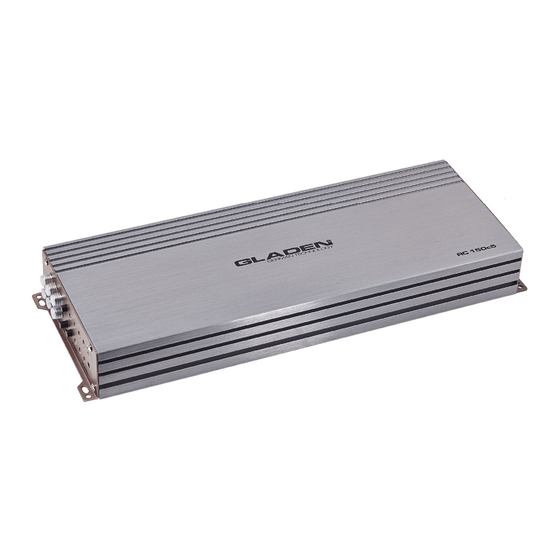

User Guide for amplifier RC 150c5... - Page 2 FEATURE RC 150c5 - High power amplifier CLASS-D + CLASS-AB - MOSFET Power Supply - Stable at 2 ohm - Subsonic filter (HPF) from 10 to 50Hz - Variable switchable Low Pass Filter from 50 to 200 Hz (CH SUB)
-
Page 3: Power Connection
POWER CONNECTION The amplifi er has to be protected by 80A fuse in has the positive 12V supply line. In no case higher, cause the amplifi er does not have its own fuse (RC150c5) Recommended Ampere 80 Amperer (External Type Fuse) to remote Turn-on from HEAD UNIT GROUND (only LOW Level Input) -
Page 4: Speaker Connection
SPEAKER CONNECTION 2-8Ω 2-8Ω 2-8Ω Weiche Weiche 5 CHANNEL MODE Ω Ω Weiche Weiche 2-8Ω 2-8Ω 2-8Ω Weiche Weiche 3 CHANNEL MODE... - Page 5 RCA CONNECTION High Level input with auto sense (auto sense works only on input A) LOW Level Input. 12V remote signal required HEAD UNIT...
- Page 6 L 415mm x W 150mm x H 50mm • Input with low- or high-level signal • High-level with autosense function (no remote signal required) only Channel A • Wired Remote controller RC-RTC (optional ) GLADEN EUROPE GmbH Bertha-Benz-Str. 9 D- 72141 Walddorfhäßlach www.GLADEN.com...
-
Page 7: Troubleshooting
TROUBLESHOOTING This power amplifi er is featured with an effi cient protection system to prevent any damages such as overheating, overloading, short circuit and DC at the loudspeaker output. If the ampli- fi er reports such errors, protection LED will lightup red. Prior to checking the problem(s), fi rst turn all levels of the head unit and then turn it off.
