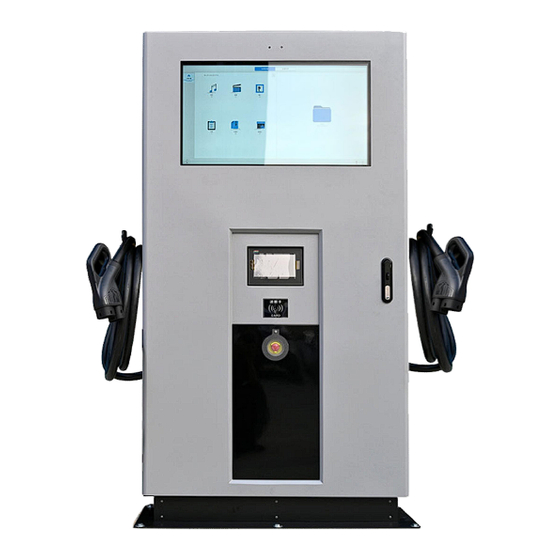

- Page 1 UC series 30-60kw Floor-mounted DC EV charger(Advertising) Product specification Guangzhou Max Power New Energy Technology Co., LTD 25 Guangxing Road, Nansha District, Guangzhou City, Guangdong Province, China www.mxpnet.com...
-
Page 2: Table Of Contents
Catalogue 1.overview ..................................1 2.Safety instructions ..............................2 3.Appearance and Composition........................... 2 4.Detailed technical parameters..........................3-6 5.Operation instruction ............................7-8 6.Electrical installation ............................8-9 7.Check after installation ............................9-10 8.Power on ................................11-13 9.Routine maintenance table ........................... 14 10.Precautions for Use ............................15-16 11.The appendix ..............................17-18... -
Page 3: Overview
1.Overview 1.1 Introduction Floor-mounted DC EV charger Specially designed for electric vehicles, and provide friendly human-machine operation interface, charging, LCD interaction, charging control, metering and billing, payment, remote communication and security protection in one equipment. This series of products can be widely installed and applied in public operation charging stations, such as industrial parking lots, energy storage charging station, urban centralized charging... -
Page 4: Safety Instructions
2.Safety instructions -Charging operation shall follow the operation instructions provided by our company; -Non-professionals are strictly prohibited to open the charging machine cabinet; Do not disassemble or assemble without permission; -When stopping midway, manually click the button to stop and then pull out the charging gun; -It is strictly forbidden to insert or remove the charging gun directly during the charging process, otherwise it will burn out the charging gun and even the charger;... -
Page 5: Detailed Technical Parameters
4.Detailed technical parameters 30kw series ITEM UC30750S UC30750H UC301KS Voltage range AC380V±20% Working frequency 45-65HZ INPUT The power factor ≥0.99 Input current 0-58A 0-48A 0-58A Input cable length Power 30KW GB/T:12V/24V CCS1 CCS2 CHAdeMO:12V Auxiliary power supply Voltage range 200-750Vdc 200-750Vdc 200-1000Vdc OUTPUT... - Page 6 40kw series ITEM UC40750S UC40750H UC401K Voltage range AC380V±20% Working frequency 45-65HZ INPUT The power factor ≥0.99 Input current 0-64A Input cable length Power 40KW GB/T:12V/24V CCS1 CCS2 CHAdeMO:12V Auxiliary power supply Voltage range 200-750Vdc 200-1000Vdc OUTPUT Output current 0-133A 0-100A 0-120A Charger mode...
- Page 7 60kw series ITEM UC60750S UC60750H UC601K Voltage range AC380V±20% Working frequency 45-65HZ INPUT The power factor ≥0.99 Input current 0-116A Input cable length Power 60KW GB/T:12V/24V CCS1 CCS2 CHAdeMO:12V Auxiliary power supply Voltage range 200-750Vdc 200-1000Vdc OUTPUT Output current 0-200A Charger mode Single plug Full power charge/Dual plugs AB equalization Charger plug...
-
Page 8: Operation Instruction
Combination mode of different ports Connector options Dual Ports CCS2 CCS1 CCS1 GB/T CCS2 GB/T CHAdeMO GB/T CCS1 CHAdeMO CHAdeMO CCS2 5.Operation instruction 5.1 Charging station installation The charging equipment has high voltage and high current inside, in order to ensure personal safety, should always comply with the relevant regulations：... - Page 9 Determine the cable according to the following table. Input cable Product mode Cable Postion Specification AC three phases A Plastic-case circuit breaker L1 ≥10mm² AC three phases B Plastic-case circuit breaker L2 ≥10mm² AC three phases C Plastic-case circuit breaker L3 ≥10mm²...
-
Page 10: Electrical Installation
(1) Cement base: Construction of cement base according to the size drawing of the base (see the attached drawing for details)； (2) When the cement base is constructed, it is necessary to consider that after the charging pile is installed, there is no obstacle on the front, the back is 100mm away from the obstacle, and the left and right sides are 1000mm away from the obstacle；... -
Page 11: Check After Installation
L wire and N wire connection postion Please note that the three fire lines are not in phase sequence However, the neutral line and the ground line must not be reversed, otherwise there will be the risk of burning the equipment!! 6.2 SIM card install -Check the signal strength of mobile/telecom/Unicom operators at the installation site, select a suitable operator SIM card and inert it into the SIM slot... -
Page 12: Power On
7.2 Electrical inspection - Check whether all circuit breakers and cable specifications of the charger are correct; - Check that all cable connections are firm and reliable; - Check AC input and power distribution: check whether the color of AC cables is standard, whether the original wiring of the device is tight, and whether the safety labels of the AC power distribution part are complete;... -
Page 13: Routine Maintenance Table
Plug and charge the charging procedure 1.Enter the welcome screen 2.Prompt credit card 3.Swipe your IC card to enter 4. Automatic pre-charge check 5.Charging 6.Swipe card finish charging 9.Routine maintenance table Check the content Check the method Maintenance cycle 1. Observe whether the components, circuit and device structure of the charger are damaged or deformed;... -
Page 14: Precautions For Use
Once every six months to 1. Check the cleanliness of circuit boards and components; once a year (depending on System clean 2. Check the temperature and dust of the internal charging module. Remove the dust content of the the module and clean it if necessary. environment) 1. - Page 15 our company. Customer shall allow company reasonable time to repair faulty equipment. The company reserves the right not to guarantee quality in the following cases: ●The whole machine and parts have exceeded the free warranty period ●Transportation damage ●Incorrect installation, modification, or use ●Outdoor charging in rainy days leads to water inflow damage of charging pile.
- Page 16 Charging station base installation diagram Bottom Flame retardant threading tube Ø60 Mounting holes 6-M12*100 expansion screws PUC flame retardant threading pipe, elbow higher than the top of the base 100mm 6-M12*100 expansion screws L=0.8m...
- Page 17 Outer diameter dimensions drawing(mm) Scale：1：5...
