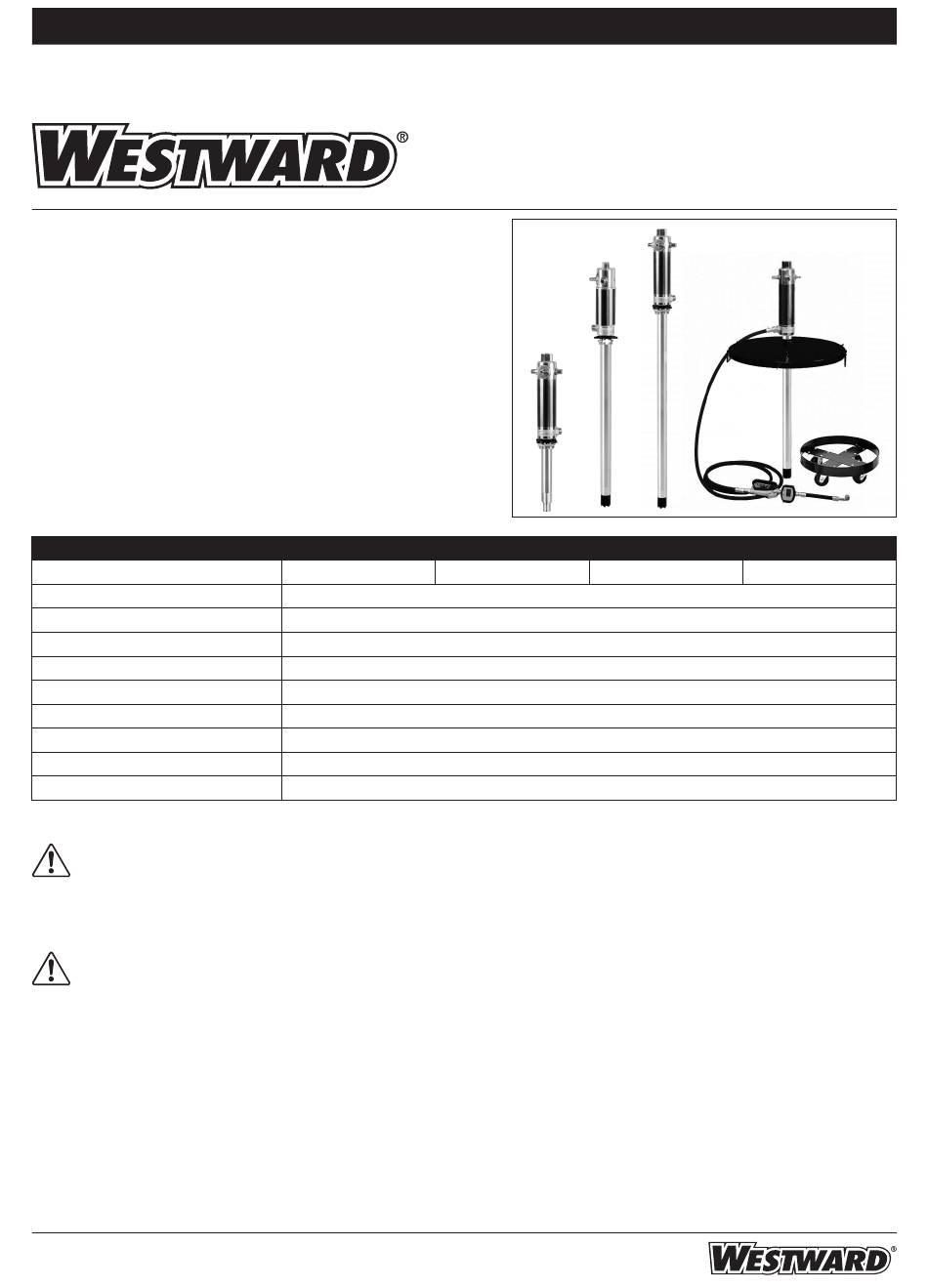

Westward 5TCU2A Operating Instructions And Parts Manual

Operating Instructions and Parts Manual
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect your-
self and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could
result in personal injury and/or damage to product or property. Please retain instructions for future reference.
Description

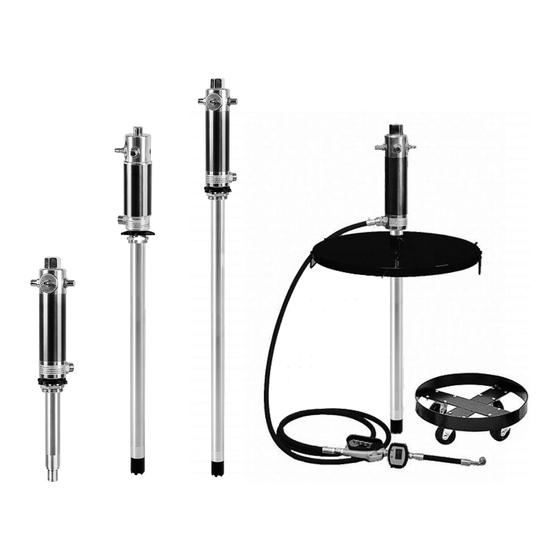

Air Operated Drum Pump: Basic Pump without Discharge Hose.
These air-operated oil pumps are designed for high-flow applications.
Includes the pump and the suction tube.
Oil pumps can be used to transfer lubrication oil, and antifreeze
liquids.
Specifications
Item No.
Suction Tube Length
Operating Pressure (psi/bar)
Max. Fluid Pressure (psi/bar)
Air Consumption (CFM L/min)
Capacity (Gallon/min L/min)
Air Inlet Connection
Oil Delivery Connection
Max. Viscosity Oil Delivered
Temperature Oil Delivered (F/C)
Noise Level (dB)
General Safety Information
WARNING:
Read the following precautions and
instructions before you begin assembly or use. Failure
to comply with these instructions could result in personal injury
or property damage. Keep these instructions in a convenient
location for future reference.
WARNING
Never alter the pump in any way, it will void the warranty
and could cause personal injury and/or property damage.
Oil pumps can be used to transfer lubrication oil, and antifreeze
liquids. This manual is applicable only to the models listed
above, please confirm your pump is included.
When the pump is connected to the compressed air supply:
1. The compressed air must be filtered to avoid dust and
moisture getting into pump.
2. The max. compressed air pressure must not exceed
0.8Mpa/115psi.
IMC100 5TCU2A/5TCU3A/5TCU4A/5TCU7A
Printed in China
5:1 High Volume Oil Pumps
5TCU2A 5TCU3A
270mm 760mm
70-115 / 5-8
580 / 40
8.5 / 240
6.6 / 25
1/4" quick plug / 1/4" NPT female
Male 1/2"
SAE 240
15 - 120ºF / -10 - 50ºC
82
08/2023
Version 0
5TCU2A/5TCU3A/5TCU4A/5TCU7A
5TCU4A
1010mm
3. To deliver oil, pull the trigger on the delivery pistol; delivery
stops when the trigger is released but the whole system
remains under pressure.
4. Position the delivery pistol so that the circuit can't open
accidentally otherwise oil could leak onto the ground.
5. Never point the pistol at people or objects.
6. Always cut off the air supply after use so that oil can't leak out
in case one of the pump's components should break.
7. Use only original spare parts in case the pump has to be
repaired or its components have to be replaced.
8. Empty all the oil from the pump in case it has to be disposed
of.
9. When not in use, turn off compressed air to stop pump.
10. Do not use the pump near open flames. Do not smoke
during operation.
11. Wear oil-proof gloves.
12. Do not throw the oil away. Used oil has to be disposed of
according to environmental regulations.
13. The pumps can be used only to deliver lubricants, used oil or
antifreeze liquids. Do not use the pump for any other liquids.
5TCU7A
760mm
