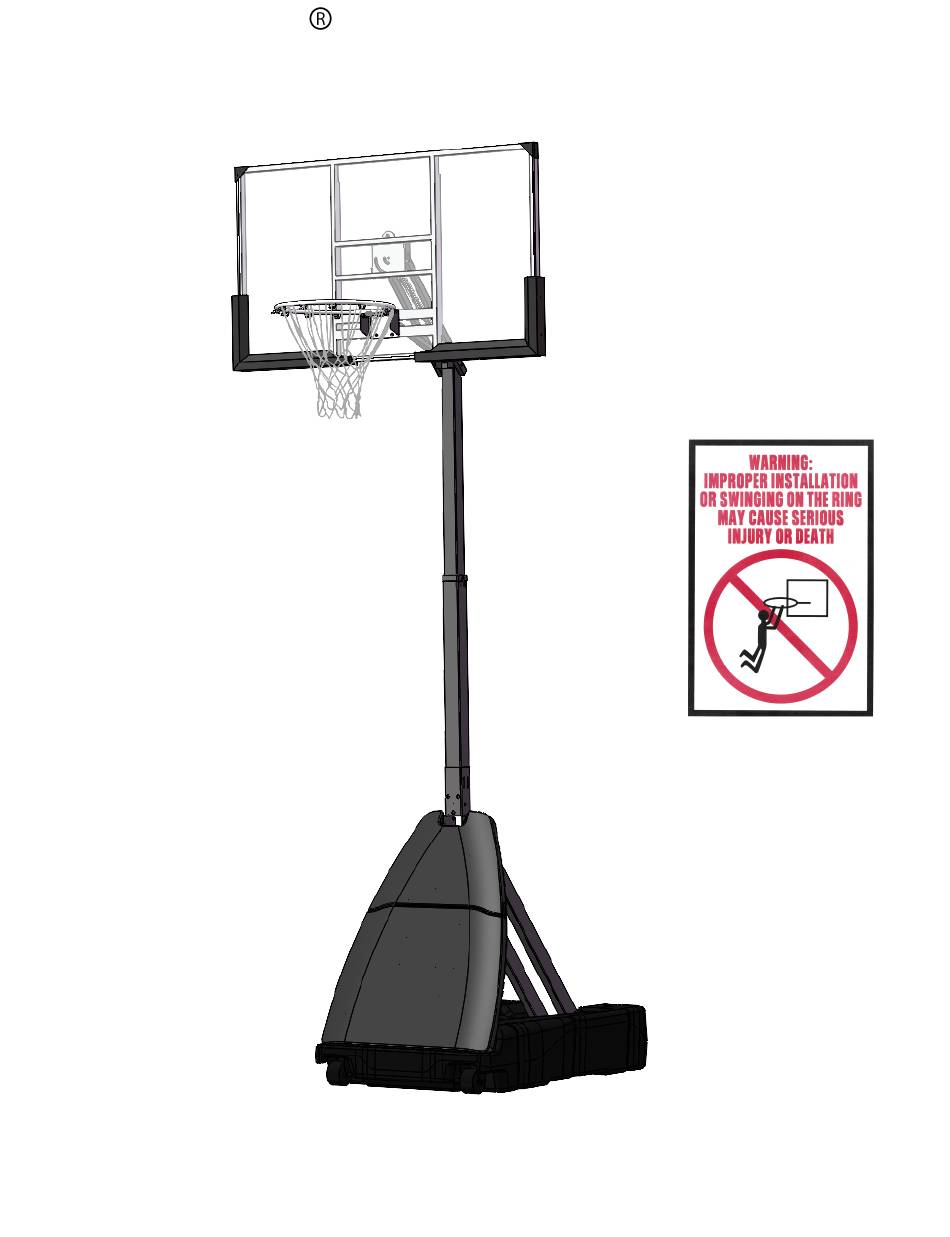

- Page 1 ANBOO INSTRUCTION MANUAL FOLDABLE BASKETBALL STAND A027F ANBOO www.anboo.co Tel:0086-523-86665602 E-mail:Service@anboo.co...
- Page 2 Installation Steps: 1.Remove the outer packaging and remove the bezel.
- Page 3 2.Lift the basketball board and main rod, pull the triangular rod from the bottom, place it on the bolt at the front of the base, and tighten the nut.
- Page 4 3.Turn the basketball board 90° counterclockwise. Lift the hoop and insert the lock stop（1）.
- Page 5 4. Pull the basketball board out backwards and snap the support bar into the corresponding position of the basketball board. Insert the lock pin (2) to prevent the basketball board from turning, Insert the lock pin (3) at the oblique bar and the main rod and tighten the lock bolt on the back of the basketball board.
- Page 6 5. After making sure that all of the above parts are inserted, raise the main rod to an upright position and insert the locking stop pin (4) at the rotating joint.
- Page 7 6. The upper and lower parts of the triangular baffle are connected by 4 bolts, and the triangular baffle is installed on the triangular rod, which is fixed by the three baffles on the back of the triangular plate and the two crossbars of the triangular rod.
- Page 8 Fill the base with water before ascending. Movement is possible by leaning forward with the basketball hoop. Install, fold and move in a safe and open space. ANBOO www.anboo.co Tel:0086-523-86665602...
