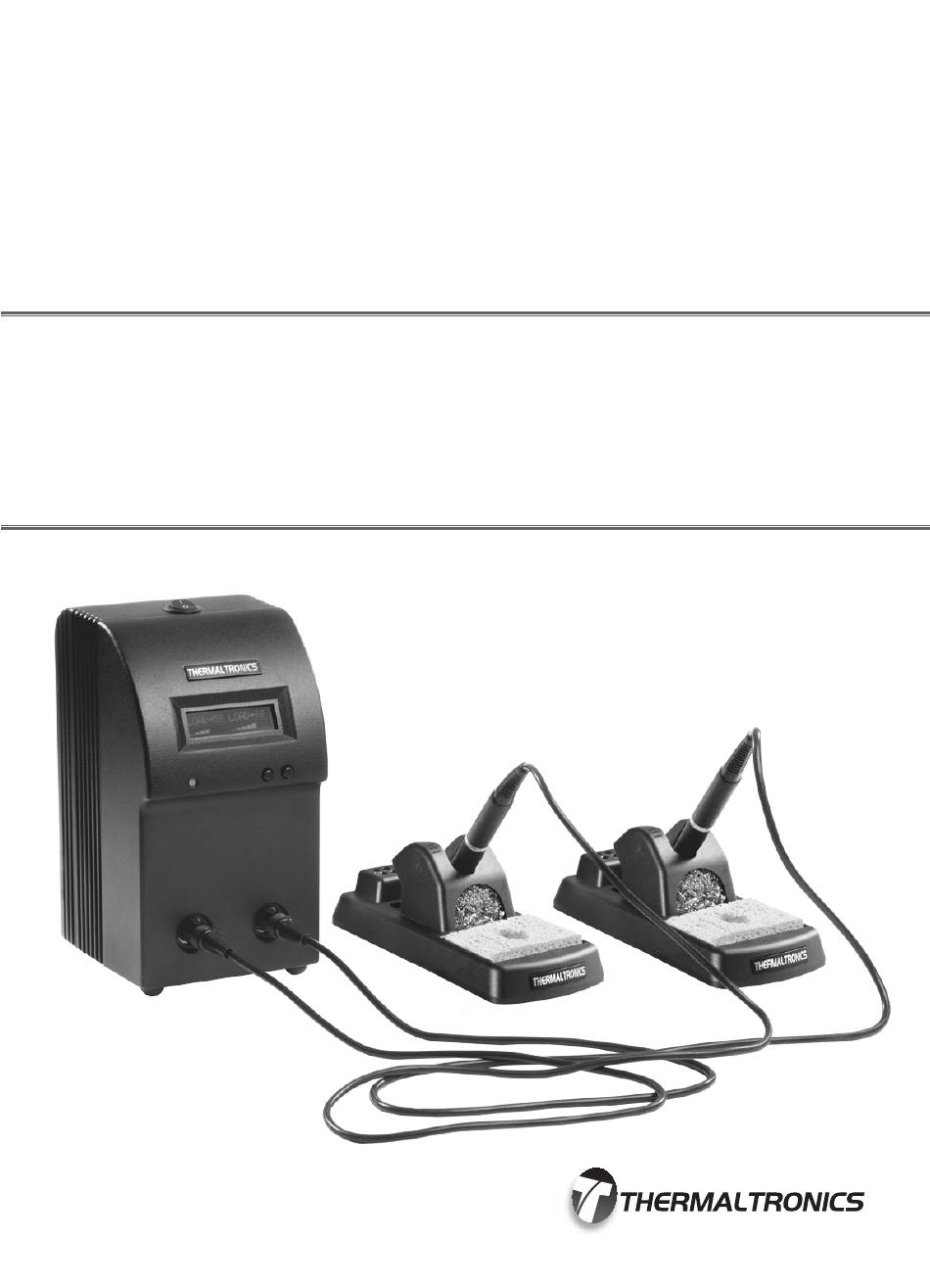

- Page 1 USER MANUAL TMT-2200S SIMULTANEOUS DUAL PORTS SOLDERING SYSTEM www.thermaltronics.com...
- Page 2 CAUTION: To provide continued protection against risk of electric shock, connect to properly ground outlets only. WARNING: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards...
- Page 3 If the product should become defective within the warranty period, Thermaltronics will repair or replace it free of charge at its sole option. Warranty period is from the date of purchase by the original owner. If the date of purchase cannot be substantiated the date of manufacture will be used as the start of the warranty period.
-
Page 4: Tmt-2200S Specifications / Introduction
Congratulations on your purchase of the TMT-2200S simultaneously dual port soldering system. This unit has been tested and inspected by Thermaltronics prior to shipment, and with proper maintenance will give you years of reliable performance. The Thermaltronics TMT-2200S is based on Curie Heat Technology which... -
Page 5: System Features
No calibration or operator training required. • No additional coil assembly costs. Power Supply Diagram: Power Switch LCD Display Power Indicator Toggle Function Button ESD Paint Sleep Button External Fuse Right Output Connector Left Output Connector www.thermaltronics.com support email: support@thermaltronics.com... - Page 6 Disconnected - Tip or Hand piece is not connected. Left Port Right Port Dual Port Sleep Mode - Puts the system to sleep. Error codes are factory set. If a malfunction occurs contact your distributor. TMT-2200S Simultaneous Dual Port Soldering System...
-
Page 7: Soldering System Components
*For use with K Series Tips TMT-2200S-PM COMPONENTS TMT-2200PS Power Supply Soldering Handpiece SHP-PM* (Qty:2) Soldering Handpiece Holder SHH-5 (Qty:2) Tip Removal Pad RMP-1 (Qty:2) Brass Curls BC-1 (Qty:2) Sulphide Free Sponge SPG-1 (Qty:2) *For use with P Series Tips www.thermaltronics.com support email: support@thermaltronics.com... - Page 8 Power Supply DS-HPC-3* Desolder Gun Handpiece Cable SHH-3 Desolder Gun Workstand RMP-1 Tip Removal Pad BC-1 Brass Curls SPG-1 Sulphide Free Sponge DS-AH-1 Desolder Gun Airhose DS-GUN-3 Desolder Gun *For use with KDT Series Tips TMT-2200S Simultaneous Dual Port Soldering System...
-
Page 9: Unpacking/Assembly/Operation
10. The unit should then be ready to use. Temperature Calibration Thermaltronics “Curie Heat Technology” systems do not require temperature calibration. The technology is very precise and is self regulating. The alloy used in the construction of the tip cartridge will maintain the set temperature for its entire life.
