V-TAC VT-82060 Instruction Manual

TECHNICAL DATA
MODEL
SKU
CONTROL MODE
INPUT VOLTAGE
OUTPUT VOLTAGE
OUTPUT POWER
OUTPUT CURRENT
POWER CABLE LENGTH
LOAD POWER
SENSOR SIZE
CUTOUT SIZE
[RECESSED MOUNTING]
BRACKET SIZE
[SURFACE MOUNTING]
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid from the date of purchase. The warranty does not apply
to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against
damage to any surface due to incorrect removal and installation of the product. This product is warranted for
manufacturing defects only.
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
INSTRUCTION MANUAL

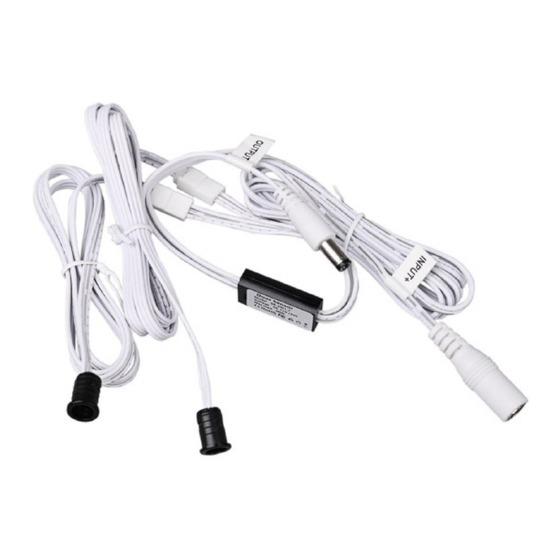

DOUBLE DOOR SENSOR SWITCH
VT-82060
23457
Seperate Control
DC: 12-24V
DC: 12-24V
60W (Max)
5A (Max)
1.5m
12V ≤60W/24V ≤60W
12mmx Ø8mm
Ø8mm
25mmx14mmx11mm
SENSING DISTANCE
FUNCTION
UNIT COLOR
IP RATING
COMPATIBLE
LED STRIP LIGHTS
0-8cm
Open any side of the
door, lights on, both
doors closed lights off
White
IP20
