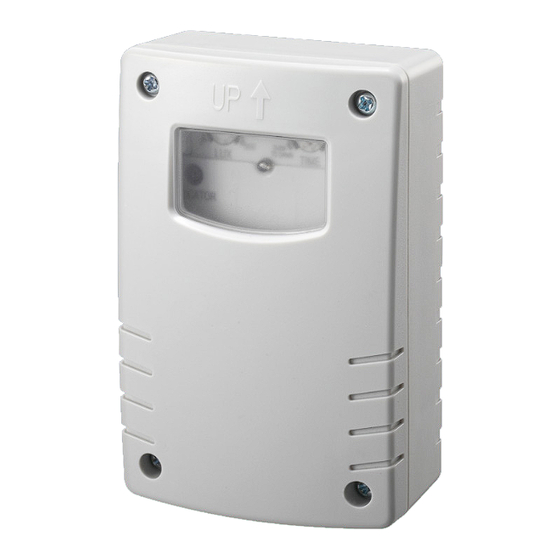

DAY/NIGHT CONTROL SWITCH WITH TIMER
TECHNICAL DATA
MODEL
SKU
INPUT VOLTAGE
RATED CURRENT
AMBIENT LIGHT
BUILT-IN TIMER
WORKING
TEMPERATURE
WORKING
HUMIDITY
DIMENSION
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product.
WARNING
1.
Please make sure to turn off the power before starting
the installation.
2. Installation must be performed by a qualified electrician.
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
INSTRUCTION MANUAL
VT-81007
23423
AC: 220-240V, 50/60 Hz
10A
<3-500LUX (Adjustable)
1,2,3,4,5,6,7,8,9 Hours
-20°C to +40°C
<%93RH
70x108.8 mm
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
Advertisement
Related Manuals for V-TAC VT-81007
Summary of Contents for V-TAC VT-81007
- Page 1 70x108.8 mm INTRODUCTION & WARRANTY Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product.
- Page 2 FUNCTION 1. LUX setting: turn LUX knob anti-clockwise to “3”position, the photocell will only work in the dark (less than 3LUX). If turn clockwise to “500” position, it will work when the ambient light is less than 500LUX. 2. TIME setting: you can set the regular working hours of the photocell as needed. INSTALLATION INSTRUCTIONS •...
- Page 3 TIME SETTINGS The LED indicator inside the sensor will flash to display the preset times as following: 1. 1 hour: flash one time 2. 2 hours: flash two times 3. 3 hours: flash three times 4. 4 hours: flash four times 5.
- Page 4 NOTE • In front of the photocell, there should be no obstruction affecting to accept natural light; • In front of the photocell, there should be no swaying object. • Don’t install the photocell under the light or in the place where the light will be irradiated to the photocell.
