Summary of Contents for HDC KURZWEIL CUP E1

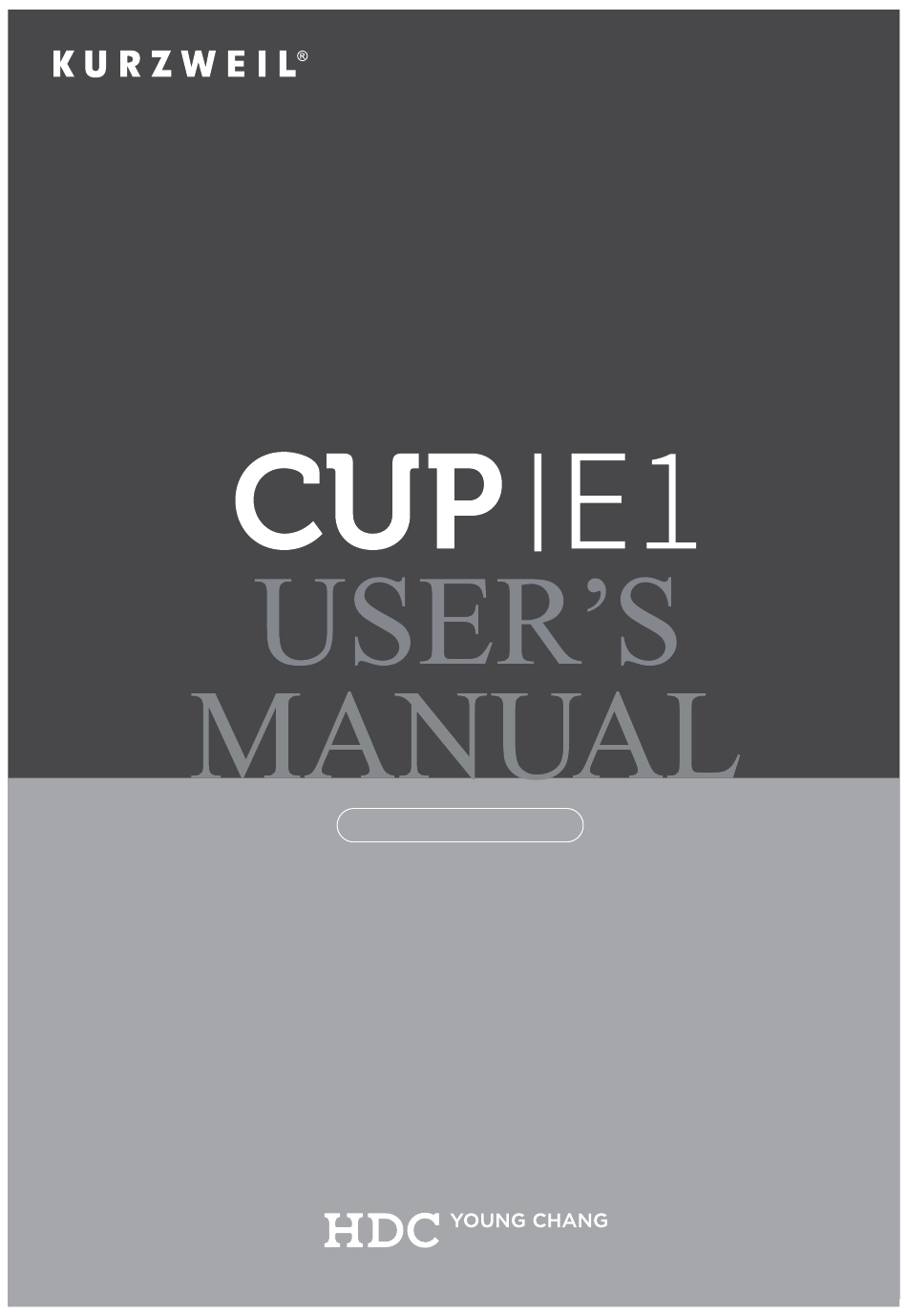

- Page 1 En glish M an u al...
- Page 5 www.facebook.com/kurzweilhome/ www.instagram.com/KurzweilMusic www.threads.net/kurzweilmusic English Manual...
-
Page 6: Table Of Contents
Contents Contents Chapter 1 Introduction …………… 7 Chapter 4 CUP E1 Details ……… 14 - Power Key Features ……………………………………… 7 ………………………………………… 14 - Volume Adjusment …………………………… 14 - Demo Songs …………………………………… 14 Chapter 2 Getting Started ………… 8 - Metronome ……………………………………... -
Page 7: Chapter 1 Introduction
Chapter 1 Introduction Thank you for purchasing the KURZWEIL CUP E1. You are certain to enjoy many hours exploring the CUP E1’s features as well as its beautiful sounds. This manual explains how to make the most of your CUP E1. -
Page 8: Chapter 2 Getting Started
Chapter 2 Getting Started Setting up the CUP E1 Box Contents The components provided when purchasing CUP E1 are as follows. • CUP E1 • DC Power Adapter and AC Power Cord • Warranty Card • Bench If you are missing any of the above, please contact your KURZWEIL dealer. Plugging in the Power The CUP E1's power is supplied by a DC power adapter. -
Page 9: Volume Adjustment
Chapter 2 Getting Started Volume Adjustment Before turning on the CUP E1, please set the volume to its minimum value (all the way to the left). For a generally comfortable level of volume while playing, set the knob to its middle position. Chapter 2 Getting Started... -
Page 10: Chapter 3 Cup E1 Overview
Chapter 3 CUP E1 Overview Control Panel POWER / STANDBY POWER/STANDBY Turns the CUP E1 on or off. VOLUME Adjusts the master volume. DEMO Plays a demo song. METRONOME Activates/deactivates the Metronome. LAYER Combines two different voices across the keyboard, allowing you to play both voices as one. SPLIT Splits the keyboard into two regions, allowing you to play a different voice in each hand. -
Page 11: Chorus
Chapter 3 CUP E1 Overview CHORUS Turns on/off the chorus effect. FUNCTION Used to change various global functions of the CUP E1. TEMPO / [-], [+] Used to alter the values of menu parameters such as tempo, preset voices, etc. VOICE Select preset voices. -
Page 12: I/O Ports
Chapter 3 CUP E1 Overview I/O Ports Pedals (3 Pedals) The CUP E1's 3 pedals work like an acoustic piano. Damper (Right) The Damper pedal applies a sustain effect to each note, much like the damper pedal on an acoustic piano. -
Page 13: Usb
Chapter 3 CUP E1 Overview Connects to a PC, tablet or other devices to make use of the USB MIDI/ AUDIO functions. As such, the CUP E1 can serve as a USB audio card, MIDI controller and/or MIDI sound module. (USB MIDI/ Audio function is supported on Windows/ MacOS. An adapter cable may be required for connecting to a tablet PC.) AUX IN Receives an external audio signal through 1/8"(3.5mm) cable and sends it to CUP E1's speakers. -
Page 14: Chapter 4 Cup E1 Details
Chapter 4 CUP E1 Details POWER/STANDBY Press the [POWER/STANDBY] button to turn the power on. When powered on, the LED lights up and the Auto Power function is enabled to conserve energy. The CUP E1 will automatically turn off after 30 minutes of inactivity. Pressing the [POWER/STANDBY] button while pressing A0 and A#0 turns the Auto Power function off. -
Page 15: Metronome
Chapter 4 CUP E1 Details METRONOME Press the [METRONOME] button to activate the metronome. The current tempo is shown on screen (default: 120 BPM). To change the tempo, use the [-][+] buttons (20~280 BPM). Press the [-] [+] buttons simultaneously to return to the default value. Changing Time Signature To change the time signature of the metronome, press and hold the [METRONOME] button for 2 seconds. -
Page 16: Split Mode
Chapter 4 CUP E1 Details SPLIT Mode Split mode allows you to play two different programs on the keyboard, one in your left hand and another in your right. When Split mode is activated, the [SPLIT] button will light up and the selected voice button will be blinking. -
Page 17: Reverb
Chapter 4 CUP E1 Details REVERB Press the [REVERB] button to turn on/off the reverb effect. It will light when enabled. Use the [-], [+] buttons to select between 8 different reverb types. Hall1 Hall2 Room1 Room2 Room3 Stage1 Stage2 Plate •... -
Page 18: Settings
Chapter 4 CUP E1 Details FUNCTION The Function menu houses various global settings of the CUP E1. Press the [FUNCTION] button to enter Function mode. Refering to the table below, repeatedly press the [FUNCTION] button to advance through the list of settings and select the desired function. Use the the [+], [-] buttons to adjust the value of the selected function. -
Page 19: Transpose
Chapter 4 CUP E1 Details Transpose Use the [-] [+] buttons to adjust the fine tuning of the CUP E1 (-/+ 100ct). Local When working with a DAW, this switch should be set to Off. Doing so severs the CUP E1’s ability to play itself internally (locally) and it will only transmit/receive data via MIDI. -
Page 20: Tempo
Chapter 4 CUP E1 Details TEMPO / [-], [+] To change the voice, setting items, parameters, and/or the speed of the metronome, use the [-], [+] buttons. VOICE Mode The CUP E1 includes 16 preset voices. To select a different voice, use the [-], [+] and/or category buttons. -
Page 21: Recording And Playback (2 Track Recorder)
Chapter 4 CUP E1 Details RECORD The CUP E1 includes a built-in 2 track recorder. To start recording to Track 1, Press the [RECORD] button and the [TRACK 1] button at the same time. Recording will start as soon as you play a key. The [Track 1] button blinks while recording. -
Page 22: Chapter 5 Appendix
Chapter 5 Appendix (MIDI Implementation Chart) Functions Transmitted Rocognized Remarks Default 1-16 1-16 *Up to 3 channels Basic Channels Changed 1-16 1-16 simultaneously Deraura Mode 3 Mode 3 Mode Messages Altered ******** 0-127 Note Number True voice 0-127 ******** Note ON Velocity Notes Note OFF Key's... -
Page 23: Assembly Instructions)
Chapter 5 Appendix (Assembly Instructions) Assembly Parts A. Bolt for cabinet connection x 2 CUP E1 B. Bolt for back panel connection (upper) x 2 Back panel C. Bolt for back panel connection (lower) x 4 D. Bolt for pedal box connection x 4 Pedal box E. - Page 24 Chapter 5 Appendix (Assembly Instructions) 2. Assembling the back panel and CUP E1 There are 6 holes for assembly in the back panel. Assemble the bracket attached to the middle of the both legs and the upper left and right side of the back panel using the bolts (B). Check that the 4 holes on the back of the pedal box and the 4 holes on the bottom of the back panel match each other, and then assemble using the bolts (C).
- Page 25 Chapter 5 Appendix (Assembly Instructions) 3. Assembling CUP E1 Use the bolts (A) to secure the bottom of the piano to the stand. (Bottom view) 4. Connecting the cables Bottom of the CUP E1 Power Connect the included adapter to the power connector on the bottom of the CUP E1. Also, connect the cable at the bottom of the pedal box to the pedal connector on the bottom of the CUP E1.
- Page 26 Chapter 5 Appendix (Assembly Instructions) 6. Assembling the chair Chapter 5 Appendix (Assembly Instructions)
-
Page 27: Specifications
Specifications Keys 88 Fully-Weighted Hammer Action Keys (H1 Ivory) Polyphony Voices 16 Preset Voices Recording 2 Track 2 Song Transpose +/- 12ST Tune +/- 100ct Metronome On/Off, Volume level, Time Signature Effects Reverb, Chorus, EQ (Bass, Treble) Demo 16 Channel, USB MIDI and USB Audio Bluetooth BT 5.2 MIDI &... - Page 28 www.facebook.com/kurzweilhome/ www.instagram.com/KurzweilMusic www.threads.net/kurzweilmusic...
