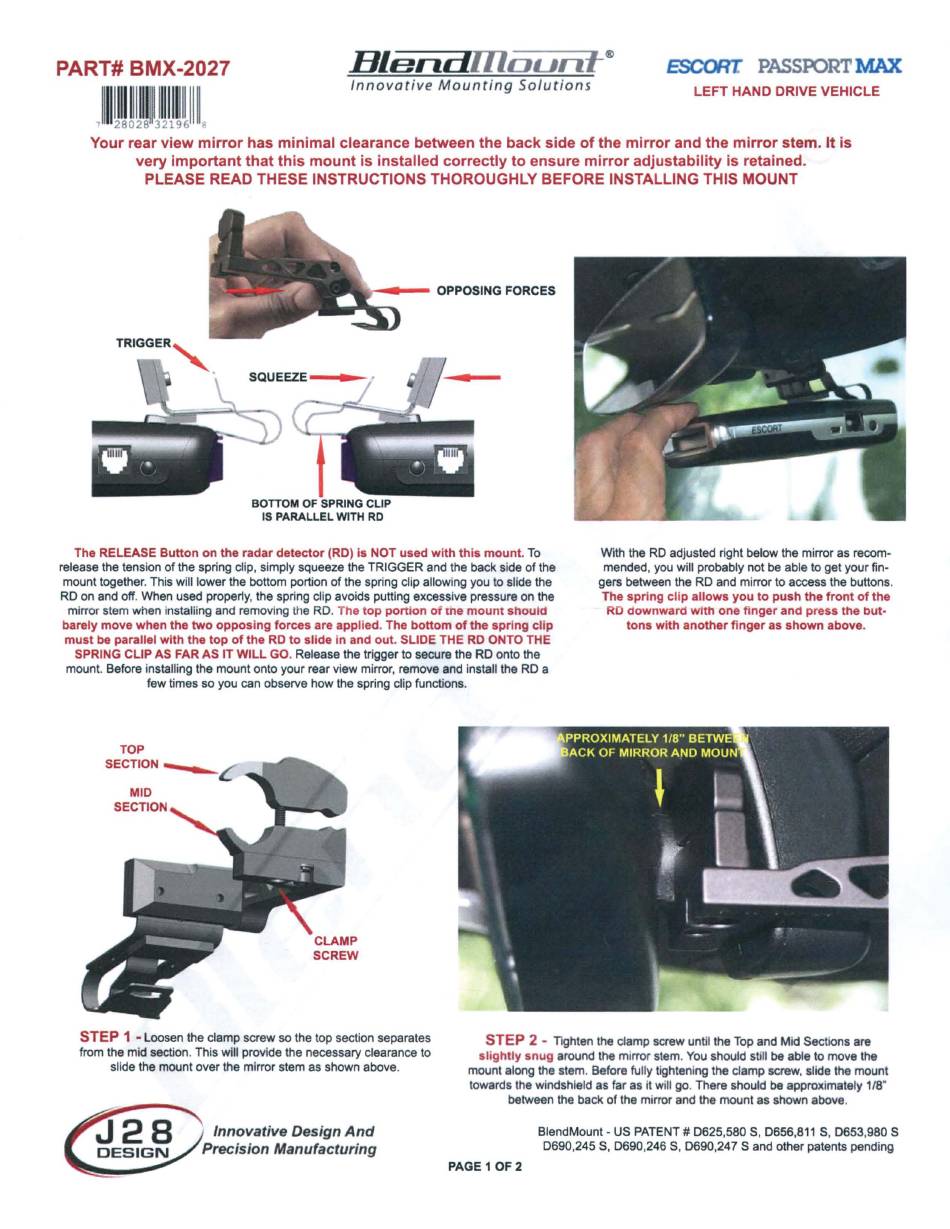

BlendMount BMX-2027 Quick Start Manual

PART# BMX-2027
~ l l l l ~ i ~ l l J ~I J l l l J ~l l l l l l B
Hien
aunt-®
Innovative Mounting Solutions
ESCORr PASSPORT MAX
LEFT HAND DRIVE VEHICLE
Your rear view mirror has minimal clearance between the back side of the mirror and the mirror stem. It is
very important that this mount is installed correctly to ensure mirror adjustability is retained.
PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT
BOTTOM OF SPRING CLIP
IS PARALLEL WITH RD
The RELEASE Button on the radar detector (RD) is NOT used with this mount. To
release the tension of the spring clip, simply squeeze the TRIGGER and the back side of the
mount together. This will lower the bottom portion of the spring clip allowing you to slide the
RD on and off. When used properly, the spring clip avoids putting excessive pressure on the
mirror stem when installing and removing the RD. The top portion of me mount should
barely move when the two opposing forces are applied. The bottom of the spring clip
must be parallel with the top of the RD to slide in and out. SLIDE THE RD ONTO THE
SPRING CLIP AS FAR AS IT WILL GO. Release the trigger to secure the RD onto the
mount. Before installing the mount onto your rear view mirror, remove and install the RD a
few times so you can observe how the spring clip functions.
With the RD adjusted right below the mirror as recom-
mended, you will probably not be able to get your fin-
gers between the RD and mirror to access the buttons.
The spring clip allows you to push the front of the
RD downward with one finger and press the but-
tons with another finger as shown above.
PPROXIMATELY 1/8" BETWE
ACK OF MIRROR AND MOUN
STEP 1 •
Loosen the clamp screw so the top section separates
from the mid section. This will provide the necessary clearance to
slide the mount over the mirror stem as shown above.
STEP 2 -
Tighten the clamp screw until the Top and Mid Sections are
slightly snug around the mirror stem. You should still be able to move the
mount along the stem. Before fully tightening the clamp screw, slide the mount
towards the windshield as far as It will go. There should be approximately 1/8"
between the back of the mirror and the mount as shown above.
Innovative Design And
Precision Manufacturing
PAGE
1 OF 2
BlendMount - US PATENT# D625,580 S, D656,811 S, D653,980 S
D690,245 S, D690,246 S, D690,247 Sand other patents pending
